■Water and sewage treatment pump room, collecting well, biochemical reaction tank, sedimentation tank, etc.
■Food industry winery, granary, food materials filling tanks, etc.
■Electricity, mine mortar pool, coal slurry tank, butter storage tank, stockyard or part of mobile equipment control, etc.
■The control system is used together.
Product Origin:
ChinaShipping Port:
Huangpu portLead Time:
3~5 Working DaysMOQ:
1Overview

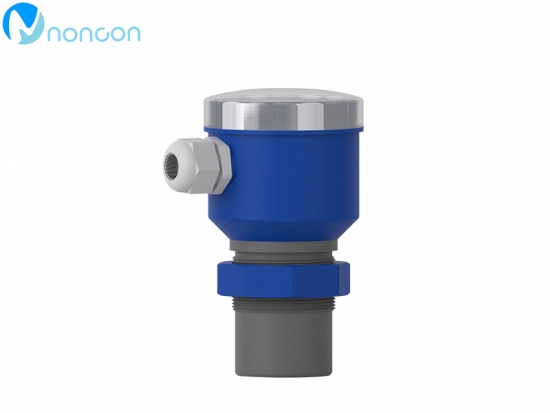

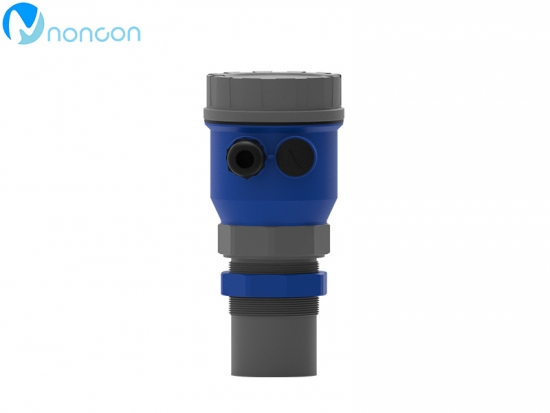

YI2000 universal ultrasonic material (liquid) level meter is developed and manufactured by our company based on years of application experience.It draws on the advantages of many kinds of position meters at home and abroad.It has realized the design concept of full digitalization and humanization, and has perfect functions of material/liquid level measurement and control, data transmission and man-machine communication.It USES engineering plastic ABS waterproof shell, the shell is small and quite strong.The main chip adopts dozens of relevant special integrated circuits such as imported industrial single chip microcomputer, digital temperature compensation and ultra-wide voltage input voltage stabilization.Modular circuit design, military quality multilayer PCB board, close hardware structure, reasonable layout.Other functions (such as bluetooth, GPRS communication, etc.) can be realized by adding modules according to customers' requirements.With strong anti-interference, can arbitrarily set the upper and lower limit nodes and online output regulation, with field display, can choose analog quantity, switching quantity and RS485 output, convenient interface with related facilities.With high reliability, no pollution, stable performance, without contact with industrial media can meet most of the liquid level, material level measurement requirements.It completely solves the problems of winding, blocking, leakage, medium corrosion and inconvenient maintenance caused by the traditional measurement methods such as pressure type, capacitance type and float type.Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.
Produpt features
■This product has built-in GPRS and Wifi to realize the Internet of things
■Backup and restore setup parameters
■It can measure object level, liquid level, volume, weight and so on
■Analog output can be arbitrarily adjusted
■With digital filtering and echo recognition function
■The fixed interference filtering function can be set manually
■Support for custom sound velocity (special material measurement)
■Support custom serial data format (selected when ordering)
■Support for custom mathematical function operations
Technical indicators
Table 1
Performance indicators |
|
Range: |
2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m (selected when ordering) |
Blind area: |
< 0.25-1.5m (different depending on the range) |
Launch Angle: |
less than 10° (different by sensor) |
Minimum display resolution: |
1mm |
Frequency: |
20 KHz~2000KHz |
Accuracy: |
±0.3%F.S |
Temperature compensation: |
Automatic temperature compensation |
Display: |
LED, LCD, OLED (optional) |
Site setting: |
Local key completion |
Output (selected when ordering) |
|
Analog output signal: |
0~20mA;4~20mA load > 300 Ω;0~5V;0~10V;2-wire 4~20mA HART communication; |
Digital output: |
RS485 (support Modbus); |
Wireless transmission: |
Built-in GPRS wireless communication optional SMS data prompt (collection system can be customized) |
Switch output: |
Two-channel NPN/ relay (AC:5A 250V DC:10A 24V) |
Power supply (selected when ordering) |
|
Operating voltage: |
Dc12~24V or AC220V |
Power consumption: |
<1.5W |
Overall dimensions: |
Φ74mm×132mm ×G1 1/2(2m range) |
Φ92mm×198mm×M60(5m-15m range) |
|
Φ92mm×270mm×DN80non-standard flange(20m-30mrange) |
|

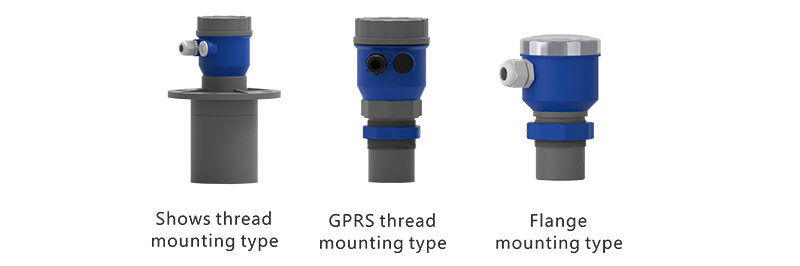

Installation interface: |
G1 1/2 pipe thread or Φ50mm round hole with large ring (2m range) |
M60×2 or Φ61mm round hole with large ring (5m-15m range) |
|
DN80 non-standard flange (20m-30m range) |
|
Shell material: |
L aluminum alloy;ABS engineering plastics, nylon |
Incoming cable: |
User-defined length (built-in terminal) |
Electrical interface: |
M20X1.5 |
Keyboard: |
Three touch A, B, C keys |
Environmental performance |
|
Protection level: |
IP65 (higher protection grade can be customized) |
Explosion-proof grade: |
EXiaII BT4Gb(selected when ordering) |
Working environment: |
Normal temperature/pressure |
Storage humidity: |
≤80%RH without condensation |
