Anticorrosive electromagnetic flowmeter measures and methods

Anticorrosive electromagnetic flowmeter measures and methods

  • December 23,2020.

In the industrial production process due to the need to measure the production of small or very strong corrosive media.Corrosion is the destruction of a metal by chemical action in its environment.All metals and alloys may be corrosion resistant to certain conditions, but are very sensitive to corrosion in others.

No matter whether the anticorrosive electromagnetic flowmeter can measure the corrosive medium, the anticorrosive measure of the flowmeter must be done well.

(1) the brief is to process and the dielectric properties, on the basis of deep understanding, choose the measurement scheme, also achieve the purpose of measuring or to control the production process, to avoid the corrosion resistance of parts, and choose in lighter parts of the subject, and even the kinds of changes are adjustable parameters, the flow rate constant value control system with a liquid level regulation or other suitable variables instead of adjustment, so as to avoid the problem of flow measuring corrosion resistance.

(2) For corrosive conductive liquid, electromagnetic flowmeter is used to measure the lining material of the pipe, among which the corrosion resistance is polytetrafluoroethylene;There are also several kinds of electrode materials, which can meet the needs of most corrosive media.Measuring pipe diameter from a few millimeters to 3m, a variety of specifications complete, can meet the needs of a variety of measuring range;If the fluid temperature is also within the permissible range, then it is an ideal choice.But if the fluid does not conduct electricity, anticorrosive electromagnetic flowmeter is powerless.

(3) Regularly replace the instrument corrosive medium of metal corrosion is a variety of circumstances.Some corrosion speed is very fast, that is, total corrosion;Some corrosion is slight and slow, i.e. local corrosion.When using the instrument, the instrument should be replaced according to the corrosion condition and time.Attachment: anticorrosion electrode electromagnetic flowmeter and 籿 in the choice of reference:A, the choice of electrode material

General electrode materials can be divided into the following types:

Stainless steel (0Cr18Ni12Mo2Ti).Suitable for nitric acid, sulfuric acid less than 5% at room temperature, boiling phosphoric acid, formic acid, alkali solution, sulfurous acid, sea water, acetic acid under certain pressure.

2. Hahn alloy B and Hahn alloy C.Can be used for sea water, salt water.

Titanium - suitable for seawater, all kinds of chlorides and chlorinated hydrochloric acid, oxidizing acid (including fuming nitric acid), organic acid, alkali, etc.

4. Tantalum - other chemical media except hydrofluoric acid, fuming sulfuric acid and alkali, including boiling point hydrochloric acid, nitric acid and sulfuric acid < 175℃ can be used.

5. Platinum - can be used for all kinds of acids, bases and salts, but not aqua regia.

Second, the choice of lining material

Another important material choice of electromagnetic flowmeter is how to choose the lining material accurately.It is important to note that the lining material should be selected according to the erodibility, abrasion and temperature of the measured medium.

1. Rubber - with excellent elasticity, high tearing force, good abrasion resistance, resistance to general weak acid and alkali erosion, can measure water, sewage, mud and pulp, etc.

2. Polyurethane - with excellent wear resistance, acid resistance, alkali resistance is poor, can measure the neutral strong wear of coal slurry, mud and pulp.

3. Polytetrafluoroethylene - boiling hydrochloric acid, sulfuric acid, nitric acid, aqua aqua, concentrated alkali and a variety of organic solvents, good wear-resisting function, poor bonding function.

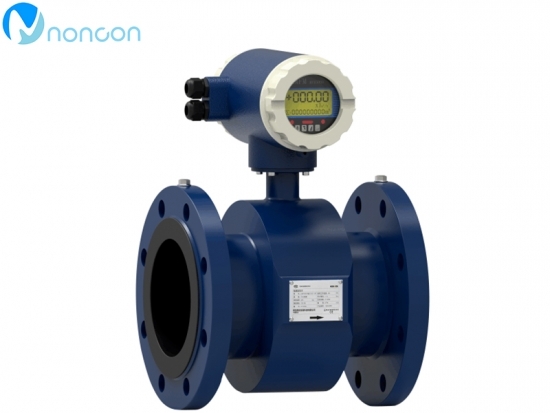

magnetic flowmeter
