The flow profile of the precession vortex flow sensor is similar to the profile of a Venturi tube (as shown in Fig. 1).A group of spiral guide vanes are placed at the inlet side. When the fluid enters the flow sensor, the guide vanes force the fluid to produce violent eddy flow.When the fluid enters the diffusion section, the vortex flow is affected by the backflow and begins to rotate twice, forming the phenomenon of gyroscopic vortex precession.The precession frequency is proportional to the flow rate and is not affected by the physical properties and density of the fluid. If the second rotation precession frequency of the fluid is measured by the detection element, good linearity can be obtained in a wide flow range.The signal is amplified by the preamplifier, filtered and transformed into pulse signals proportional to the flow rate, and then sent to the microprocessor for integration processing together with the temperature and pressure detection signals, and the measurement results (instantaneous flow, cumulative flow and temperature and pressure data) are displayed on the LCD screen.

The working principle of

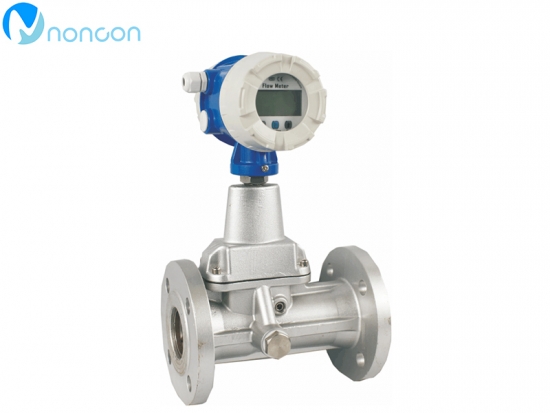

Three, the product characteristics of the precession vortex flowmeter factory:

No mechanical moving parts, not easy to corrosion, stable and reliable, long life, long operation without special maintenance;

Using 16-bit computer chip, high integration, small size, good performance, the whole machine function;

Intelligent flowmeter integrates flow probe, microprocessor, pressure and temperature sensor into one, adopts built-in combination, makes the structure more compact, can directly measure the flow rate, pressure and temperature of the fluid, and automatic real-time tracking compensation and compression factor correction;

The dual detection technology can effectively improve the detection signal intensity and suppress the interference caused by pipeline vibration.

Adopts the domestic intelligent anti-seismic technology, effectively inhibits the interference signal caused by the vibration and pressure fluctuation;

Adopt Chinese dot matrix display screen, display number is many, the reading is intuitive and convenient, can directly display the volume flow under the working state, the volume flow under the standard state, the total volume, as well as the medium pressure, temperature and other parameters;

Using EEPROM technology, easy parameter setting, can be permanently stored, and can save the historical data as long as one year;

The converter can output frequency pulse, 4 ~ 20mA analog signal, and has RS485 interface, can be directly networked with microcomputer, the transmission distance can be up to 1.2km;

Multi-physical quantity parameter alarm output, which can be selected by the user;

The head of the flowmeter can rotate 360 degrees, easy to install and use;

With the company's FM data collector, remote data transmission can be carried out through the Internet or telephone network

Pressure and temperature signal for sensor input mode, strong interchangeability;

The whole machine has low power consumption and can be powered by internal battery or external power supply.
