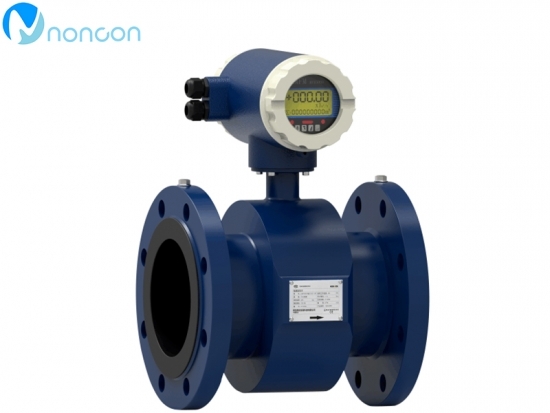

Electromagnetic flowmeter for sewage treatment
Please consult Garnaude meter for electromagnetic flowmeter for sewage treatment. It is mainly used to measure the flow of conductive liquid and slurry in closed pipes.The material of the surface body can be distinguished between carbon steel and stainless steel, and the lining can be distinguished as follows: ordinary rubber lining, high temperature rubber lining, teflon and other measuring caliber can be selected between DN6~2600mm, simply described as follows:

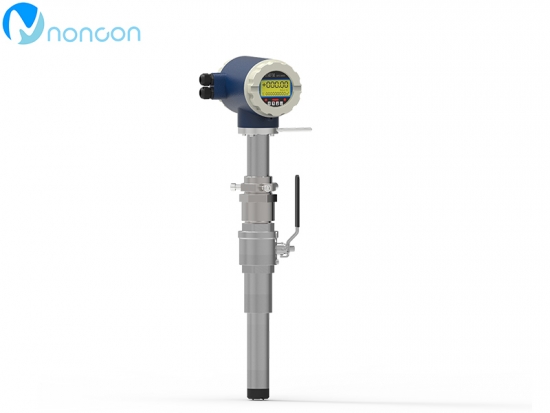

● nominal size DN(mm) 6-2600 note: insertion scope: >DN250
● Lining distinction: ordinary rubber lining, high temperature rubber lining, teflon, etc
● Working pressure: 0.6 ~ 4Mpa (other negotiations)
Housing: Aluminum body: Carbon steel or stainless steel optional
● Output: 4~20mA, Rs485, Hart, etc
● Electrode materials: containing 316 stainless steel, titanium (Ti), tantalum (Ta), Hastelloy (H), platinum (Pt)

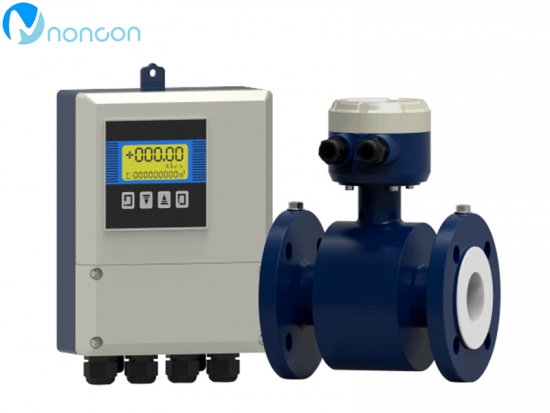

● Structure: standard with one type, split type electromagnetic flow meter optional
● Power supply: standard 220VAC.24 dc (optional)
● Connection: flange connection, optional or custom thread and other ways
● Ambient temperature: room temperature
● Non-standard requirements can be negotiated
