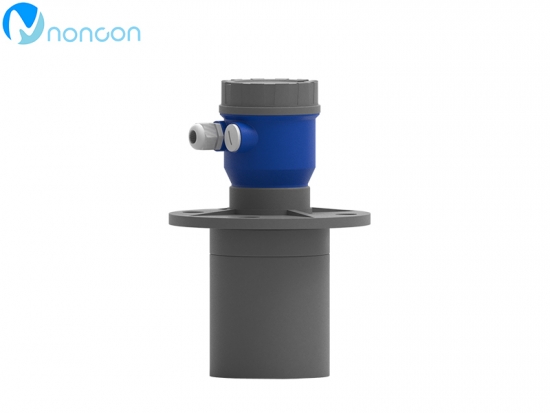

Ultrasonic level meter vertical installed on the surface of the liquid, it is an ultrasonic pulse to liquid level, over a period of time, ultrasonic level meter sensor to receive back from liquid surface reflection signal, signal through transmitter circuit selection and processing, according to the transmitting and receiving ultrasonic time, ultrasonic level meter distance to calculate the liquid level to the sensor.Thanks to the advanced microprocessor and the unique EchoDiscovery echo processing technology, ultrasonic level meters can be used in a variety of complex conditions.The integrated ultrasonic liquid level gauge refers to the ultrasonic liquid level gauge combined with the probe and the shell.

Features of integrated ultrasonic liquid level meter:

● easy to install, easy to start:

● automatic power adjustment, gain control, temperature compensation:

● advanced detection technology, rich software functions to adapt to a variety of complex environment:

● new waveform calculation technology is adopted to improve the measurement accuracy of the instrument:

● with interference echo suppression function to ensure the authenticity of the measured data:

●ETFE or PVDF sensor material, corrosion resistance:

Installation principle of integrated ultrasonic liquid level gauge:

1. The distance from the transmitter surface of the sensor to the low liquid level should be less than the range of the selected instrument.

2. The distance from the transmitter surface of the sensor to the high liquid level should be greater than the blind area of the selected instrument.

3. The transmitting surface of the sensor should be parallel to the liquid surface.

4. The installation position of the sensor should avoid the position where the liquid level fluctuates violently, such as the inlet and outlet.

5. If the wall of the tank or tank is not smooth, the meter shall leave the wall of the tank or tank more than 0.3m.

6. If the distance from the transmitter surface of the sensor to the high liquid level is less than the blind area of the selected instrument, an extension pipe shall be installed with the diameter of the extension pipe

At 120mn, length 0.35m ^ 0.50m, installed vertically, with smooth inner wall, opening of tank should be larger than inner diameter of extension pipe.Or the tube can be directly to the bottom of the tank, the diameter of the tube is greater than 80mm, the tube bottom hole to facilitate the flow of liquid.
