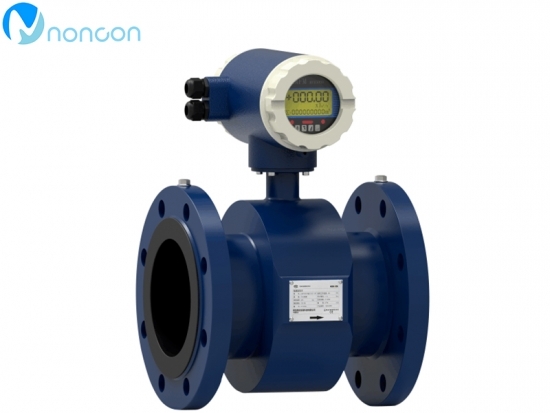

The electromagnetic flowmeter is a kind of inductive instrument that measures the volume flow rate of conductive medium in the tube according to Faraday's law of electromagnetic induction. The embedded technology of single chip microcomputer is adopted to realize digital excitation. Meanwhile, CAN field bus is adopted on the electromagnetic flowmeter.

The electromagnetic flowmeter is specially designed with a Chinese liquid crystal display with backlight width and temperature, which is fully functional, intuitive, easy to operate and use, and can reduce the inconvenience caused by the English menu of other electromagnetic flowmeters.In addition, our exclusive design of 4-6 multi-electrode structure further ensures the measurement accuracy and eliminates the need for grounding ring at any time, thus reducing the trouble of instrument volume and installation and maintenance.

Electromagnetic flowmeter can not only meet the requirements of field display, but also output 4 ~ 20mA current signal for recording, adjustment and control. It has been widely used in chemical industry, environmental protection, metallurgy, medicine, papermaking, water supply and drainage and other industrial technology and management departments.

The measurement accuracy is not affected by the change of fluid density, viscosity, temperature, pressure and conductivity. The sensor's induced voltage signal has a linear relationship with the average velocity, so the measurement accuracy is high.

Measure the open flow parts in the pipe, so there is no additional pressure loss;There are no moving parts in the measuring pipe, so the sensor has a long life.

As the induced voltage signal is formed in the whole space full of magnetic field, which is the average value of the pipeline load surface, the straight pipe segment required by the sensor is relatively short and the length is 5 times of the pipeline diameter.

Only the lining and electrode of the sensor are in contact with the tested liquid. As long as the electrode and lining material are properly selected, corrosion and wear resistance can be achieved.

LDE converter adopts * new single chip microcomputer (MCU) and surface mount technology (SMT), with reliable performance, high precision, low power consumption, stable zero point and convenient parameter setting.Click Chinese to display LCD to display cumulative flow, instantaneous flow, flow rate, flow percentage, etc.

Two-way measuring system can measure forward flow and reverse flow.Special production technology and high quality materials are adopted to ensure the stable performance of the products in a long time.
