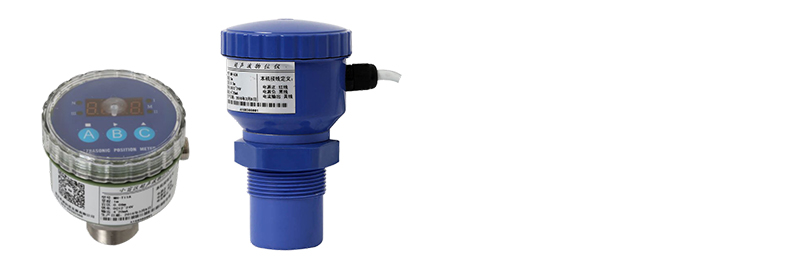

YI2000T High Precision Small Blind Area Ultrasonic Level Meter

It has high reliability, no pollution, stable performance, no contact with industrial media can meet most of the liquid level, material level measurement requirements.Completely solve the pressure type, capacitance type, float type of traditional measurement methods such as winding, jam, leaking, corrosion medium, safeguard the disadvantages such as inconvenience, thus can be widely used in water and sewage pump room, collecting well, biochemical reaction tank, tank and so on electric power, coal mine slurry pool, the slurry pool, butter, tanks, stocking yard or part of a mobile device control wineries, food industry, grain and food materials containing tank control system.

  • Product Origin:

    China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    3~5 Working Days
  • MOQ:

    1
Product Details

Overview

Small Blind Area Ultrasonic Level Meter

YI2000T high precision small blind area ultrasonic material (liquid) level meter, my company is specifically designed for the operation condition of the small blind area, high precision, small space TT&C and developed, at first blind area is less than 0.06 m, the precision can be up to ±1mm ultrasonic ranging products, the shell adopts ABS engineering plastic waterproof case, probe part for PP or stainless steel, shell is small and very strong;Transparent host cover design, convenient observation showed that the main chip of imported industrial microcomputer, digital temperature compensation and ultra wide voltage input voltage and so on dozens of pieces of relevant application-specific integrated circuit to more reliable product performance more stable work, it is featured by strong anti-interference, upper and lower bounds can be set up by any PC software for the output node and online, can choose output analog and switch quantity and RS485, convenient interface and related facilities.


Product features

■Robust and stable sensors for harsh industrial applications;

■Strong anti-interference, can set arbitrary upper and lower limit nodes and online output regulation;

■The transducer has built-in temperature sensor to realize real-time automatic temperature compensation.

■4~20mA current output, optional field bus interface;

■Domestic initiative 0.06m small blind area level meter;


Technical indicators

Technical parameters                                                                                                     Table 1

Performance indicators

Range:

1mm2mm(selected when ordering)

Blind area:

<0.06-1.5m (different depending on the range)

Launch Angle:

less than 6°(different by sensor)

Minimum display resolution:

1mm

Maximum error:

Less than ±1mm, less than ±1.5mm (different depending on the range)

Frequency :

40KHz~430.0KHz (different depending on model specifications)

Temperature compensation:

Automatic temperature compensation

Display:

Four-digit 8-segment LED digital tube (optional LCD display)

Site setting:

Local key completion

Calibration:

Factory calibration, on-site calibration

Output (selected when ordering)

Analog output signal:

020mA420mA load > 300 Ω;05V15V010V110V

Digital output:

RS485 (support Modbus);

Switch output:

Three way NPN

Power supply (selected when ordering)

Operating voltage:

DC1224V

Power consumption:

<1.5W

Physical characteristics

Overall dimensions:

Φ74mm×92mm×M30(stainless steel);Φ74mm×117mm×G1 1/2 (ABS)

Installation method:

M30×1.5G1 1/2

Shell material:

ABS engineering plastics

Transducer:

Stainless steel or ABS engineering plastics

Keyboard:

Three-chip A, B, C keyboard

Outgoing mode:

Instrument standard socket or cable 1.5m (optional any length)

Environmental performance

Protection level:

IP65 (higher protection grade can be customized)

Explosion-proof grade:

EXiaII BT4Gb(selected when ordering)

Working environment:

Normal temperature/pressure

Storage humidity:

80%RH without condensation
