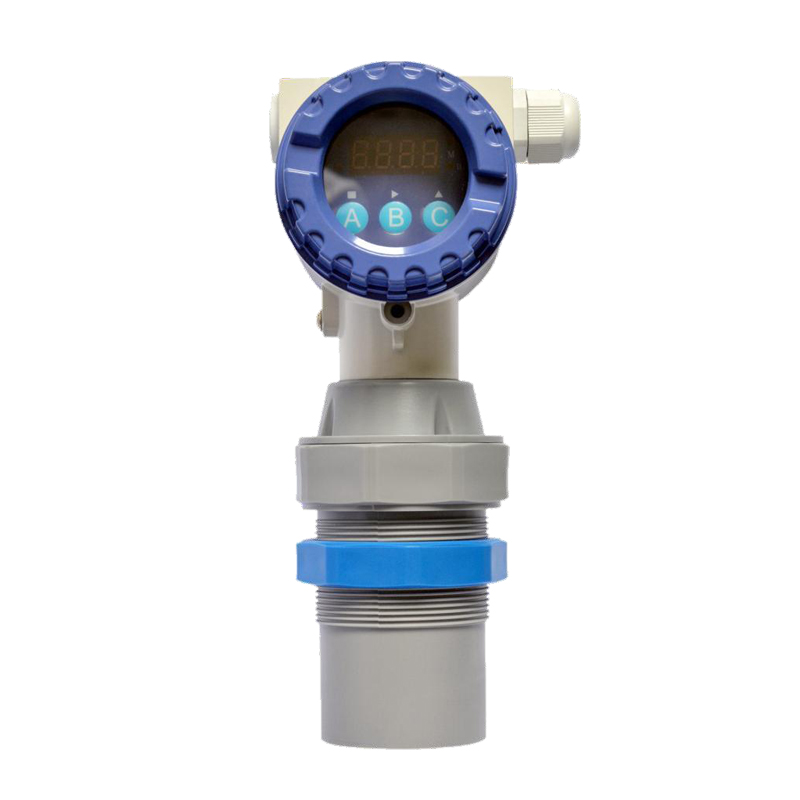

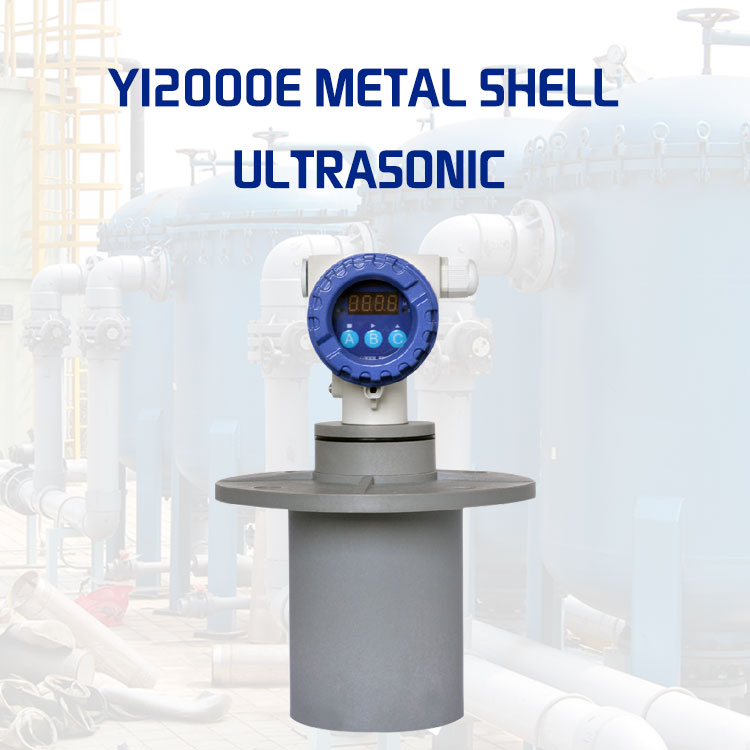

YI2000E metal shell ultrasonic material (liquid) level meter is a general type ultrasonic material level meter developed and manufactured by our company according to years of application experience. It has learned from many advantages of domestic and foreign material level meters and realized the full digitalization and humanized design concept. It has become the high-end product updated by our company.The shell adopts cast aluminum waterproof shell and international common electrical interface.
Product Origin:
ChinaItem NO.:
YI2000EShipping Port:
Huangpu PortColor:
Silver and BlueLead Time:
around 7 daysPayment:
TTMOQ:
1Price:
$452/setPrice Range:
1-5/452$Ⅰ. Overview

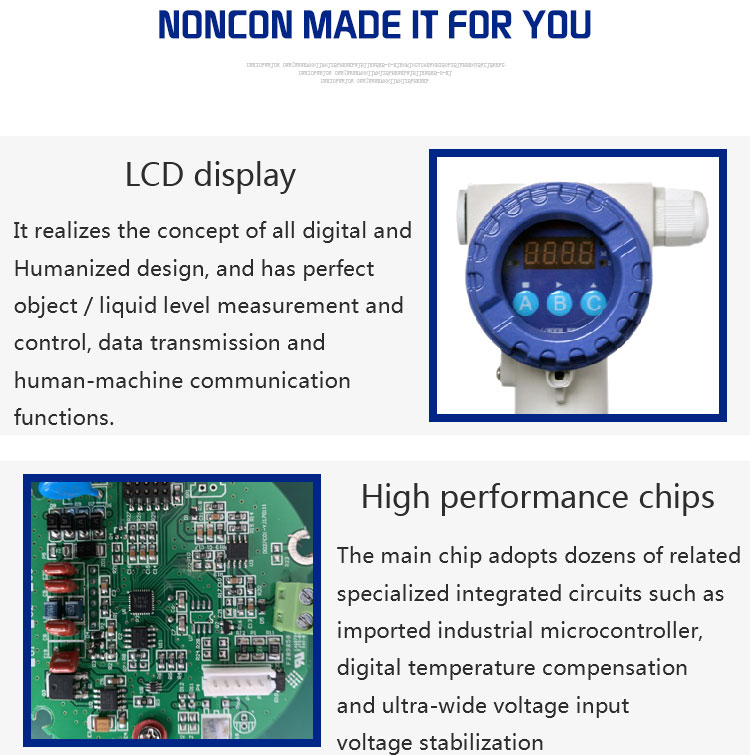

Standard terminal, easy to install;Transparent observation window, more convenient level data observation, has a perfect/liquid level measurement and control, data transmission and human-computer interaction function, main chip imported industrial microcomputer, digital temperature compensation and ultra wide voltage input voltage and so on dozens of pieces of relevant application-specific integrated circuit, is featured by strong anti-interference, nodes can be arbitrary set the upper and lower limits for the output, online, with the scene display, can choose the output analog and switch quantity and RS485 convenient interface and related facilities, it has high reliability, no pollution, stable performance, don't have to contact industrial media can meet the requirements of most of the liquid level, material level measurement, It completely solves the problems of winding, blocking, leakage, medium corrosion and inconvenient maintenance caused by the traditional measurement methods such as pressure type, capacitor type and float type. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.
Ⅱ. Detail Picture
Ⅲ.Product features
Application range
■ Water and sewage treatment pump room, collecting well, biochemical reaction tank,
sedimentation tank, etc
■ Food industry winery, granary, food materials filling tanks, etc
■ Electricity, mine mortar tank, coal slurry tank, butter storage tank, stockyard or part of mobile
equipment control, etc.
Ⅳ.Technical indicators
Performance indicators:
Range: 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m (selected when ordering)
Blind area: < 0.25-1.5m (different depending on the range)
Launch Angle: less than 10° (different by sensor)
Minimum display resolution: 1mm
Frequency: 20 KHz～2000KHz
Accuracy: ±0.3%F.S
Temperature compensation: Automatic temperature compensation
Display: LED, LCD, OLED (optional)
Site setting: Local key completion
Output (selected when ordering)
Analog output signal: 0～20mA;4～20mA load > 300 Ω;0～5V;0～10V;4～20mA HART communication;
Digital output: RS485 (support Modbus);
Wireless transmission: Built-in GPRS wireless communication optional SMS data prompt (collection system can be customized)
Switch output: Two-channel NPN/ relay (AC:5A 250V DC:10A 24V)
Power supply (selected when ordering)
Operating voltage: Dc12～24V or AC220V
Power consumption: <1.5W

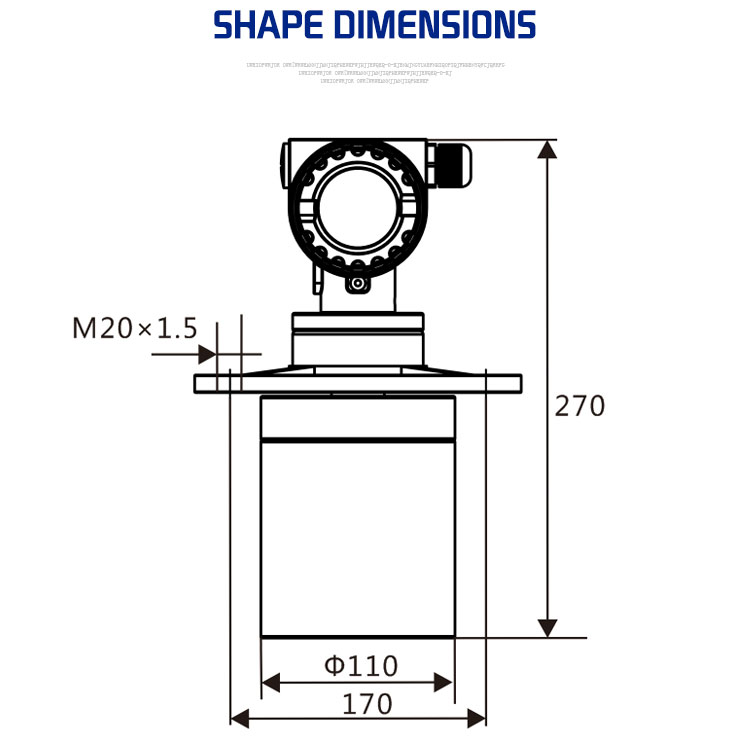

Overall dimensions: Φ74mm×132mm ×G1 1/2（2m range）
Φ92mm×198mm×M60（5m-15m range）
Φ92mm×270mm×DN80non-standard flange（20m-30mrange）
Installation interface: G1 1/2 pipe thread or Φ47mm round hole with large ring (2m
range)
M60×2 or Φ61mm round hole with large ring (5m-15m range)
DN80 non-standard flange (20m-30m range)

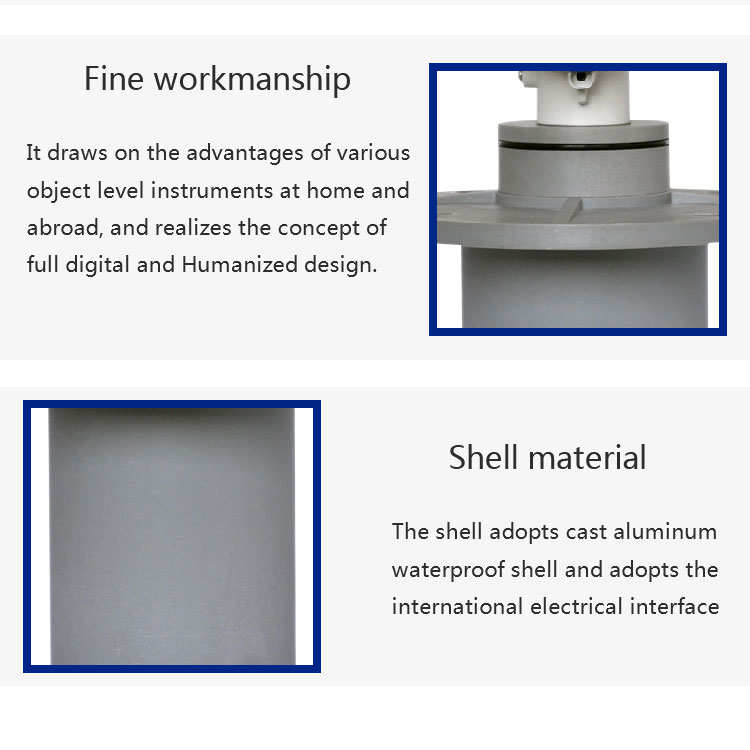

Shell material: Cast aluminum
Incoming cable: User-defined length (built-in terminal)
Electrical interface: M20X1.5
Keyboard: Three touch A, B, C keys
Environmental performance
Protection level: IP65 (higher protection grade can be customized)
Explosion-proof grade: EXiaII BT4Gb(selected when ordering)
Working environment: Normal temperature/pressure
Storage humidity: ≤80%RH without condensation
Thank you for reading. Welcome to text me more details about your demand and parameters such as medium, temperature,
Previous :

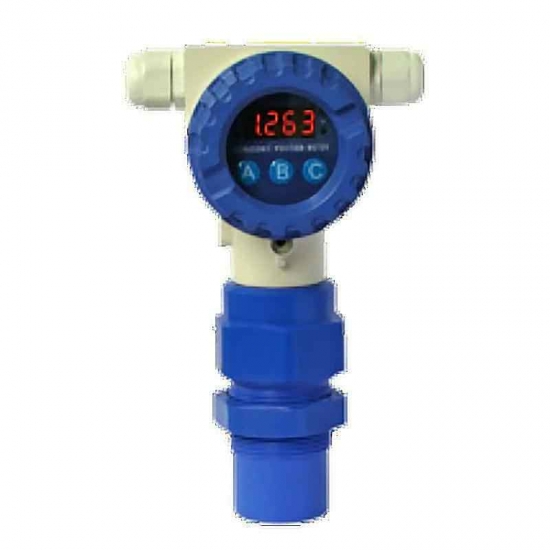

YI 2000S Universal Ultrasonic (Liquid) Level MeterNext :
YI3000 Split-type Ultrasonic Level Meter

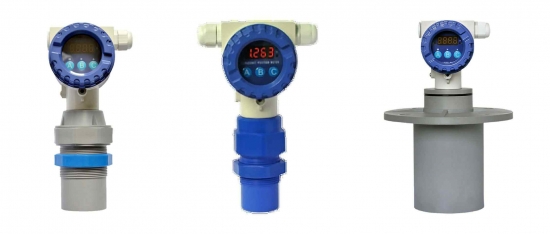

YI ultrasonic liquid level meter and open channel flow meter are widely used in the physical level measurement of petroleum, chemical industry, water treatment, water conservancy, food, grain and other industries. They are safe, clean, high precision, long life, stable and reliable, and easy to install and maintain.
