New Design Ultrasonic Liquid Level Open Channel Flow Meter

Preface

Ultrasonic open channel flow meter is used for measuring the flow rate in fluid floe in a free surface state with natural flow in a non-full tubular open channel. It is composed of ultrasonic level meter, flume meter and flow integrator.

Compared to other pressure type, capacitance type, float type and other traditional measurement methods, Ultrasonic open channel flow meter had absolute advantage that is No-contact the Measure medium. Thus there is no reason for the winding,blockage, leakage, media corrosion, maintenance inconvenience and other shortcomings.

  • Product Origin:

    China
  • Item NO.:

    YI3000
  • Shipping Port:

    Huangpu Port
  • Color:

    Blue + Silver
  • Lead Time:

    5-7 days
  • Payment:

    FOB
  • MOQ:

    1
  • Price:

    $347/Set
  • Market Price:

    $390
  • Price Range:

    5-10/340$
Product Details

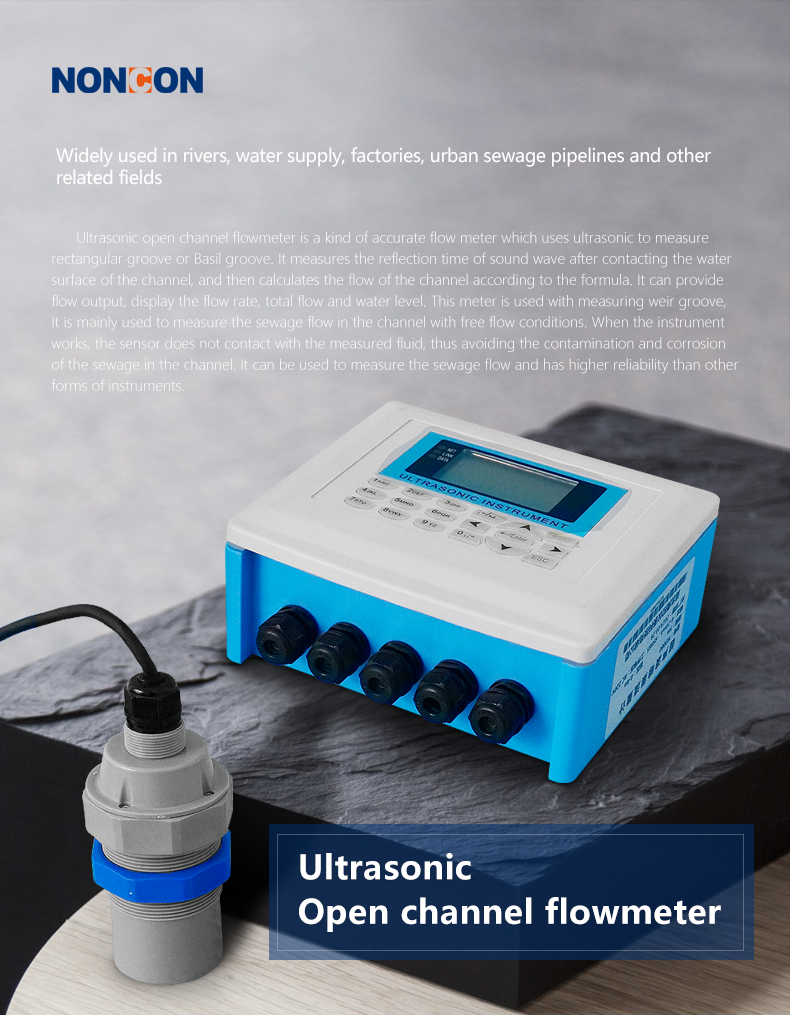

Ultrasonic Open Channel Flow Meter


  • Ultrasonic non-contact measurement
  • Easy installation and positioning
  • Comprehensive instrument control function

Application of Ultrasonic Open Channel Flow Meter


Features:


  1. The meter includes a non-contact ultrasonic level sensor to detect the water level and then calculates the flow rate and total volume. Do not influence the flow rate at all.
  2. Measure level, flow rate and total volume with a single device.
  3. Simple setup for flumes and weirs.
  4. Retain a historical log of all measurements and support the SD card memory.
  5. Easily connect up to SCADA systems with different out put option ( 4-20Ma, Modbus RTU, Hart and Relay).
  6. Full functions, can be selected according to the site application requirements.
  7. Our open change ultrasonic flow meter adopts modular circuit design and military quality level PCB broad which made its hardware reasonable and stable.
  8. Wireless communication is available, support customization and OEM.


NONCON Company Profile & Certificates:


NONCON Company certificates


Nan Kong Instrument is mainly engaged in the development, production, sales and service of high-performance, intelligent instruments and related systems.The products include vortex flow meter, turbine flow meter, electromagnetic flow meter, mass flow meter, metal float flow meter, roots flow meter, ultrasonic flow meter and air energy consumption metering management system, IC card energy metering management system, steam metering management system, air conditioning energy management system, gas metering management system, etc. The company has the complete independent knowledge product to all the R&D products, has obtained 16 utility model patents and 4 product production licenses, explosion-proof licenses, the customer covers the energy conservation, the environmental protection, the municipal engineering, the chemical industry, the nuclear power, the paper-making, the pharmacy, the food beverage and so on industries.After years of development, the company has set up Shanghai branch, Chengdu branch, Wuhan branch and xi 'an branch, and in south China, central China, southwest China and relevant industries have a certain degree of visibility, and occupy a certain market share.


Detail Images:

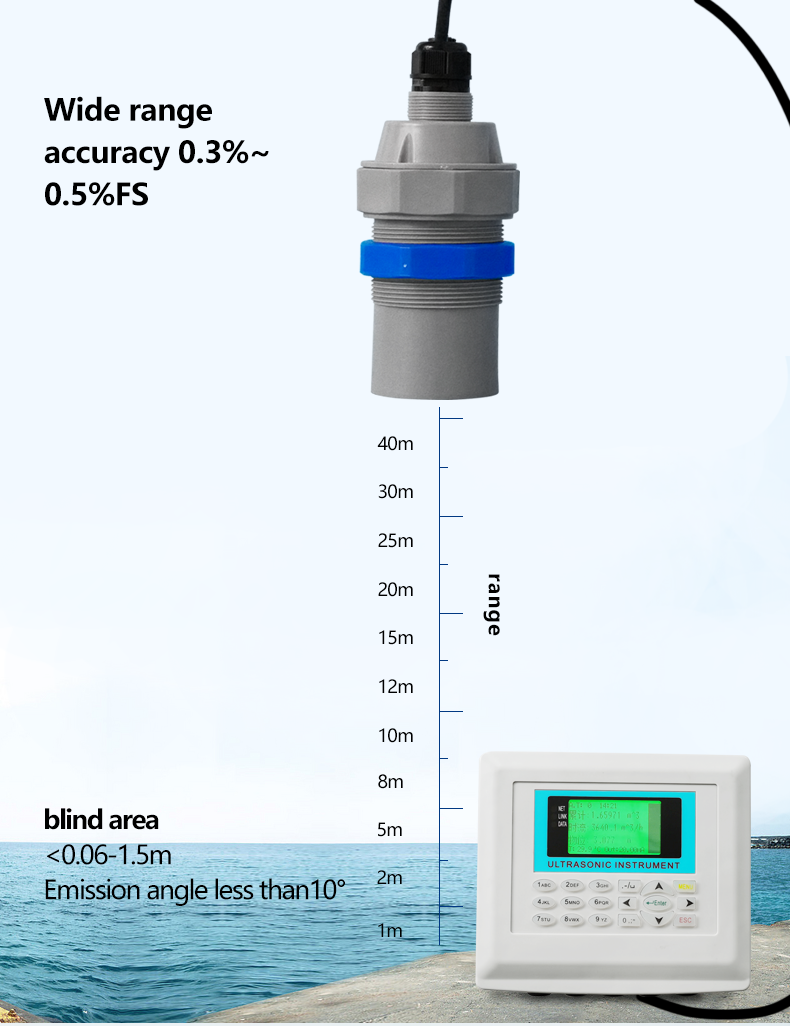

 Ultrasonic Open Channel Flow Meter Accuracy

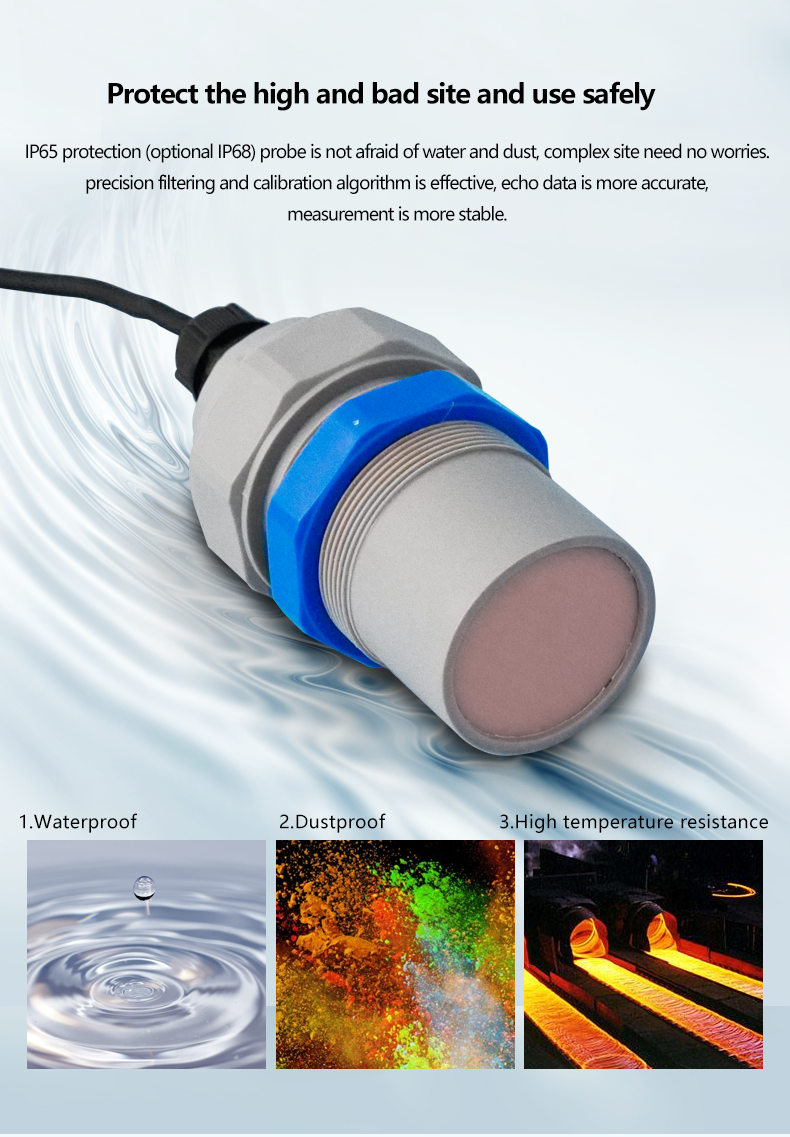

Ultrasonic Open Channel Flow Meter Protection Grade

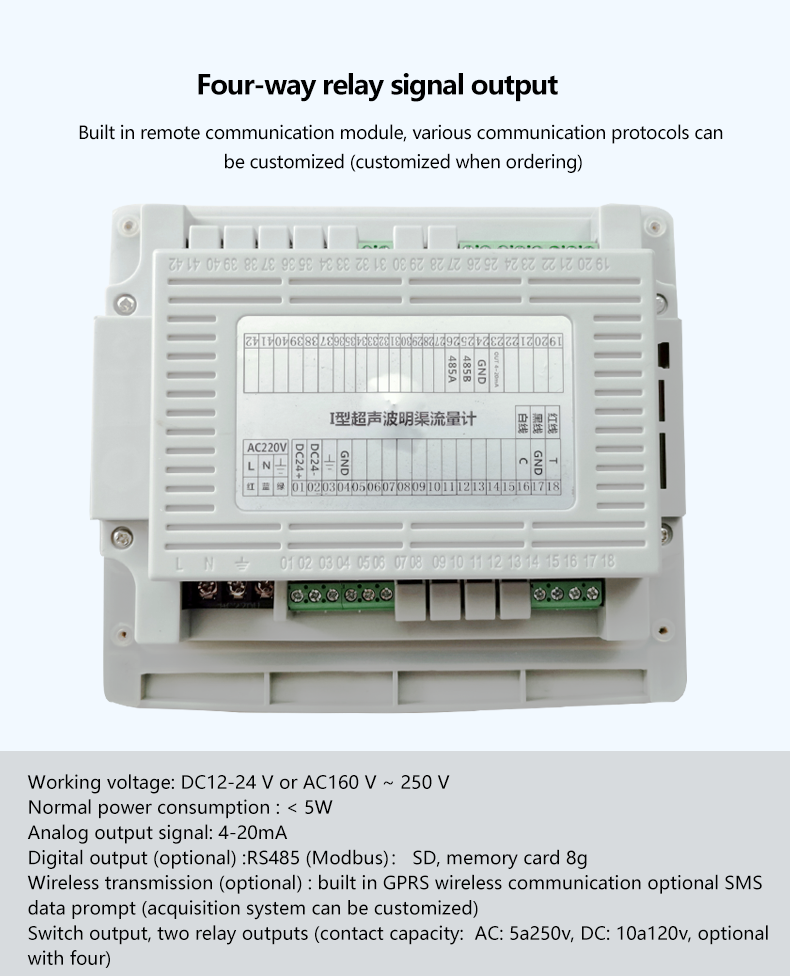

Four-way relay signal output

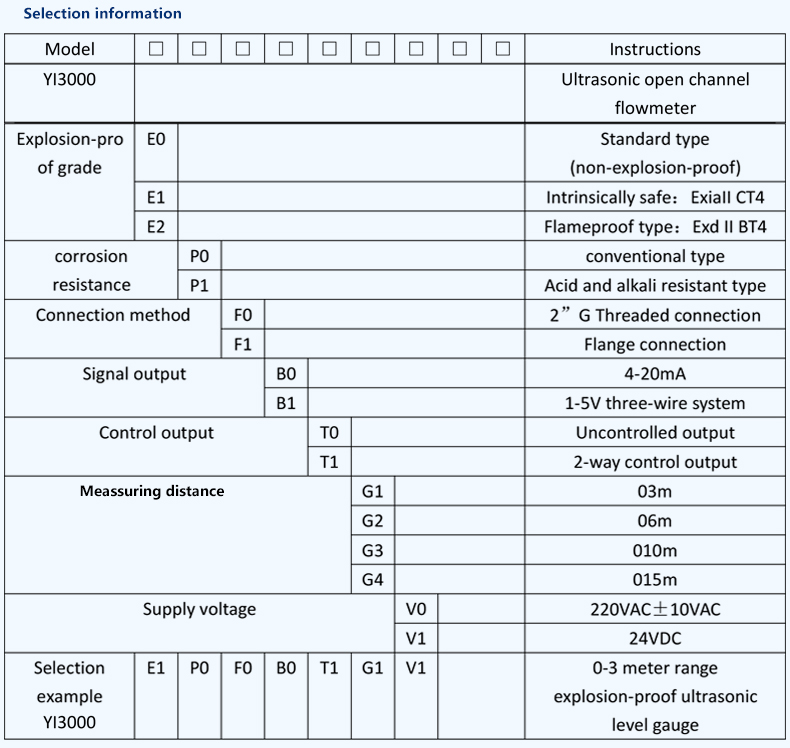

Open Channel Flow Meter Selection information


Packing & Delivery:


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
