Guided wave radar level gauge can be used in a variety of complex conditions due to the advanced microprocessor and unique choDiscovery echo processing technology.
A variety of process connections and the types of detection components make the 60X series guided wave radar level gauge suitable for a variety of complex conditions and applications.Such as: high temperature, high pressure and small dielectric constant medium.
The work mode of pulse is adopted, and the radar level of guided wave is extremely low in transmitting power, which can be installed in various metal and non-metal containers, which is harmful to human body and environment.
Product Origin:
ChinaShipping Port:
Huangpu portLead Time:
5~7 Working DaysMOQ:
1Price:
$634/Principle：

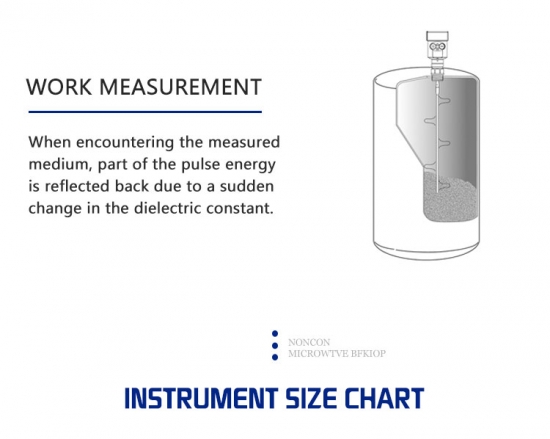

The high frequency microwave pulse emitted by the guided wave radar travels along the detection module (cable or steel bar) and encounters the measured medium. Due to the dielectric constant mutation, the reflection is caused and part of the pulse energy is reflected back.The time interval between the emitted and reflected pulses is proportional to the distance between the measured medium.
Description：
Guided wave radar is a measuring instrument based on the principle of time travel. Radar waves move at the speed of light.The probe emits high frequency pulse and propagates along the cable or bar probe. When the pulse hits the material surface, it is reflected back to be received by the receiver in the instrument and transformed the distance signal into the level signal.
The reflected pulse signal is transmitted to the electronic circuit part of the instrument along the cable or pole probe.The correct identification of echo signal is completed by the pulse software. The distance D from the material surface is directly proportional to the time travel T of the pulse:
D=C×T/2
Where C is the speed of light
Since the distance E of the empty tank is known,
the level L is:
L=E-D
Set by input of empty tank height E (= zero), full
tank height F (= full range) and some
application parameters, the application
parameters will automatically adapt the
instrument to the measuring environment,
corresponding to 4-20ma output.
Measurement range:
Description：
H----Measurement range
L----Empty tank distance
B----Top blind area
E----Minimum distance from probe to tank wall
The blind spot on the top refers to the minimum distance between the highest material surface and the measuring reference point.
A blind spot at the bottom is a distance near the bottom of a cable that cannot be accurately measured.
There is a finite measurement distance between the top blind and the bottom blind.
Note:
Only when the material is between the
blind area at the top and the blind
area at the bottom, the reliable
measurement of the level in the tank
can be guaranteed.
Product introduction
3. Installation guide
Make sure the cable or bar does not touch the internal obstruction within the whole range. Therefore, avoid the facilities inside the tank, such as ladder, limit switch, heating equipment, support, etc.Note also that the cable or bar must not intersect the feed flow.
Note:the highest material level shall not enter the measurement blind area.The meter must be kept away from the tank wall.The instrument is mounted so that the cable or rod is oriented perpendicular to the surface of the medium under test.The instruments installed in the explosion-proof area must comply with the national regulations on the installation of explosion-proof dangerous area.The shell of benan type is made of aluminum.This instrument case is installed on the occasions where explosion protection is required and the instrument must be connected to the earth.

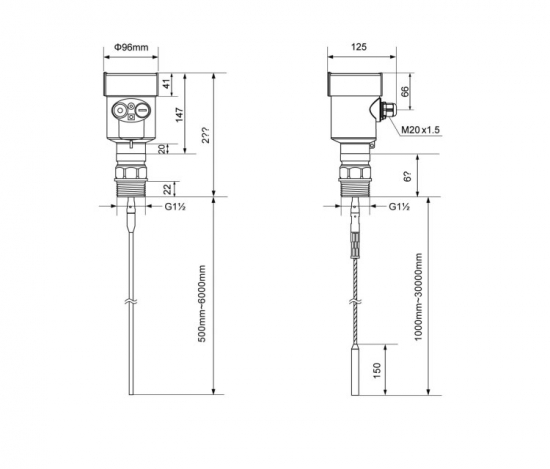

Instrument size (unit: mm)
Product selection
NK-6061
|
Maximum range/probe type |
|
30000mm/Single cable typeor 6000mm/Single rod type |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe+flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
ACable type probe Φ8mm /Stainless steel 304 BCable type probe Φ4mm /Stainless steel316L CBar type probe Φ10mm /Stainless steel 304 DBar type probe Φ10mm /Stainless steel316L |
|
Process connection |
|
G Screw thread G1½″ A N Screw thread 1½″ NPT C Flange DN50 PN16C /Stainless steel D Flange DN80 PN16C /Stainless steel E Flange DN100 PN16C /Stainless steel F Flange DN150 PN16C /Stainless steel H Flange DN200 PN16C /Stainless steel I Flange 2〞150LBS ANSI Convex/stainless steel 316L J Flange 3〞150LBS ANSI Convex/stainless steel 316L K Flange 4〞150LBS ANSI Convex/stainless steel 316L L Flange 6〞150LBS ANSI Convex/stainless steel 316L M Flange 8〞150LBS ANSI Convex/stainless steel 316 L |
|
Sealing/process temperature |
|
1.Conventional type(-40～130)℃ 2.High temperature type (-40～250)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″NPT |
|

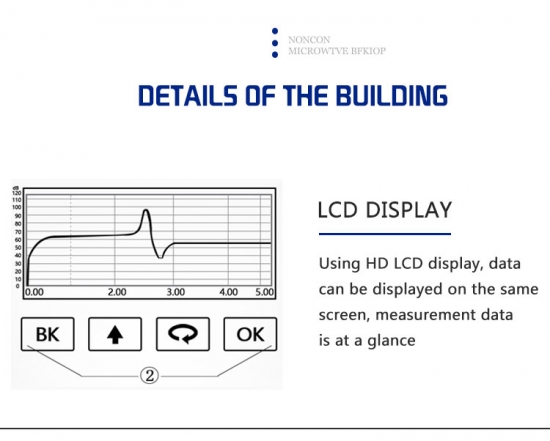

Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6062
|
Maximum range/probe type |
|
20000mm/Perfluorinated sealing cable typeor 6000mm/Perfluorinated rod antenna |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe+flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
ACable type probe Φ4mm/PTFE CBar type probe Φ10mm/PTFE |
|
Process connection |
|
G Screw thread G1½″ A N Screw thread 1½″ NPT C Flange DN50 PN16C /Stainless steel/PTFE D Flange DN80 PN16C /Stainless steel/PTFE E Flange DN100 PN16C /Stainless steel/PTFE F Flange DN150 PN16C /Stainless steel/PTFE H Flange DN200 PN16C /Stainless steel/PTFE I Flange 2〞150LBS ANSI Convex/stainless steel 316L/PTFE J Flange 3〞150LBS ANSI Convex/stainless steel 316L /PTFE K Flange 4〞150LBS ANSI Convex/stainless steel 316L/PTFE L Flange 6〞150LBS ANSI Convex/stainless steel 316L/PTFE M Flange 8〞150LBS ANSI Convex/stainless steel 316 L /PTFE |
|
Sealing/process temperature |
|
1.Conventional type (-40～130)℃ 2.High temperature type (-40～200)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6063
|
Maximum range/probe type |
|
30000mm /Double cable type |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe+flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
ACable type probe Φ6mm/Stainless steel304 BCable type probe Φ6mm/Stainless steel316L |
|
Process connection |
|
G Screw thread G1½″A N Screw thread 1½″NPT C Flange DN50 PN16C /Stainless steel D Flange DN80 PN16C /Stainless steel E Flange DN100 PN16C /Stainless steel F Flange DN150 PN16C /Stainless steel H Flange DN200 PN16C /Stainless steel I Flange 2〞150LBS ANSI Convex/stainless steel 316L J Flange 3〞150LBS ANSI Convex/stainless steel 316L K Flange 4〞150LBS ANSI Convex/stainless steel 316L L Flange 6〞150LBS ANSI Convex/stainless steel 316L M Flange 8〞150LBS ANSI Convex/stainless steel 316 L |
|
Sealing/process temperature |
|
Conventional type (-40～150)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6064
|
Maximum range/probe type |
|
6000mm /Coaxial tubular antenna |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe+flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
ACable type probe Φ25mm /Stainless steel304 BCable type probe Φ25mm /Stainless steel316L |
|
Process connection |
|
G Screw thread G½″ A N Screw thread 1½″ NPT C Flange DN50 PN16C /Stainless steel D Flange DN80 PN16C /Stainless steel E Flange DN100 PN16C /Stainless steel F Flange DN150 PN16C /Stainless steel H Flange 2〞150LBS ANSI Convex/stainless steel 316L I Flange 3〞150LBS ANSI Convex/stainless steel 316L J Flange 4〞150LBS ANSI Convex/stainless steel 316L K Flange 6〞150LBS ANSI Convex/stainless steel 316L L Special customized |
|
Sealing/process temperature |
|
1.Conventional type (-40～130)℃ 2.High temperature type (-40～250)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″ NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6065
|
Maximum range/probe type |
|
15000mm /Single cable antennaor6000mm/Single pole antenna |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe+flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
A Cable type probe Φ8mm /Stainless steel 304 B Cable type probeΦ8mm /Stainless steel 316L C Bar type probeΦ10mm /Stainless steel 304 D Bar type probeΦ10mm /Stainless steel 316L |
|
Process connection |
|
G Screw thread G1½″ A N Screw thread 1½″ NPT C Flange DN50 PN16C /Stainless steel D Flange DN80 PN16C /Stainless steel E Flange DN100 PN16C /Stainless steel F Flange DN150 PN16C /Stainless steel H Flange DN200 PN16C /Stainless steel I Flange 2〞150LBS ANSI Convex/stainless steel 316L J Flange 3〞150LBS ANSI Convex/stainless steel 316L K Flange 4〞150LBS ANSI Convex/stainless steel 316L L Flange 6〞150LBS ANSI Convex/stainless steel 316L M Flange 8〞150LBS ANSI Convex/stainless steel 316L |
|
Sealing/process temperature |
|
Standard type (-200～400)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″ NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
The following installation guide is applicable to cable and lever measuring solids or liquids.
●Installation location:
●Keep as far away as possible from the
discharge and feed orifices.
●The metal tank shall not touch the tank
wall or tank bottom in the whole range.
●It is recommended to be installed at 1/4
or 1/6 of the diameter of the hopper, and
the minimum distance from the tank wall
is 1/10 of the measuring range.
●The minimum distance between the cable
or pole probe and the tank wall is more
than 300mm.
●The bottom of the probe is greater than
or equal to 30mm from the bottom of the tank.
●The minimum distance between the probe
and the obstruction in the tank is more
than 200mm.
●If the bottom of the container is cone
shaped, install the center of the roof.
The figure on the right shows the bar radar level gauge installation, which is mainly used for the measurement of liquid level
●Description：
●Any medium whose dielectric constant
≥1.8 can be measured.
●Generally used to measure viscosity
≤500cst and not easy to produce
adhesion medium.
●The maximum range of the pole radar
can reach 6 meters.
●Strong penetration of steam and
foam, measurement is not affected.
●For larger foam liquid measuring
environment, single pole radar
level gauge should be selected.
The figure on the right shows the installation diagram of the dual-cable radar level gauge, which is mainly used to measure the liquid level with low dielectric constant and the light solid powder level with low dielectric constant
●Description：
●The liquid and light solid powder with
small dielectric constant can be
Measured by double cable to ensure good
and accurate measurement.
●Any medium whose dielectric constant
is greater than≥1.6 can be measured.
●Generally used to measure viscosity
≤500cst and not easy to produce
adhesion medium.
●The two-cable radar level gauge has a
maximum range of 30 meters.
●Explosion-proof connection
The explosion-proof form of this product is intrinsically safe.Explosion-proof mark: Exia IIC T6.The radar level gauge adopts the die-cast aluminum shell material and the electronic parts adopt the sealed structure, so as to ensure that the spark generated during the partial fault of the circuit will not be released.This product is suitable for continuous measurement of the physical location of combustible media below the explosion-proof grade of Exia IIC T6.
The product shall be powered by safety grid when used. FBS-2 safety grid is the related equipment of this product, and the explosion proof form is intrinsically safe.Explosion-proof mark: [Exia] IIC, power supply voltage (21.6 ~ 26.4) V DC, short circuit current (135 mA), working current (4-20 mA).
All cables should be screened from the meter to the safety gate up to 500m. Distribution capacitance is no more than 0.1μF/km and distribution inductance is no more than 1mH/km.The instrument must be installed to the ground.Do not use other related equipment that has not been tested for explosion protection.
Technical parameters
General data Detection group material
| Rod | Stainless steel 316L/PTFE |
| Cable | Stainless steel 316L/PTFE |
| Coaxial | Stainless steel 316L/PTFE |
| Seal | Viton fluooelastomer, Kalrez fluoroelastomer |
| Process connection | Stainless steel 316L/PTFE, Cast aluminum, power layer |
| Sealing between housing and housing | Slicone rubber |
| Shell window | Polycarbonate |
| Earthing terminal | Stainless steel 316L |
Power supply voltage
Two-wire system standard
(16~36)V DC
Intrinsically safe type
(21.6~26.4)V DC
Power consumption
max. 22.5mA
Allow the ripple
-< 100HZ
Uss<1V
-(100~100K)HZ
Uss<10mV
Four-wire system
Bunk + flameproof
(22.8~26.4)V DC, (198~242)V AC
Power consumption
max. 1VA, 1W
Cable parameter
Cable inlet/plug
1 M20xl.5 cable inlet
Spring terminals
Spring terminals
Output parameters
|
Output signal |
(4~20)mA/HART |
| Resolution ratio | 1.6 uA |
|
Breakdown signal |
The current output is constant; 20.5mA; 22mA; 3.9mA; |
| Two wire load resistance | See below |
|
Four wire load resistance |
Maximum 500 |
| Integration time | (0~50)s, adjustable |
Characteristic parameters
Maximum measuring distance
NK-6061 30m/6m（Cable/rod）
NK-6062 20m/6m（Cable/rod）
NK-6063 30m/6m（Cable/rod）
NK-6064 6 m
NK-6065 15m/6m（Cable/rod）
Measured interval About 1s (depending on parameter settings)
Adjust the time About 1s (depending on parameter settings)
Resolution ratio 1mm
Accuracy ±10mm
