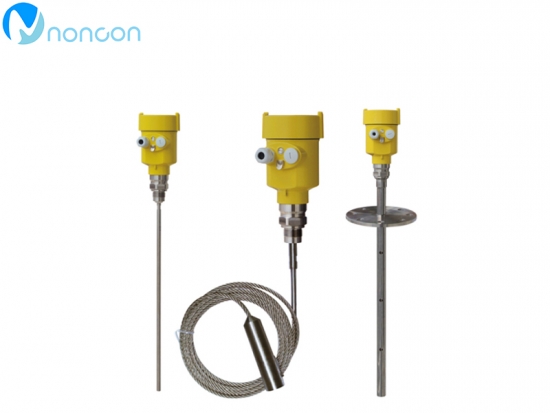

The microwave pulse emitted by the guided wave radar travels along the steel cable or bar and encounters the measured medium. Due to the dielectric constant mutation, the reflection is caused and part of the impulse energy is emitted back.The height of the medium can be measured by the time interval between the transmitted and reflected pulses directly proportional to the distance between the measured medium.
Product Origin:
ChinaItem NO.:
NK-6065Shipping Port:
Huangpu portLead Time:
3~5 Working DaysPayment:
TTMOQ:
1Price:
$783.5/setMarket Price:
$823Features：
Guided wave radar level gauge can be used in a variety of complex conditions due to the advanced microprocessor and unique choDiscovery echo processing technology.
A variety of process connections and the types of detection components make the 60X series guided wave radar level gauge suitable for a variety of complex conditions and applications.Such as: high temperature, high pressure and small dielectric constant medium.
The work mode of pulse is adopted, and the radar level of guided wave is extremely low in transmitting power, which can be installed in various metal and non-metal containers, which is harmful to human body and environment.

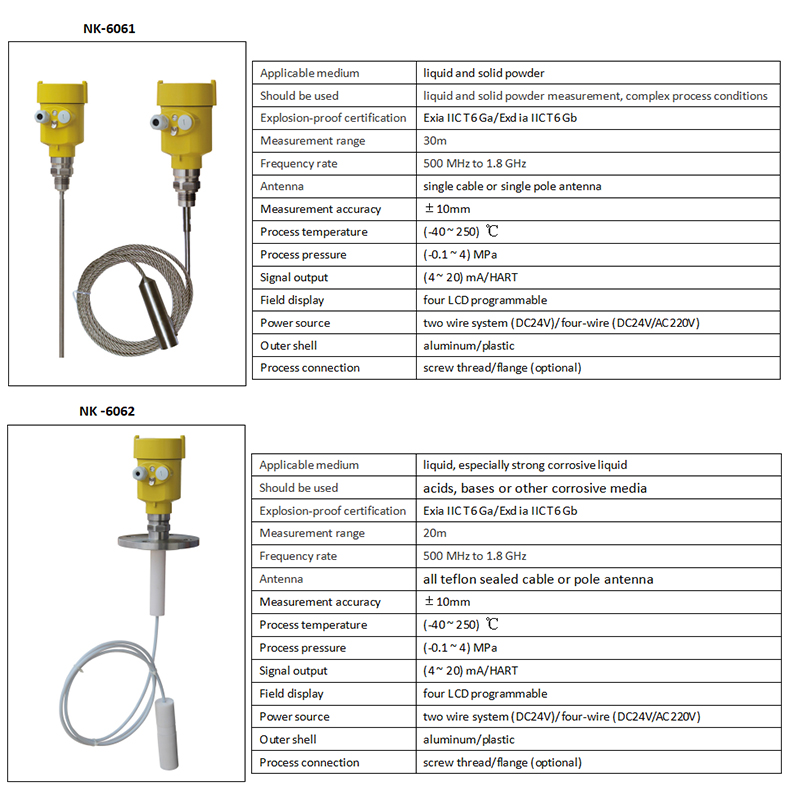

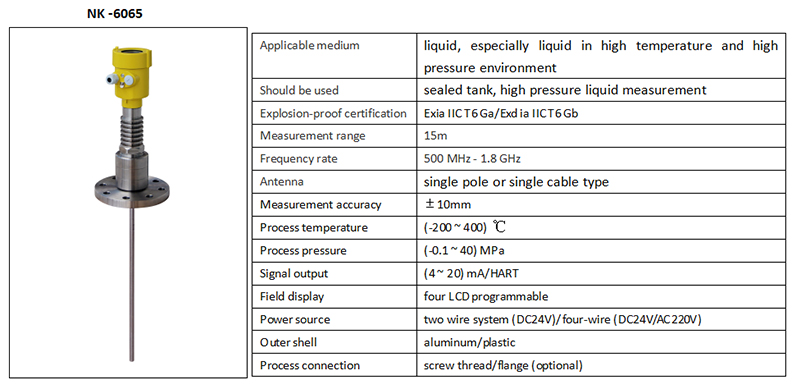

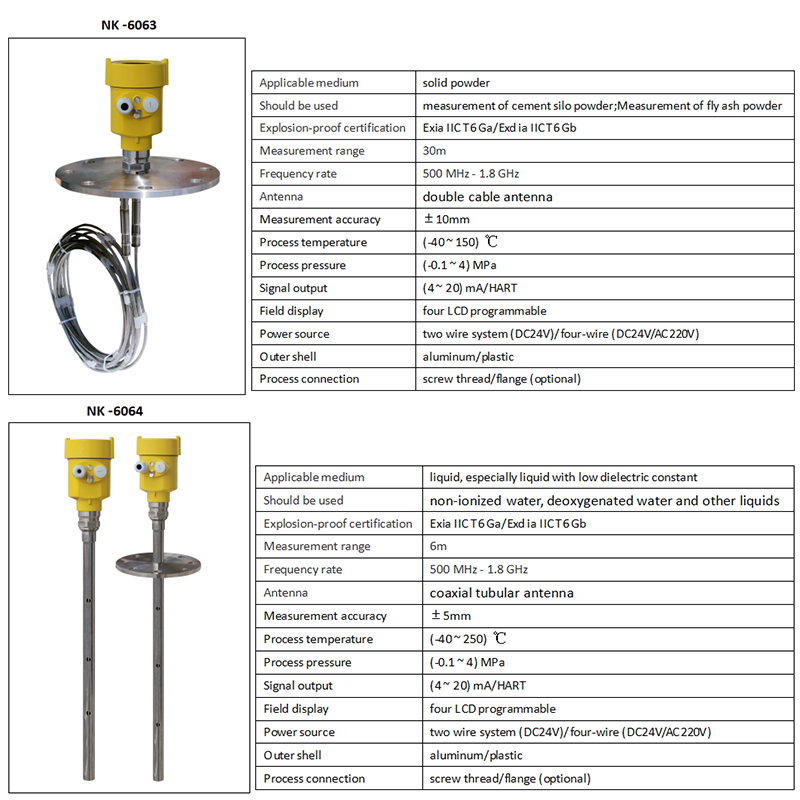

Product introduction

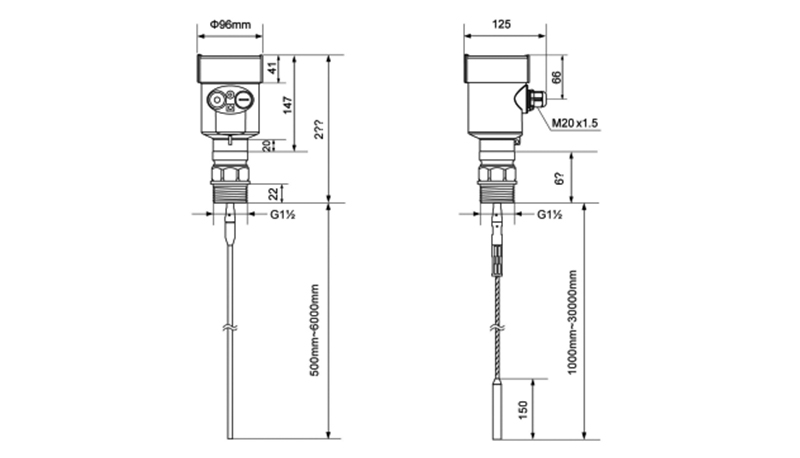

Instrument size (unit: mm)
Product selection
NK-6061
|
Maximum range/probe type |
|
30000mm/Single cable type or 6000mm/Single rod type |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe + flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
A Cable type probe Φ8mm /Stainless steel 304 B Cable type probe Φ4mm /Stainless steel 316L C Bar type probe Φ10mm /Stainless steel 304 D Bar type probe Φ10mm /Stainless steel 316L |
|
Process connection |
|
G Screw thread G1½″ A N Screw thread 1½″ NPT C Flange DN50 PN16C /Stainless steel D Flange DN80 PN16C /Stainless steel E Flange DN100 PN16C /Stainless steel F Flange DN150 PN16C /Stainless steel H Flange DN200 PN16C /Stainless steel I Flange 2〞150LBS ANSI Convex/stainless steel 316L J Flange 3〞150LBS ANSI Convex/stainless steel 316L K Flange 4〞150LBS ANSI Convex/stainless steel 316L L Flange 6〞150LBS ANSI Convex/stainless steel 316L M Flange 8〞150LBS ANSI Convex/stainless steel 316 L |
|
Sealing/process temperature |
|
1. Conventional type (-40～130)℃ 2. High temperature type (-40～250)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6062
|
Maximum range/probe type |
|
20000mm/Perfluorinated sealing cable type or 6000mm/Perfluorinated rod antenna |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe + flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
A Cable type probe Φ4mm/PTFE C Bar type probe Φ10mm/PTFE |
|
Process connection |
|
G Screw thread G1½″ A N Screw thread 1½″ NPT C Flange DN50 PN16C /Stainless steel/PTFE D Flange DN80 PN16C /Stainless steel/PTFE E Flange DN100 PN16C /Stainless steel/PTFE F Flange DN150 PN16C /Stainless steel/PTFE H Flange DN200 PN16C /Stainless steel/PTFE I Flange 2〞150LBS ANSI Convex/stainless steel 316L/PTFE J Flange 3〞150LBS ANSI Convex/stainless steel 316L /PTFE K Flange 4〞150LBS ANSI Convex/stainless steel 316L/PTFE L Flange 6〞150LBS ANSI Convex/stainless steel 316L/PTFE M Flange 8〞150LBS ANSI Convex/stainless steel 316 L /PTFE |
|
Sealing/process temperature |
|
1. Conventional type (-40～130)℃ 2. High temperature type (-40～200)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6063
|
Maximum range/probe type |
|
30000mm / Double cable type |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe + flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
A Cable type probe Φ6mm/Stainless steel 304 B Cable type probe Φ6mm/Stainless steel 316L |
|
Process connection |
|
G Screw thread G1½″A N Screw thread 1½″NPT C Flange DN50 PN16C /Stainless steel D Flange DN80 PN16C /Stainless steel E Flange DN100 PN16C /Stainless steel F Flange DN150 PN16C /Stainless steel H Flange DN200 PN16C /Stainless steel I Flange 2〞150LBS ANSI Convex/stainless steel 316L J Flange 3〞150LBS ANSI Convex/stainless steel 316L K Flange 4〞150LBS ANSI Convex/stainless steel 316L L Flange 6〞150LBS ANSI Convex/stainless steel 316L M Flange 8〞150LBS ANSI Convex/stainless steel 316 L |
|
Sealing/process temperature |
|
Conventional type (-40～150)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6064
|
Maximum range/probe type |
|
6000mm / Coaxial tubular antenna |
|
License |
|
P Standard type (non-explosion proof) I Intrinsically safe type（Exia IIC T6 Ga） G Intrinsically safe + flameproof type（Exd〔ia〕IIC T6 Gb） |
|
Probe type/material |
|
A Cable type probe Φ25mm /Stainless steel 304 B Cable type probe Φ25mm /Stainless steel 316L |
|
Process connection |
|
G Screw thread G½″ A N Screw thread 1½″ NPT C Flange DN50 PN16C /Stainless steel D Flange DN80 PN16C /Stainless steel E Flange DN100 PN16C /Stainless steel F Flange DN150 PN16C /Stainless steel H Flange 2〞150LBS ANSI Convex/stainless steel 316L I Flange 3〞150LBS ANSI Convex/stainless steel 316L J Flange 4〞150LBS ANSI Convex/stainless steel 316L K Flange 6〞150LBS ANSI Convex/stainless steel 316L L Special customized |
|
Sealing/process temperature |
|
1.Conventional type (-40～130)℃ 2.High temperature type (-40～250)℃ |
|
Enclosure/protection class |
|
L Aluminum/IP67 Q Plastic/IP65 |
|
Cable into the line |
|
M M 20x1.5 N ½″ NPT |
|
Status display |
|
V With X Without |
|
Programming unit |
|
V With X Without |
NK-6065
Maximum range/probe type
15000mm /Single cable antenna or 6000mm/Single pole antenna
License
P Standard type (non-explosion proof)
I Intrinsically safe type（Exia IIC T6 Ga）
G Intrinsically safe + flameproof type（Exd〔ia〕IIC T6 Gb）
Probe type/material
A Cable type probe Φ8mm /Stainless steel 304
B Cable type probe Φ8mm /Stainless steel 316L
C Bar type probe Φ10mm /Stainless steel 304
D Bar type probe Φ10mm /Stainless steel 316L
Process connection
G Screw thread G1½″ A
N Screw thread 1½″ NPT
C Flange DN50 PN16C /Stainless steel
D Flange DN80 PN16C /Stainless steel
E Flange DN100 PN16C /Stainless steel
F Flange DN150 PN16C /Stainless steel
H Flange DN200 PN16C /Stainless steel
I Flange 2〞150LBS ANSI Convex/stainless steel 316L
J Flange 3〞150LBS ANSI Convex/stainless steel 316L
K Flange 4〞150LBS ANSI Convex/stainless steel 316L
L Flange 6〞150LBS ANSI Convex/stainless steel 316L
M Flange 8〞150LBS ANSI Convex/stainless steel 316L
Sealing/process temperature
Standard type (-200～400)℃
Enclosure/protection class
L Aluminum/IP67
Q Plastic/IP65
Cable into the line
M M 20x1.5
N ½″ NPT
Status display
V With
X Without
Programming unit
V With
X Without
