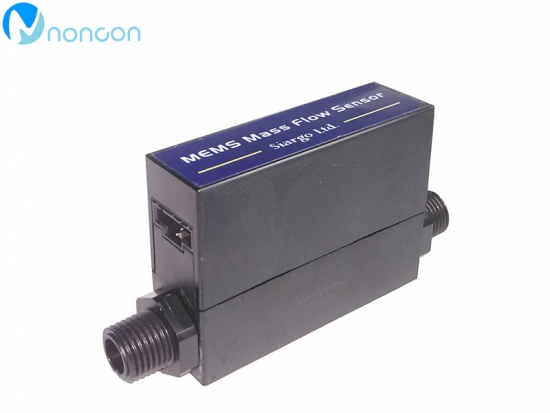

FS4003/08 series gas mass flow sensor is specially developed for common gas flow measurement.The sensor can directly measure gas mass flow without bypass setting and low pressure loss.The sensor can be used for flow monitoring of air or nitrogen in the purification industry, as well as for environmental detection industry (such as atmospheric sampler) and analytical instrument (such as chromatographic analyzer).
Product Origin:
ChinaItem NO.:
MF4003/4008Shipping Port:
Huangpu portColor:
blackLead Time:
3~5 Working DaysPayment:
TTMOQ:
1Price:
$202.2/setMarket Price:
$256Price Range:
1-5/202.2$Product features
Sepecial designed for low pressure gas flow measurement in pipes of 3mm and 8mm.
Support multiple connection modes, easy to install and use.
The sensor chip adopts thermal mass flow measurement without temperature pressure compensation, which ensures the high precision measurement of the sensor.
Multi-sensor integration on a single chip enables a range ratio of 100:1 or higher.
The output mode is flexible, which can either automatically upload data through communication interface or output data through upper query, or output linear analog voltage through analog interface.
The sensor has high zero stability.
All measuring ranges are high stability,accuracy and excellent repeatability.
Low power consumption, low pressure loss.
Fast response.

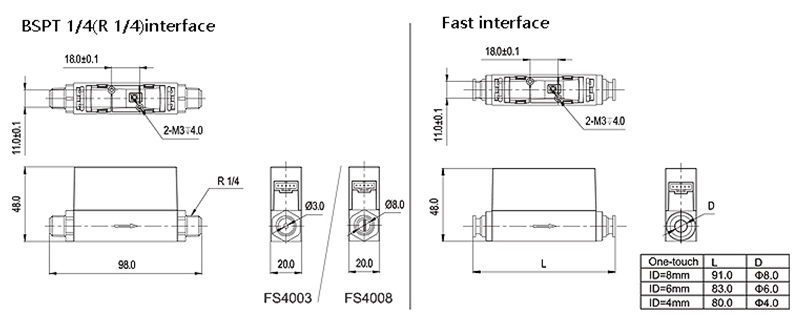

Mechanical dimensions
Technical parameters
Parameters
FS4003
FS4008
Unit
Diameter
3
8
mm
The maximum flow
2,3,4,5
10,20,30,40,50
SLPM
Measuring proportion
100:1
Precision
±(1.5+0.2FS)
%
Repetitive
0.25
%
Zero output drift
±30
mV
Output drift
±0.12
%/°C
The response time
10(default,20,50,100,200,500,1000 can be set up)
ms
Working power
8~24VDC,50mA
Output way
Linear:RS232/RS485analog voltage0.5~4.5VDC
Maximum flow pressure loss
100
600
Pa
Maximum working pressure
≤0.5
MPa
Working temperature
-10+55
°C
Storage temperature
-20+65
°C
Working humidity
<95%RH(no ice,no frost)
Mechanical interface
BSPT1/4(R1/4,4mm,6mm,8mm Fast interface
BSPT1/4(R1/4)
Calibration mode
Air(20°C,101.325kPa)
Weight
50(including BSPT 1/4(R1/4)interface),69(including 4mm,8mm fast interface,66(including 6mm fast interface)
g
Maximum allowable flow
30
200
SLPM
Maximum allowable flow change
4
30
SLPM/sec
Remark:1.The analog output is the standard output of the sensor, and users can choose RS232 or RS485 output according to different demands.
2.The above parameters at 20 ° C, 101.325 kPa measured.

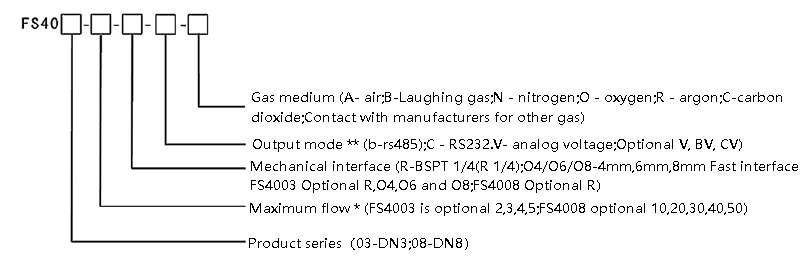

Product selection
*The unit of maximum flow is SLPM,for example 5 represents maximum flow of 5SLPM;
For co2 and laughing gas, the maximum flow of FS4003 is 2,3,4instead of 5,and the maximum flow of FS4008 is10,20,30,40 instead of 50.
*The sensor's standard output is analog voltage, and RS232 and RS485 are options.
