Smart gas Roots (waist wheel) flow meter Intelligent gas waist wheel (Roots) flowmeter is a new generation flowmeter that integrates flow, temperature, and pressure detection functions, and can automatically compensate for temperature and pressure. Gas is a compressible fluid, and its volume value is closely related to temperature and pressure. In order to unify standards for both parties, it is necessary to convert the actual volume into a standard volume under reference conditions (101.325 kPa 20°C). In order to achieve this purpose, the smart gas waist wheel flowmeter can accurately correct the volume of gas; it is an ideal instrument for gas measurement in urban gas, petroleum, chemical, electric power, metallurgy and other industries. more
TUF Series Portable Ultrasonic Flow Meter The TUF series ultrasonic flow meter utilizes the principle of low voltage and multiple pulsation time difference, adopts the high-precision and ultra-stable differential transmission of double-balanced signals and differential receiving digital detection technology to measure the acoustic wave transmission time in both the downstream and counter-current directions, and calculates the flow rate according to the time difference.It has the characteristics of good stability, small zero drift, high measuring accuracy and high anti-interference of measuring range over wide. more
LDB Intelligent Type Electromagnetic Flow Meter The LDB intelligent type electromagnetic flow meter consists of a sensor and a converter. It is based on Faraday's law of electromagnetic induction, which is used to measure the volume flow of conductive liquid with conductivity greater than 5μs/cm. It is an inductive meter for measuring the volume flow of conductive medium. In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquids such as strong acid and alkali and uniform liquid-solid two-phase suspension liquid such as slurry, pulp and paper pulp. more
LKQ Thermal Gas Mass Flow Meter LKQ thermal gas mass flow meter is a mass flow measurement and monitoring meter,which can detect air, natural gas, hydrogen, oxygen, chlorine, nitrogen and ammonia, ammonia, coal gas, phosgene, flue gas and various chemical mixtures, without pressure and temperature compensation. It can be widely used in petroleum, chemical, metallurgy, electric power, water treatment, paper, food, medicine, cement, textile and various production, scientific research units for process control and gas flow measurement. Widely used in: flow measurement of steel plant, coking plant gas. more
LLGQ Gas Roots /Waist Wheel Flow Meter The gas roots flowmeter has been used as a volumetric meter for more than 100 years. With the features such as high precision, wide range, small volume, light weight, convenient installation and maintenance, reliable and durable service life, it is widely used in natural gas, coal gas, air and other gas flowmeters.It is an ideal flowmeter device for urban gas, oilfield chemical, scientific research and other departments at home and abroad. more
High Precision Gas Turbine Flow Meter Gas turbine flowmeter is a new generation of high precision, high reliability gas precision measuring meter integrating temperature, pressure, flow sensor and intelligent flow totalizer developed by the advanced technology of flow meter at home and abroad, optimized by theories of gas mechanics, fluid mechanics and electromagnetics, which has excellent low pressure and high pressure metering performance. more
LUGK Multi Variable Type Vortex Flow Meter Mass vortex flowmeter, simple to install. Connection mode: flange and clamping connection. It has superior reliability and stability due to no movable part, and the detecting portion has only a simple configuration of the vortex generator. Low pressure loss, no leakage point, and high safety performance. Robust sensor construction for high temperature (up to 3500 ° C), high pressure fluid. more
LUGC Steam Gas And Liquid Insert Type Vortex Flow Meter The Insert Type vortex flowmeter is simple in structure and can be made into online installation type.Applicable to large diameter gas, steam flow measurement, etc.Easy installation, no pipe design. more
LUGB Flow Instrumentation Vortex Flow Meter The vortex flowmeter is a speed type flow instrument which has a wide range of uses. It is suitable for flow metering, measurement and control of liquids, steam and most gases. more
MF5100 series gas mass flow meter has the function of gas recognition. It can work for a long time with battery power supply, display instantaneous and cumulative flow, and provide impulse signal. In the condition of external power supply, it can also output RS485/4-20mA /o~5Vdc and other signals.
Product Origin:
ChinaShipping Port:
Huangpu portLead Time:
3~5 Working DaysMOQ:
1Product features
The sensor chip adopts heat mass flow measurement without compensation of temperature and pressure, which ensures the high-precision measurement of the flowmeter;
Multiple sensor integration is implemented on a single chip with a range ratio of 100:1 or higher;
LED displays instantaneous flow rate and cumulative flow rate;
It has gas recognition function;
Ultra-low power consumption, internal lithium battery power supply can work for a long time;
The output mode is flexible, RS485 communication module, 4-20mA current and 0-5V voltage output module are optional.

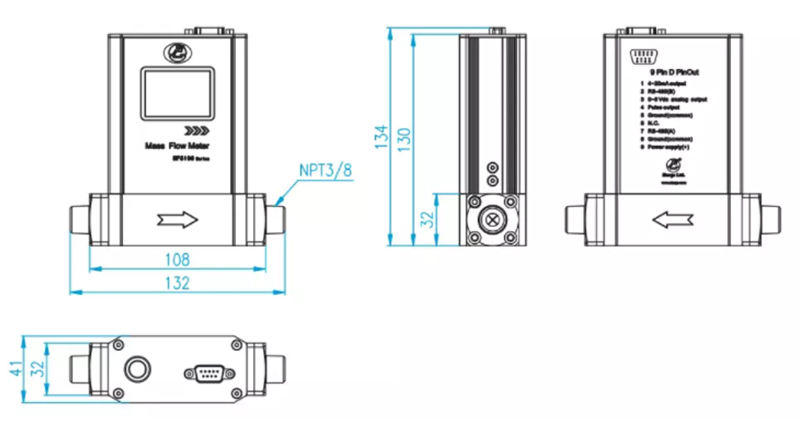

Mechanical dimensions
Technical parameters
Parameters
MF5106
MF5108
Unit
The maximum flow
30
50
SLPM
Precision
±1.5
%FS
Repetitive
±1.0
%
Resolution
0.01
SLPM
Working pressure
0.1~0.8
MPa
The max working pressure
≤1.0
MPa
Working temperature
-10~+55
℃
Humidity
<95%RH(no ice,no frost)
Storage temperature
-10~+65
℃
Long-term stability
<1.0
%
Working power
No.2 lithium battery LR26500(type C)
Battery life
2
Year
Output
LCD(display instantaneous and cumulative flow), 3V pulse
RS485 Modbus(Need power supply outside 12-24VDC)
4~20mA or 0~5VDC(Need power supply outside 12-24VDC)
Calibration conditions
Air(20°C,101.325kPa)
Mechanical interface
NPT 3/8”
Weight
<1.0
kg
Remark:The above parameters at 20 ° C, 101.325 kPa measured.
