FS6122 series medical CPAP sensor module is designed for the CPAP system of domestic ventilator (continuous positive pressure ventilation system).The sensor integrates MEMS mass flow chip and MEMS pressure chip, thus providing the necessary output signal for CPAP system.
Product Origin:
ChinaItem NO.:
FS6122Shipping Port:
Huangpu portColor:
blackLead Time:
3~5 Working DaysPayment:
TTMOQ:
1Price:
$189.7/setMarket Price:
$255Price Range:
1-5/189.7$Product features
Mass flow and pressure can be measured
Fast response time
The sensor is highly sensitive and has minimal initial flow.
Low power consumption, low pressure loss.
Designed specifically for medical devices

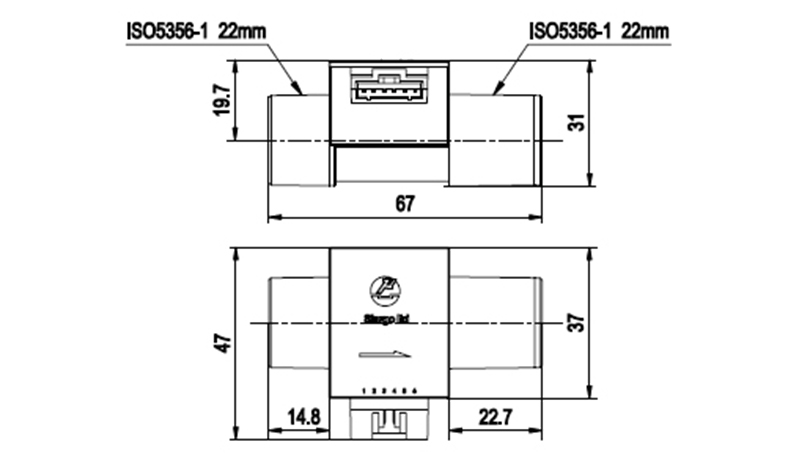

Mechanical dimensions
Technical parameters
Parameters
Numerical
Unit
Flow signal
Flow range
-250~+250
SLPM
Precision
±(2.0+0.5FS)
%
Output mode²
Linear:analog voltage1²C
Analog output range
0.5~4.5
VDC
Respone time
5
ms
Pressure signal
Output type
Relative pressure
%/°C
Pressure range
-5~4.5
VDC
Precision
±0.8+0.5%FS)
Output mode²
Linear:analog voltage1²C
Analog output range
0.5~4.5
VDC
Respone time
5
ms
Temperature signal
output range
-10~+60
°C
Precision
±0.5
°C
Humidity signal
output range
0~100(no ice,no frost
%RH
Precision
±2.0(20~80%RH);±5.0(others)
%RH
Resolution ratio
±0.7
%RH
Respone time(63%)
5.0(25~75%RH)
msec
Output drift
±0.5
%RH/year
Other dimensions
Working power
5(±5%)
VDC
Working temperature
-5~+65
°C
Storage temperature
-45~+85
°C
The maximum working pressure
≤0.1
MPa
Working humidity
0~100%RH(no ice,no frost)
Warm up time
<50
Mechanical connection
ISO22mm
Electrical interface
6 pin socket,CDR-6
Calibration mode
Air(20°C,101.325kPa)
Remark:1.The above parameters at 20 ° C, 101.325 kPa measured.
2.I2C is 14 bits.

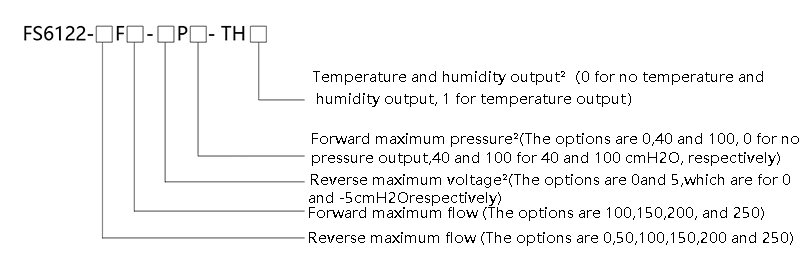

Product selection
The unit of maximum flow is SLPM,for example 250 represents maximum flow of 250SLPM;
The unit of maximum flow is cmH2O,for example 40 represents maximum flow of 40cmH2O;
For example, FS6122-50F200-5P40-TH1 represents flow range of -50~+200SLPM, pressure range of -5~+40cmH2O ;temperature and humidity output.
