TUF Series Portable Ultrasonic Flow Meter

The TUF series ultrasonic flow meter utilizes the principle of low voltage and multiple pulsation time difference, adopts the high-precision and ultra-stable differential transmission of double-balanced signals and differential receiving digital detection technology to measure the acoustic wave transmission time in both the downstream and counter-current directions, and calculates the flow rate according to the time difference.It has the characteristics of good stability, small zero drift, high measuring accuracy and high anti-interference of measuring range over wide.

  • Product Origin:

    China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    Spot
  • MOQ:

    1
Product Details

Features

■ High-accuracy survey

The linear excellent degree is better than 0.5%, the repeatability precision is better than 0.2%, and the measuring precision is better than ±1.0%.

■ Non-contact measurement

The flow measurement can be completed by adsorbing the magnetic ultrasonic flowmeter sensor to the outer wall of the pipe.

■ Large measuring range

Different types of sensors can be used to measure the flow of the DN15-DN6000mm pipe.

■ Support Chinese and English menus

Different versions of Flowmeter, can support Chinese or English menus, convenient and fast.

■ Charge power supply

Built-in large-flow Ni-MH rechargeable battery, can support the flowmeter to work continuously for more than 20 hours.

■ Built-in printer

Instant screen printing can be realized, and the measurement results of more than 20 items can be set ahead of time.

■ Built-in data recorder

The measurement results of up to 20 items can be uploaded to the computer or network communication.

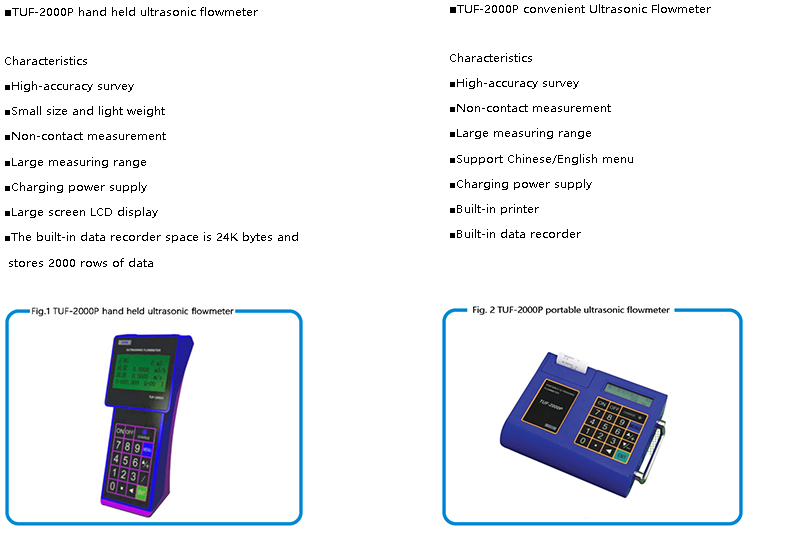

Product type

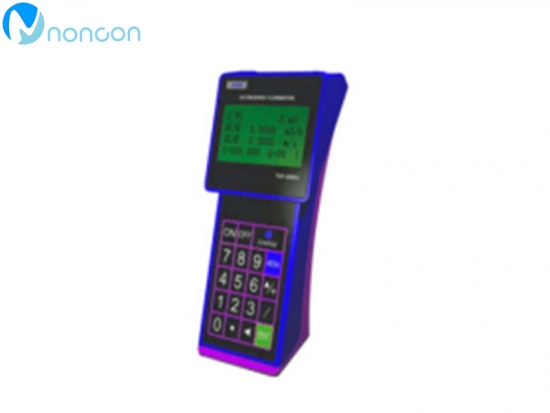

Hand held and portable ultrasonic flowmeter

Optional sensors                                                                                                          Table 1

Optional sensors

 Model


   Describe

Measuring range

Temperature range

Miniature sensor

 TS-1

Small sensors are magnetic

   Magnetic

DN15-DN100mm

-40 - 110

Medium size sensor

 TM-1

Medium sensor is magnetic

   Magnetic

DN50-DN1000mm

-40 - 110

Large sensor

 TL-1

Large sensors are magnetic

   Magnetic

DN300-DN6000mm

-40 - 110

High temperature small sensor

 HTS-1

High temperature small sensor

DN15-DN100mm

-40 - 160

High temperature medium sensor

 HTM-1

High temperature medium sensor

DN50-DN1000mm

-40 - 160

Optional additional hardware

 Model

   Describe

Measuring range

Temperature range

Ultrasonic thickness gauge

 TT100


Ultrasonic thickness gauge

Accurate Measurement of Pipe Wall thickness and improvement of flow Monitoring accuracy

1.2-225.0mm

±1%H

±0.1mmH is measured object thickness

Extension signal cable

Hardware extension signal cable

 Length 10m×2

Suitable for measuring the distance of the pipeline from the host

Lengthening tensioner

Other hardware lengthened tensioner

 Length 6m×2

Suitable for sensing fixation of pipes with diameter over 1000mm

Thermal printer paper

Hardware thermal printer paper

 Length 30m


■TUF-2000B (F) fixed ultrasonic Flowmeter                                                                     Table 2

Characteristics

Fundamental form

Functional form

External clamping type

Safe without cut-out, no pressure loss

Precision±1%

Easy to install and maintain, users can install by themselves

Lowest price, independent of measured caliber

Suitable for environments with good working conditions



Ultrasonic external clamp basic type

TUF-2000BNB



 Ultrasonic external clamp type function                       TUF-2000BNB

Plug-in

Safe without cut-out, no pressure loss

Precision±1%

Users need to be trained to use a special hole opener before installation

High price, independent of measuring caliber

Good reception signal, long - term stable and reliable operation



Ultrasonic insertion basic type

TUF-2000BNC



Ultrasonic insertion type

TUF-2000FNC

Standard section type

Safety needs to be broken pipe, cut off flow, no pressure loss

Precision±0.5%

Safety maintenance needs to be cut off, users can install by themselves

The larger the gauge, the higher the price

Highest accuracy, good receiving signal, stable and reliable long-term operation




Basic type of ultrasonic standard pipe

TUF-2000BNG




Ultrasonic standard segment type function

TUF-2000FNB


■TUF-2000F fixed split-type ultrasonic Flowmeter                                                              Table 3

Optional host



Ultrasonic flowmeter is wall-mounted

            Ultrasonic flowmeter plate is mounted


   Ultrasonic flowmeter explosion-proof type

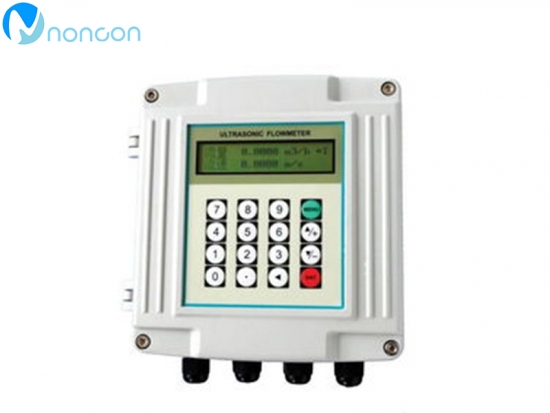

Wall-mounted TUF-2000FB

Used for wall mounting

Size178×165×55mm

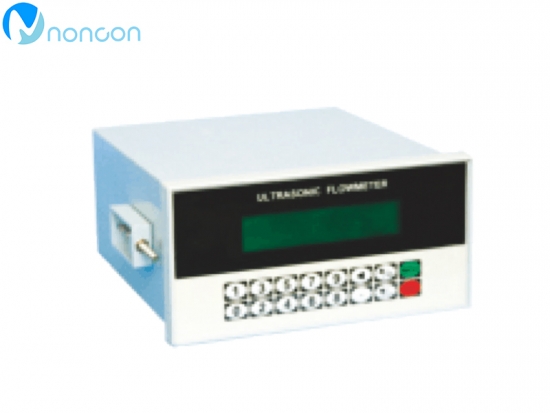

Disk type TUF-2000FS

For dashboard installation

Hole size152mm×76mm

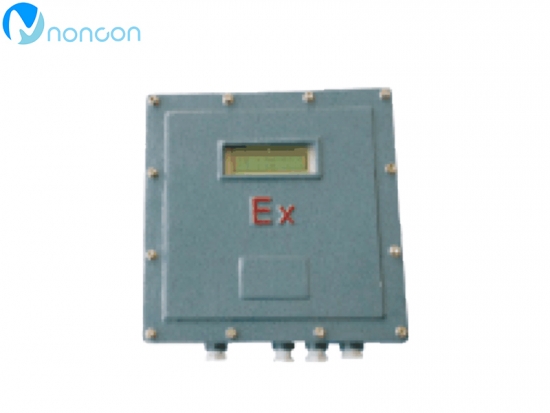

Explosion-proof type TUF-2000FD

Explosion-proof grade D II BT4, used in explosion-proof occasions

Size285×265×90mm

                                                                                                                                                                            Table 4

Optional sensors

Optional sensors

Basic model

Measuring range

fluid temperature

precision

source

import

export

communicating protocol

External clamping type

TS-1small-sized

TUF-2000BNB1

DN15-100mm

-30-90

±1%

A table Dc8-36 v


Secondary table


 AC220V or DC24V

3 channel 4-20ma analog input


2-3 wire Pt100 resistance signal input

Isolate RS232/RS485 input


2-way isolated OCT output


1 way isolated 4-20mA output (passive)

METER-BUS protocol


MODBUS protocol


Fuji extension protocol


Simple water meter protocol

TM-1(medium-sized)

TUF-2000BNB2

DN50-100mm

TL-1(large-scale

TUF-2000BNB3

DN300-6000mm

High temperature external clamp


TH2-1small-sized

TUF-2000BNB4

DN15-100mm

-30-160

THM-1(medium-sized)

TUF-2000BNB5

DN300-1000mm

Plug-in


TC-1(Standard insertion)

TUF-2000BNC1

DN80-6000mm

-40-160

TLC-2(Extended insert)

TUF-2000BNC2

Section type


Standard section type

TUF-2000BNG

DN15-1000mm

-40-160
