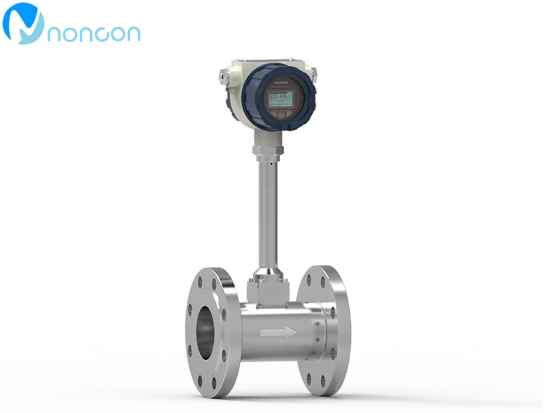

LUGK Multi Variable Type Vortex Flow Meter

Mass vortex flowmeter, simple to install. Connection mode: flange and clamping connection.

It has superior reliability and stability due to no movable part, and the detecting portion has only a simple configuration of the vortex generator. Low pressure loss, no leakage point, and high safety performance.

Robust sensor construction for high temperature (up to 3500 ° C), high pressure fluid.

  • Product Origin:

    China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    Spot
  • MOQ:

    1
Product Details

Features

■Install a temperature sensor in the vortex flowmeter, and take the flow sensor sleeve as a temperature sleeve to isolate the vortex flow and the temperature sensor from the process, thereby ensuring easy verification and replacement.

■Temperature compensation capability of saturated steam, the density is calculated from the process temperature, and the calculated density is used to provide a temperature compensated mass flow.

■Improve the performance in saturated steam, as electronic components compensate for changes in process temperature, thereby improving performance in saturated steam.

■Reduce the installation cost, the multivariable vortex flowmeter do not require an external temperature sensor.

■Equipped with a flow totalizer providing additional functionality, integrating a multivariable vortex flowmeter with a pressure transmitter for full pressure and temperature compensation of superheated steam and various gases.


Product Classification

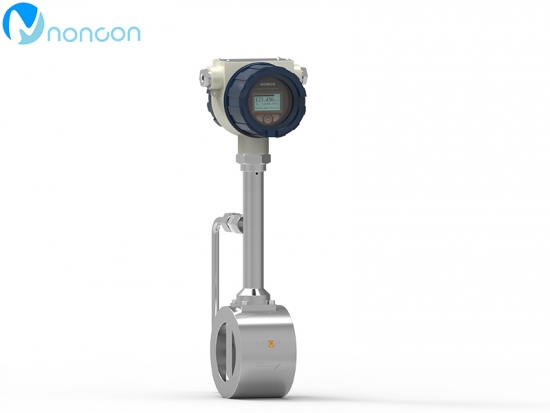

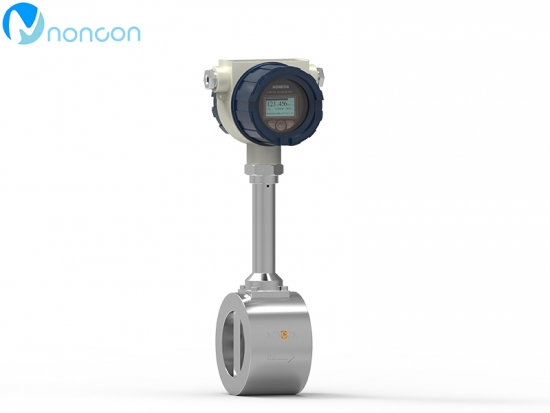

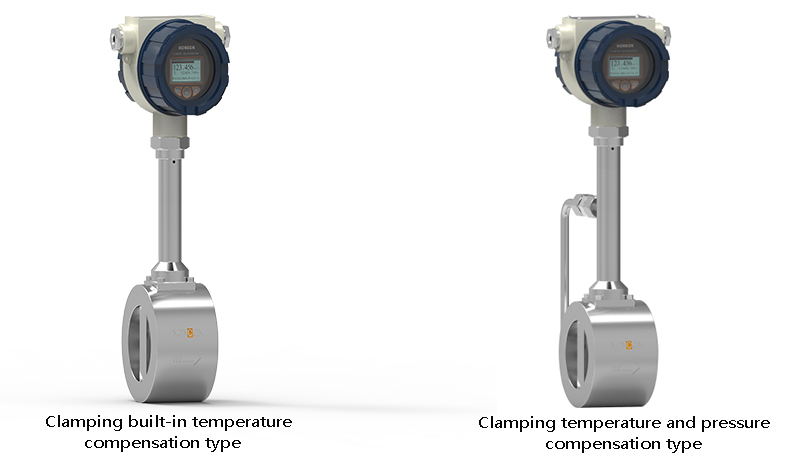

1、Clamped multivariate vortex flowmeter

1、Clamped multivariate vortex flowmeter

No moving parts, long-term stability, simple structure for easy Installation and maintenance, temperature compensated mass flow accuracy: ±2.5% measured value (normal condition) Process temperature accuracy; 1 °C

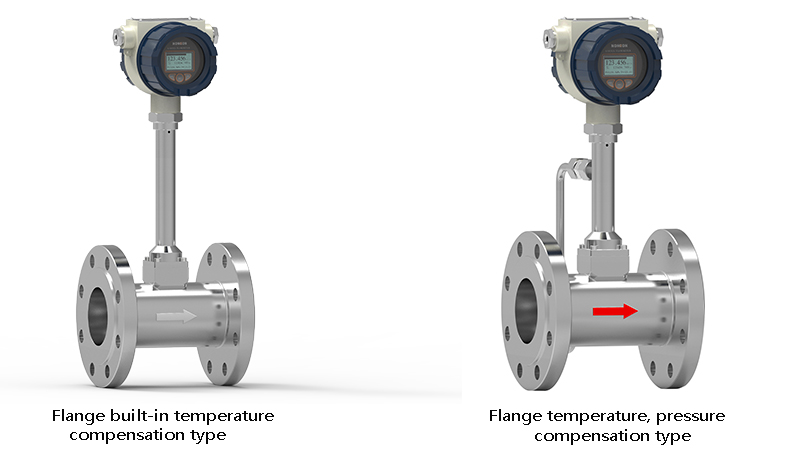

2Flanged multivariate vortex flowmeter

2、Flanged multivariate vortex flowmeter

Widely used in measurement of standard condition flow rate and mass flow of compressed air, saturated and superheated steam, natural gas and various medium in medium and small pipes.


Product selection                                                                                                                      Table 1

Model

               Interpretation

LUGK

¨

¨

¨

¨

¨

¨

Full tube type vortex flowmeter

Connection mode

1

Flange connectionfor full tube vortex flowmeter

2

Flange clampingfor full tube vortex flowmeter

Measured medium

1

liquid

2

general gas

3

compressed air

4

steam

inside nominal diameter

00

15mm

01

20mm

02

25mm

03

32mm

04

40mm

05

50mm

06

65mm

08

80mm

10

100mm

12

125mm

15

150mm

20

200mm

25

250mm

30

300mm

Compensation

T

Temperature compensationsuitable for saturated steam

P

Pressure compensationsuitable for saturated steam

F

Temperature and pressure compensationsuitable for superheated steam and compressed air

Output type

B

IntelligentLithium battery power supplystatus displayDual power supply, pulse output optional

C1

Intelligent:24VDC power supplystatus display、output 4-20mA(pulse output optional

C2

Intelligent:24VDC power supplystatus display、output two-wire system 4-20mA HART communication、(pulse output optional

C3

Intelligent:24VDC power supplystatus display、RS485 communication、(Dual power supply, pulse output optional

material quality

S

304 stainless steel

L

316(L)stainless steelCustomized,long supply cycle

Explosion-proof

N

Non-explosion-proof type

E

Explosion-proof type,ExdIICT6

Pressure grade

P

ConventionalRefer to Table 3)(customization for high pressure, long supply cycle


Installation size

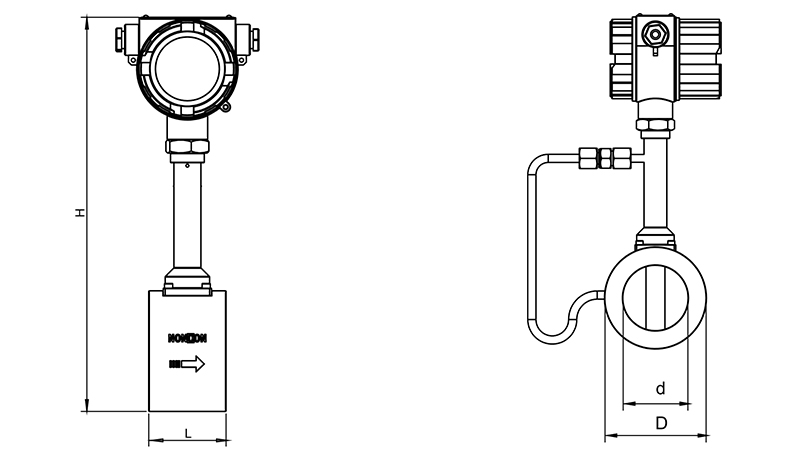

1、Installation dimensions of the clamped vortex flow meter(Fig.1)(Table 2)

Fig.1 Structure style

Clamping type vortex flowmeter

Table of flowmeter outline dimension(unit:mm)                                                                         Table2

Nominal diameter

Body length L

Internal diameter d

External diameter D

Meter height H

15

80

15

69

350

20

80

20

69

350

25

80

25

69

350

32

80

32

69

353

40

80

40

80

357

50

80

50

88

367

65

80

65

105

385

80

80

80

120

397

100

80

100

148

417

125

85

125

175

442

150

90

150

195

467

200

105

200

250

520

250

120

250

300

570

300

120

300

350

620

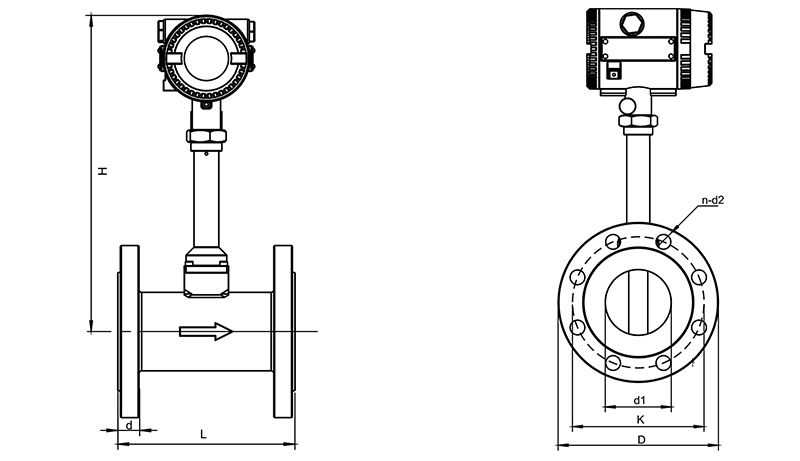

2、  Installation dimensions of flange type vortex flowmeter(Fig.2)(Table 3)

Fig.2 Structure style

flange type vortex flowmeter

Flowmeter outline dimension(Unit:mm)                                                                             Table 3

Nominal diameter

Internal diameter

d1

Flange outer diameter

D

Overall length

L

Center pitch

K

Flange thickness

b

Bolt aperture

d2

Bolt number

n

Overall height

H

15

15

95

200

65

14

14

4

323

20

20

105

200

75

16

14

4

323

25

25

115

200

85

16

14

4

323

32

32

140

200

100

18

18

4

317

40

40

150

200

110

18

18

4

322

50

50

165

200

125

20

18

4

327

65

65

185

200

145

22

18

8

334

80

80

200

200

160

24

18

8

344

100

100

235

250

190

26

22

8

354

125

125

270

250

220

28

26

8

366

150

150

300

300

250

30

26

8

379

200

200

360

350

310

32

26

12

404

250

250

425

450

370

35

30

12

429

300

300

485

500

430

38

30

16

454
