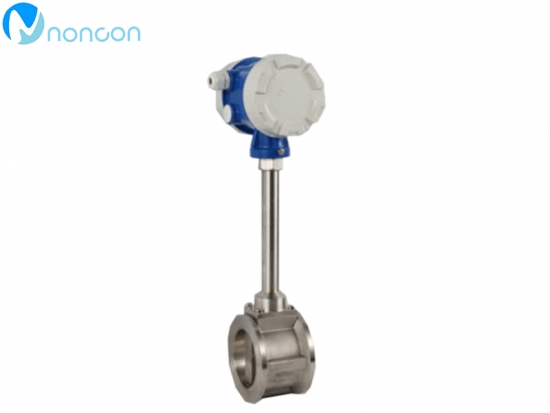

The LUGB type vortex flowmeter is a new type of flowmeter introduced by our company, the design of which is reasonable and the function is powerful, it also has linear correction function, reaching the world advanced level. The flowmeter adopts a high-resolution low-power full dot-matrix LCD display, which is clear and intuitive and it’s easy to operate. RS485 or HART communication can meet various needs of users; 12 kinds of compensation algorithms can almost satisfy all flow compensation calculations. Correction curve relying on external data and calibration method based on standard signal lead the trend of instrument calibration.
Product Origin:
ChinaItem NO.:
LUGB-1-4-50-F-A-15-LShipping Port:
Huangpu portColor:
SilverLead Time:
SpotPayment:
TTMOQ:
1Price:
$732/setMarket Price:
$855Price Range:
1-5/732.5$Features
■The accuracy is high, the accuracy of measuring liquid is usually 11.0%, and the accuracy of measuring gas is ±1.5%;
■The measurement range is wide, and in the range of Reynolds number is 2×104~7×106, it can reach 1:20;
■Low pressure loss（about 1 /4-1 /2 of the orifice flowmeter）, which belongs to the energy-saving flow instrument;
■The installation method is changeful. It can be installed horizontally, vertically and at different angles according to different process pipelines;
■It adopts ultra-low-power single-chip microcomputer technology. For one 3V10Ah battery, can be used for more than 5 years;
■Adopts EPROM to conduct power fail safeguard to the accumulative flow, and the effective protection time is more than 10 years;

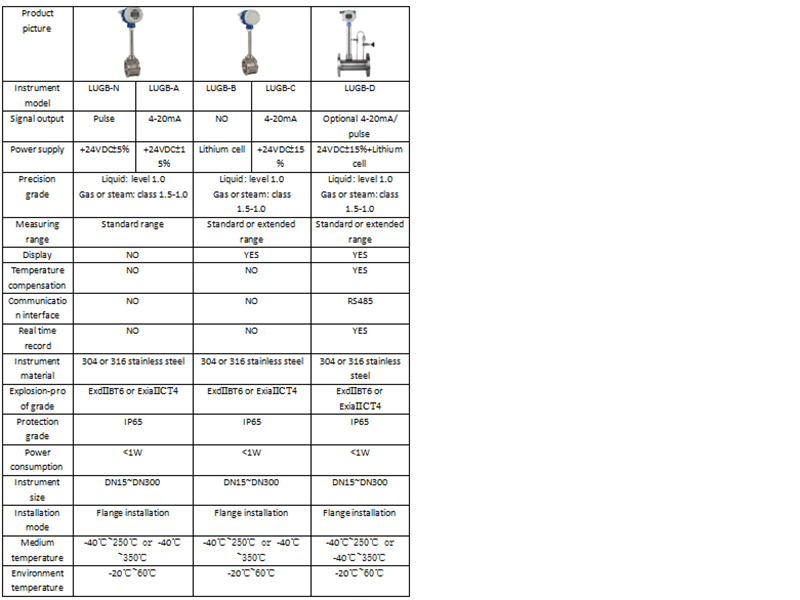

Product Classification Table 1
Product selection Table 2
|
Model |
Interpretation |
||||||
|
LUGB |
□ |
□ |
□ |
□ |
□ |
□ |
Full tube vortex flowmeter |
|
LUCB |
□ |
□ |
□ |
□ |
□ |
□ |
|
|
Connection mode |
1 |
|
|
|
|
|
Flange connection（for full tube vortex flowmeter） |
|
2 |
Flange clamping（for full tube vortex flowmeter） |
||||||
|
3 |
Simple plug-in (suitable for plug-in vortex flowmeter) |
||||||
|
4 |
Ball valve plug-in (suitable for plug-in vortex Flowmeter) |
||||||
|
Measured medium |
1 |
liquid |
|||||
|
2 |
General gas |
||||||
|
3 |
Compressed air |
||||||
|
4 |
Steam |
||||||
|
Nominal diameter |
00 |
15mm |
|||||
|
01 |
20mm |
||||||
|
02 |
25mm |
||||||
|
03 |
32mm |
||||||
|
04 |
40mm |
||||||
|
05 |
50mm |
||||||
|
06 |
65mm |
||||||
|
08 |
80mm |
||||||
|
10 |
100mm |
||||||
|
12 |
125mm |
||||||
|
15 |
150mm |
||||||
|
20 |
200mm |
||||||
|
25 |
250mm |
||||||
|
30 |
300mm |
||||||
|
|
Plug - in direct indication of nominal size |
||||||
|
Compensation |
N |
Uncompensated |
|||||
|
T |
Temperature compensation(Suitable for steam measurement) |
||||||
|
P |
Pressure compensation（Suitable for compressed air measurement） |
||||||
|
F |
Temperature and pressure compensation |
||||||
|
Converter type |
N |
Sensor type: +12V or +24V power supply, output three-wire pulse signal |
|||||
|
A |
Transmitter type: +24VDC power supply, output two-wire 4 ~ 20mA |
||||||
|
B |
Intelligent type: lithium battery power, no signal output field display |
||||||
|
C |
Intelligent type: +24V power supply, field display and output 2-wire system 4~20mA |
||||||
|
C1 |
Intelligent type: +24V power supply, field display and RS485 communication protocol |
||||||
|
C2 |
Intelligent type: +24V power supply, field display and HART communication protocol |
||||||
|
Explosion-proof grade |
N |
Standard type, not explosion-proof |
|||||
|
E |
Flameproof type,ExdⅡBT6 |
||||||
Example: a flange-clamped standard vortex street flowmeter is selected to measure steam. The pipe is DN50, and the field needs to display the flow rate and transmit the current signal. The product model should be:LUGB-2405NCN.

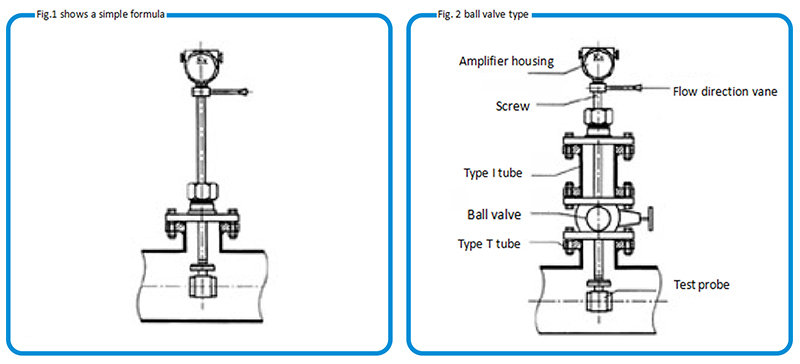

Installation and dimensions of plug - in vortex flowmeter
1. Structure form
2. Simple installation method of flow meter
●To meet the requirements of the straight pipe flowmeter installation point open a Φ 100 round.
●Use Φ109 x 4.5mm base section and open good mouth round the welding line, base after welding visual inspection may not have obvious askew.
●Insert the velocity probe into the pipe, adjust the insertion depth so that the center of the probe and the central axis of the pipe want to be consistent, the Angle between the center line of the probe and the central axis of the pipe should not be more than 5 degrees, and then adjust the flow direction mark to make it the same as the flow direction of the fluid.
●Connect flange or ball valve to welded base and bolt.
3.Ball valve type flowmeter (with globe valve) installation and removal method
Technical requirements
●Non-injection size and materials are determined by the user according to the pressure strength and anti-corrosion requirements.
●The "mounting base" shall be in a correct position on the pipe without obvious deviation.
●Non-steel pipes may be clamped to fix the "mounting base" provided that the gap size shown in the drawing is 85mm so that the bolt M16 × 65 is bolted from the gap when installing the ball valve.
●Standard for flange connection dimensions: GB4216.4-84
The vortex flowmeter is a speed type flow instrument which has a wide range of uses. It is suitable for flow metering, measurement and control of liquids, steam and most gases.
The Insert Type vortex flowmeter is simple in structure and can be made into online installation type.Applicable to large diameter gas, steam flow measurement, etc.Easy installation, no pipe design.

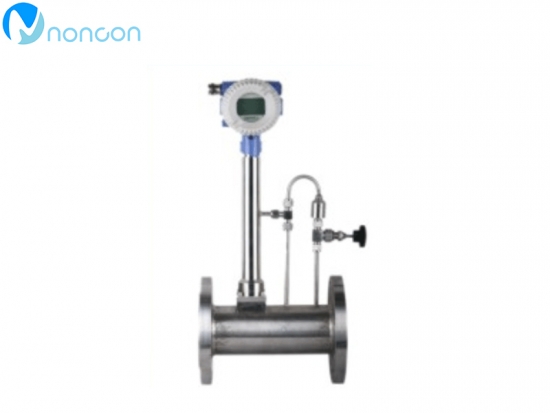

Mass vortex flowmeter, simple to install. Connection mode: flange and clamping connection. It has superior reliability and stability due to no movable part, and the detecting portion has only a simple configuration of the vortex generator. Low pressure loss, no leakage point, and high safety performance. Robust sensor construction for high temperature (up to 3500 ° C), high pressure fluid.
Ⅰ.General The vortex flowmeter is a speed type flow instrument which has a wide range of uses. It is suitable for flow metering, measurement and control of liquids, steam and most gases.
LUXQ series intelligent precision vortex flow meter can be widely used in industries such as petroleum, chemical, electric power, metallurgy, urban gas supply to measure various gas flows, which is the first choice for oil and gas transmission and metering and trade measurement.
■High measuring accuracy，application safe direction ■Wide application and long service life ■Adopt advanced high technology, low power consumption
LKQ thermal gas mass flow meter is a mass flow measurement and monitoring meter,which can detect air, natural gas, hydrogen, oxygen, chlorine, nitrogen and ammonia, ammonia, coal gas, phosgene, flue gas and various chemical mixtures, without pressure and temperature compensation. It can be widely used in petroleum, chemical, metallurgy, electric power, water treatment, paper, food, medicine, cement, textile and various production, scientific research units for process control and gas flow measurement. Widely used in: flow measurement of steel plant, coking plant gas.
Are widely used in tap water, heating, water conservancy, metallurgy, chemical industry, machinery and other industries, can be used for production monitoring, contrast, temporary flow test, traffic patrol, traffic detection is the necessary tool instrument, the built-in printer, can realize real-time screen printing, or print set in advance how much more than 20 items of measurement results.
This kind of turbine flow meter product does not have the field display function itself, but only transmits the flow signal in the form of pulse signal.The meter is low in price, high in integration, compact in size, especially suitable for use with secondary display instrument, PLC, DCS and other computer control systems.This kind of turbine flowmeter are explosion-proof products, explosion-proof level for: Exd Ⅱ BT6, Exid Ⅱ CT6.
P208 type pressure transmitter sensor adopted the advanced technology of microprocessor automatic linear error and temperature compensation, to ensure the long-term reliability of the product and quality, the circuit part in die casting aluminum shell external coating (blue) of epoxy resin, the signal transmitting module using the transient voltage protection circuit, ensure the harsh surge voltage can work normally in the environment, as well as the mechanical load is large in use for a long time also has long service life. Widely used in process control; Liquid level measurement; Boiler control; Environmental control;Metallurgy; Petrochemicals; Hydroelectric power; Process pressure measurement in medicine and food industry and process control pressure measurement in flameproof industry.
The LDB intelligent type electromagnetic flowmeter consists of a sensor and a converter. It is based on Faraday's law of electromagnetic induction, which is used to measure the volume flow of conductive liquid with conductivity greater than 5μs/cm. It is an inductive meter for measuring the volume flow of conductive medium. In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquids such as strong acid and alkali and uniform liquid-solid two-phase suspension liquid such as slurry, pulp and paper pulp. It is wdely used for flow measurement of petroleum, chemical, metallurgy, textile, papermaking, environmental protection, food and other industrial sectors and municipal management, water conservancy construction, rivers
P30 series pressure/differential pressure transmitters are available in a variety of structural forms and are designed with full isolation circuit technology, which can accurately measure pressure, absolute pressure, differential pressure, flow rate, vacuum degree and liquid level .This product has been widely used in petroleum, chemical industry, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, scientific experiment and aviation military industry pressure measurement. The P30 series transmitter has been designed with full isolation circuit technology to isolate the power supply and sensor signals, which greatly improves the stability and anti-interference ability of the whole machine.In addition to the three basic functions of adjusting zero position, measuring range and zero pressure fine adjustment of the previous intelligent transmitter, the paper also designs three key combinations on the display to complete online passive migration, set display unit of work, linear/square conversion, set damping time and fixed current output. P30 series transmitters also have the function of parameter data backup and recovery. When data data is damaged, the damaged data can be restored online through three buttons, and the modified data can be immediately backed up.The key function of transmitter can be realized by the communication software or manual operator produced by the company.
