LUGC Steam Gas And Liquid Insert Type Vortex Flow Meter

The Insert Type vortex flowmeter is simple in structure and can be made into online installation type.Applicable to large diameter gas, steam flow measurement, etc.Easy installation, no pipe design.

  • Product Origin:

    China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    Spot
  • MOQ:

    1
Product Details

Flow range of insert type vortex flowmeter                                                                                          Table1

caliber(mm)

Measuring range(m3/h)

caliber(mm)

Measuring range(m3/h)

liquid

gas

liquid

gas

250

80-1150

1060-10600

900

970-12000

13000-130000

300

130-1400

1540-15400

1000

1130-16900

17000-170000

400

180-2700

2700-27000

1100

1450-18000

19000-190000

500

280-4200

4240-42400

1200

1630-24400

24400-244000

600

410-6100

6100-61000

1300

2020-25300

27000-270000

700

580-7300

7800-78000

1400

2350-29500

31000-310000

800

720-10800

10850-108500

1500

2550-38000

38200-382000


Product selection                                                                                                                                    Table2

Mode

Interpretation

LUGC

¨

¨

¨

¨

¨

¨

insert type vortex flowmeter

Connection mode



1




Flange connectionfor full tube vortex flowmeter



2




Flange clampingfor full tube vortex flowmeter

Measured medium



1




Liquid



2




General gas



3




Compressed air



4




Steam

inside nominal diameter



250




250mm



300




300mm



400




400mm



500




500mm



600




600mm



700




700mm



800




800mm



900




900mm



1000




1000mm



1100




1100mm



1200




1200mm



1300




1300mm



1400




1400mm



1500




1500mm

Compensation



N




Uncompensatedsuitable for volume flow measurement occasions



T




Temperature compensationsuitable for saturated steam



P




Pressure compensationsuitable for saturated steam



F




Temperature and pressure compensation(suitable for superheated steam and compressed air

Output type



N




Sensor type:24VDC power supply, output three-wire pulse signal



A




Transmitter type:24VDC power supplyOutput current signal 4~20mA



B




IntelligentLithium battery power supplystatus displayDual power supply, pulse output optional



C1




Intelligent:24VDC power supplystatus display、output 4-20mA(pulse output optional



C2




Intelligent:24VDC power supplystatus display、output two-wire system 4-20mA HART communication、(pulse output optional



C3




Intelligent:24VDC power supplystatus display、RS485 communication、(Dual power supply, pulse output optional

accuracy class



2




2.0 level



3




3.0 level

material quality



S




304 stainless steel



L




316(L)stainless steelCustomized,long supply cycle

material quality



N




Non-explosion-proof type



E




Explosion-proof type,ExdIICT6

Pressure grade



P




Actual pressure gradecustomization for high pressure, long supply cycle


Installation and size of an insert type vortex flowmeter

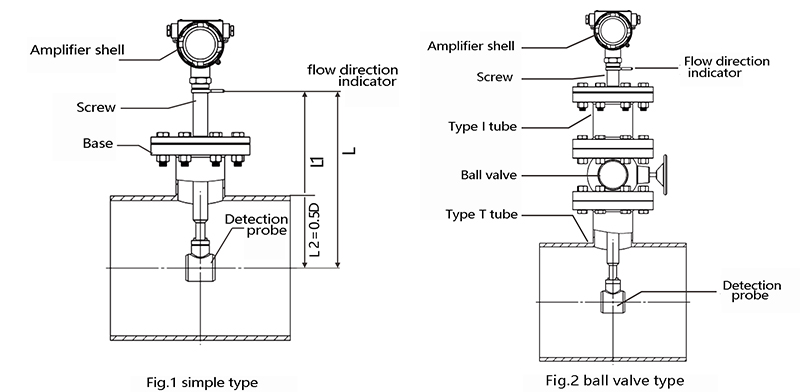

1. Structure style

Flow meter structure diagram


2. Simple flowmeter installation

■Open a φ100 circumferential notch at the mounting point that meets the requirements for the straight pipe section of the flowmeter.

■Use the lower pipe section of the φ109x4.5mm pedestal to weld to the circumferential notch, and no obvious skew after finish.

■Insert the speed probe into the pipe and adjust the insertion depth so that the center of the probe matches the center axis of the pipe. The angle between the center line of the probe and the center axis of the pipe should not exceed  degrees, and then adjust the flow direction indicator to be the same direction as the flow of the fluid.

■Dock the flange or ball valve with the welded base and fasten it with bolts.
