Ultrasonic Water Liquid TUF Flow Meter

The TUF series ultrasonic flowmeter utilizes the principle of low voltage and multiple

pulsation time difference, adopts the high-precision and ultra-stable differential transmission
of double-balanced signals and differential receiving digital detection technology to measure
the acoustic wave transmission time in both the downstream and counter-current directions,
and calculates the flow rate according to the time difference.It has the characteristics of
good stability, small zero drift, high measuring accuracy and high anti-interference of
measuring range over wide.


  • Item NO.:

    UF2000B
  • Lead Time:

    7 days
  • MOQ:

    1
  • Price:

    $470/
  • Market Price:

    $520
Product Details
When the ultrasonic wave velocity propagates in the liquid, the liquid flow will make a slight change in the propagation time. The variation of the propagation time is proportional to the liquid flow rate and zero flow rate. When the two transmitted gases emit and receive sound waves, the time required is exactly the same (the only technology that can actually measure zero flow rate).When the medium flows, the acoustic wave transmission time in the reverse direction is greater than that in the flow direction.Its relation conforms to the following expression:

Ultra-sonic flow meterLiquid ultrasonic flow meter

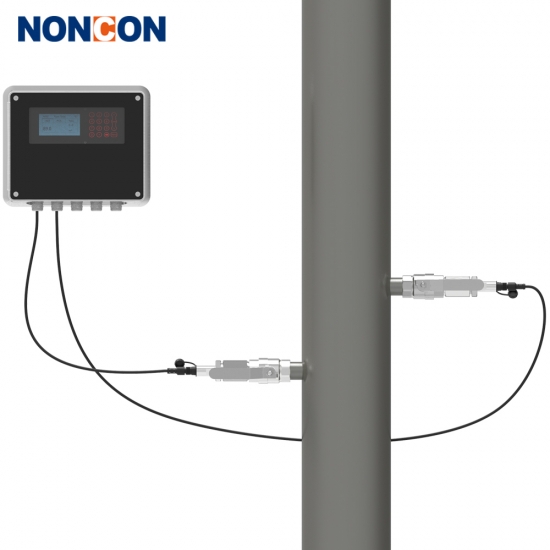

Plug-in ultrasonic flow meterPortable Ultrasonic flow meterLarge diameter pipe ultrasonic flow meterExternal clamped ultrasonic flowmeter

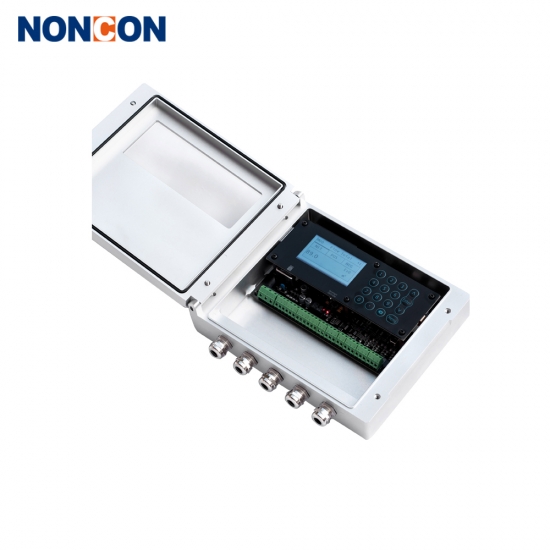

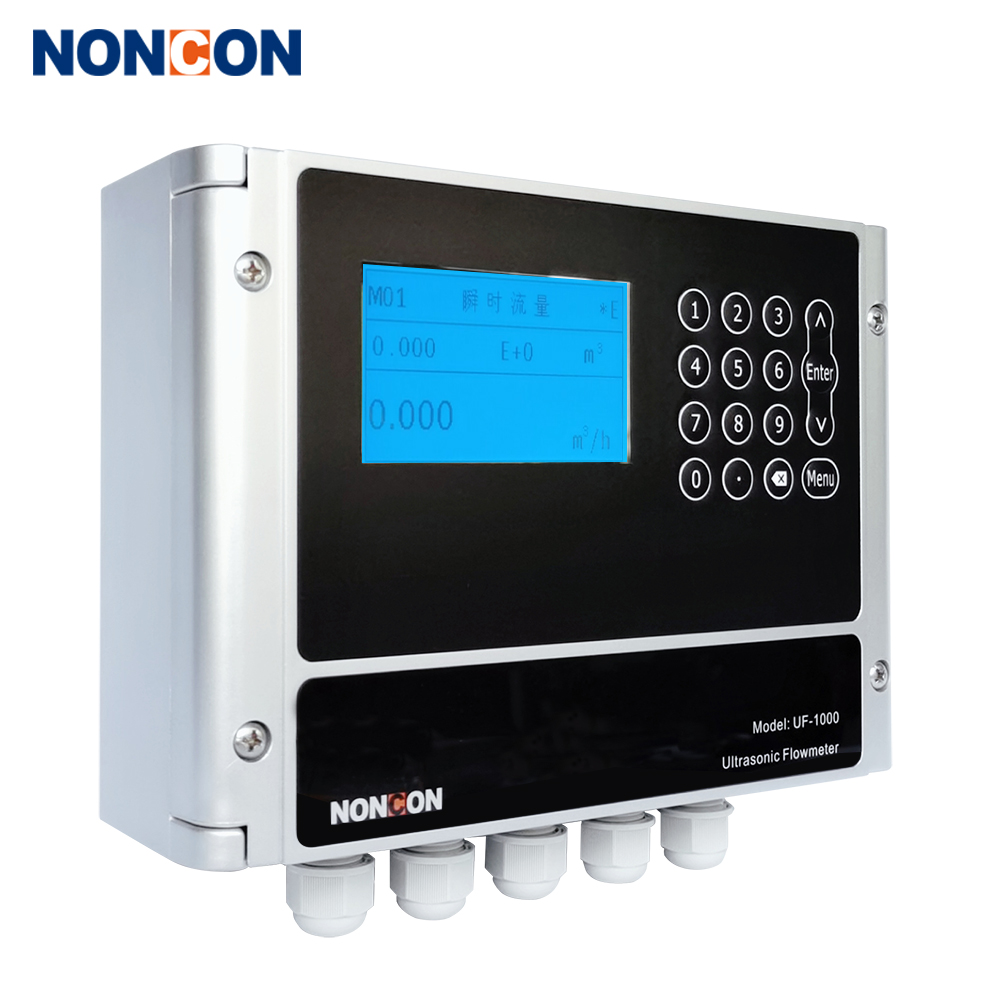

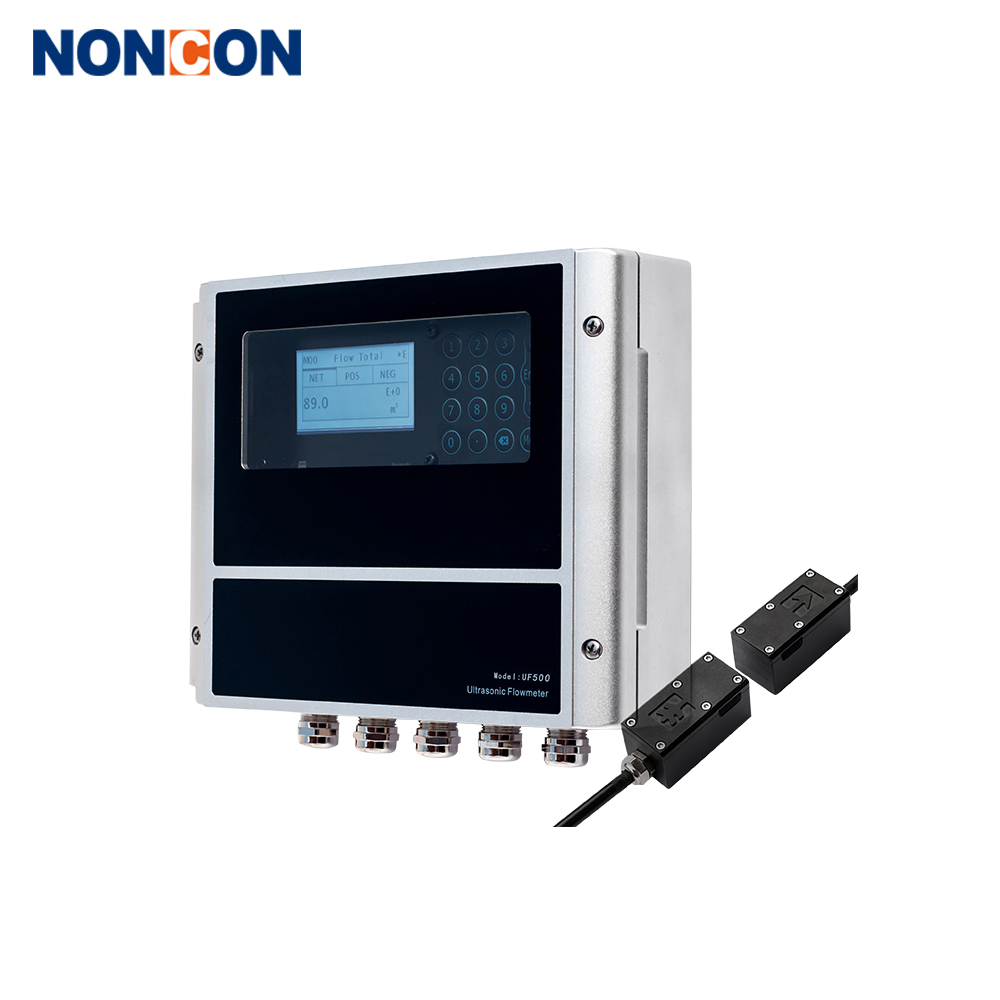

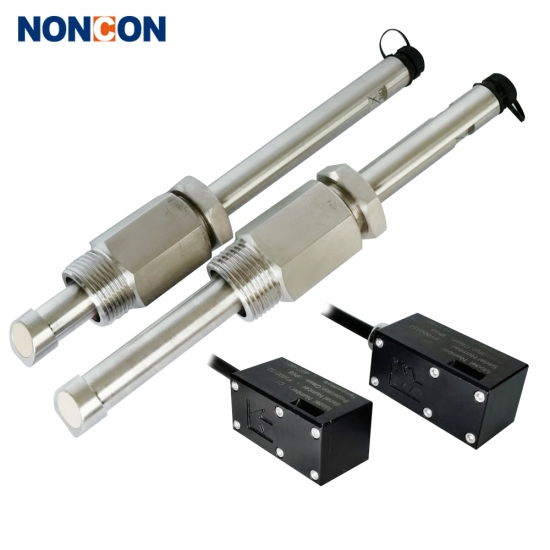

Portable ultrasonic flow meter Various Sensors ultrasonic flow meter Portable ultrasonic flow meter Wall mounted type ultrasonic flow meter
Ⅱ.Product features
■ High-accuracy survey
Line goodness is better than 1%, repeatability accuracy is better than 0.2%
■ Non-contact measurement
The flow measurement can be completed by adsorbing the magnetic ultrasonic flowmeter
sensor to the outer wall of the pipe.
■ Large measuring range
Different types of sensors can be used to measure the flow of the DN15-DN6000mm pipe.
■ Support Chinese and English menus
Different versions of Flowmeter, can support Chinese or English menus, convenient and fast;
■ Charge power supply
Built-in large-flow Ni-MH rechargeable battery, can support the flowmeter to work continuously
for more than 20 hours;
■ Built-in printer
Instant screen printing can be realized, and the measurement results of more than 20 items can
be set ahead of time.
■ Built-in data recorder
The measurement results of up to 20 items can be uploaded to the computer or network
communication.
