UF 1000 Wall Mounted Ultrasonic Flow Meter

UF 1000 is an economical jet - lag ultrasonic flow meter specially designed for water.Compared with other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption and high stability. In addition, it also continues the TGA technology independently researched.

  • Product Origin:

    China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    3~5 Working Days
  • MOQ:

    1
Product Details

Product features

■The UF 1000 can be combined with the RTD model and temperature sensor to become the energy meter of the heat and cold consumption of the metering supply, hot pipe, air conditioning and refrigeration pipe.

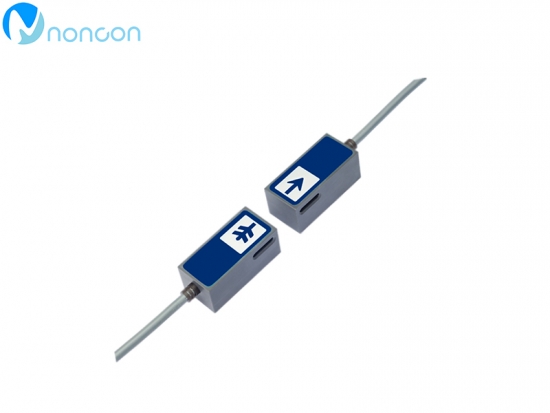

■Both plug-in and clip-on sensors are available, and a pair of sensors can be used for the common diameter.

■Ordinary standard plug-in sensor degrees of upper limit of 130 ℃.

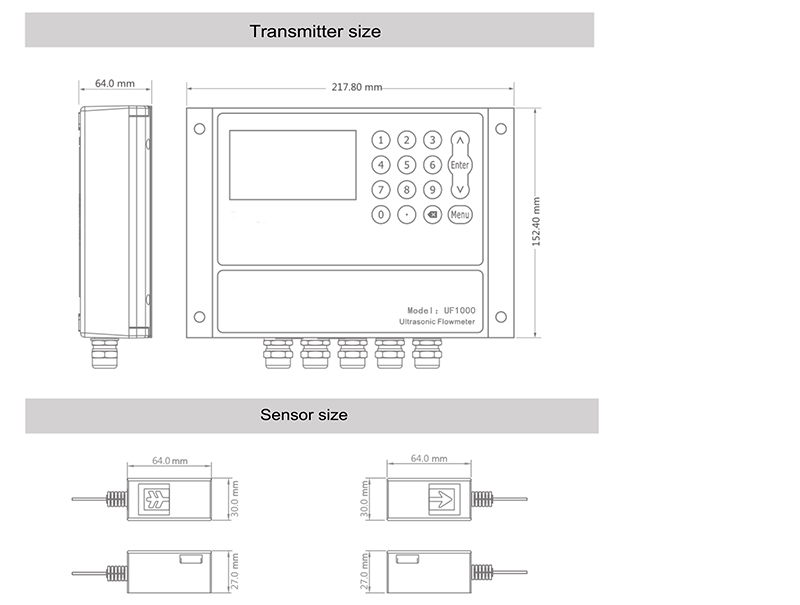

Product size

Ultrasonic flowmeter size


Selection information

Model

Transmitter

UF 500

wall - mounted ultrasonic flowmeter

Range:±0.03m/s~±5m/s

Accuracy:±1%

Repeat accuracy:0.2%

Display: 240*128LCD

Power supply: 10-36VDC@1A maximum

Transmitter shell: IP65, ABS (working temperature - 20 ~50 )

Output: OCT pulse output 0-10KHz, relay output 4-20mA

Communications: RS232 / RS485, Modbus protocol

Coding

Output

1

OCT, relay, RS232/485 , 4-20mA

2

OCT, relay, RS232/485 , 4-20mA,RTD

Coding

Sensor

CD01

Outside the clip-on,IP68.Working temperature: -40~ + 80

W1

Plug -in,IP68.Working temperature: -40~ + 130)

XXX

Cable length

030

Standard length is 9m

XXX

The maximum length can be extended to 274m

Coding

Temperature sensor

PT 1000

PT 1000 temperature sensor

Standard model: UF1000-1-CD01-030

Description: external clamp, OCT, relay, rs485/232, 4-20ma, cable length of 9 m.


Installation dimensions

Installation location

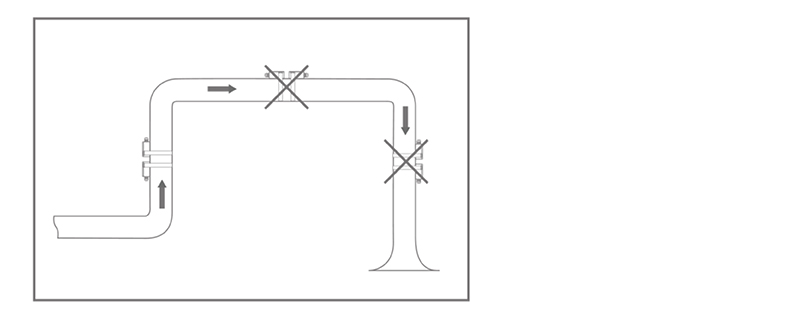

Measuring the full pipe state of the pipe is a prerequisite for the correct measurement of the flowmeter. If the gas volume is tight or a large number of bubbles are formed in the measuring tube, the error is increased. Therefore, please avoid the following installation locations.

The highest point of the pipeline, easy to accumulate air bubbles.

Install directly above the draining pipe.

Installation position of flow meter

Pipe down

In addition, in the downward drain pipe installed on the flow timing, it is recommended to install throttle orifice plate or a section of reducing pipe, to prevent pipe empty.


Installation direction

Vertical pipe

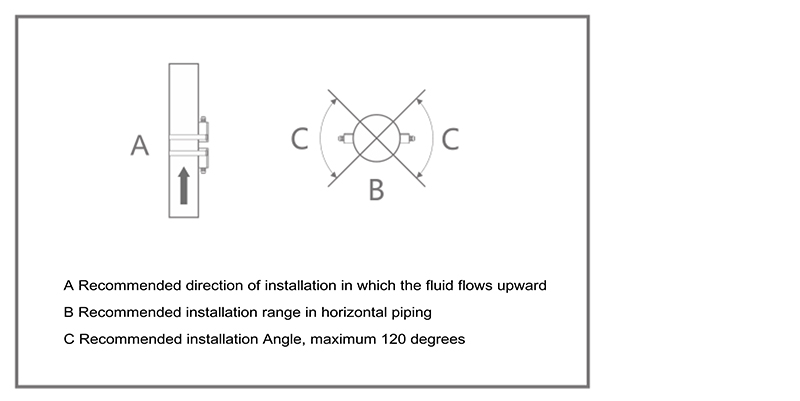

If it is necessary to install the sensor on a straight pipe, it is recommended to select the pipe whose flow direction is from bottom to top (view A) to select this installation position. When the pipe is in a static state, the solids in the pipe are suspended and the gas is suspended. Will rise, away from the sensor, such a camp can completely hang the air, and will not produce solid adhesion.

Direction of flowmeter installation

Horizontal pipeline

If it is necessary to mount the sensor on a horizontal pipe, it is recommended to install it in the area C shown in (View B) to avoid gas and air accumulation at the top of the pipe and the effect of deposits at the bottom of the pipe on the measurement.

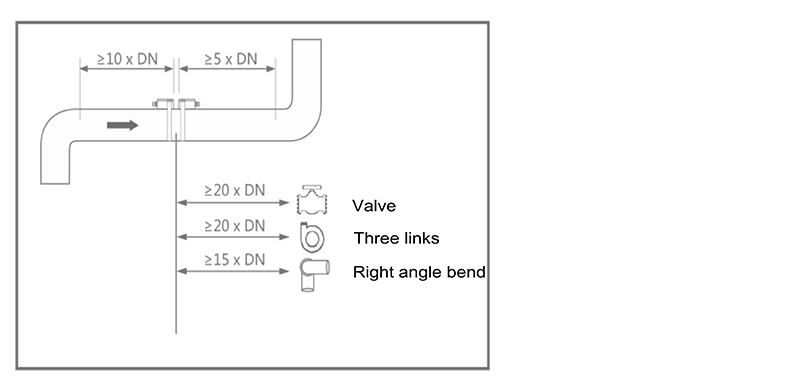

Front and rear straight pipe sections

When conditions permit, the sensor can be installed in a position to avoid valves, tees, elbows and other pipe fittings.In the presence of two or more disturbance sources, the length of the front and rear straight pipe segments recommended for the strongest disturbance sources should be observed.It is recommended to ensure the length of front and rear straight pipe segments as recommended in the figure on the right to ensure that the measurement accuracy specification is met.
