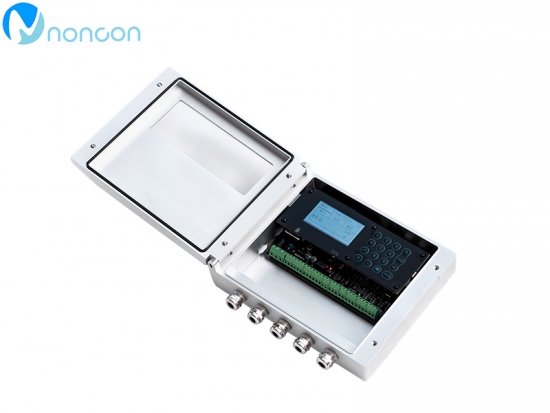

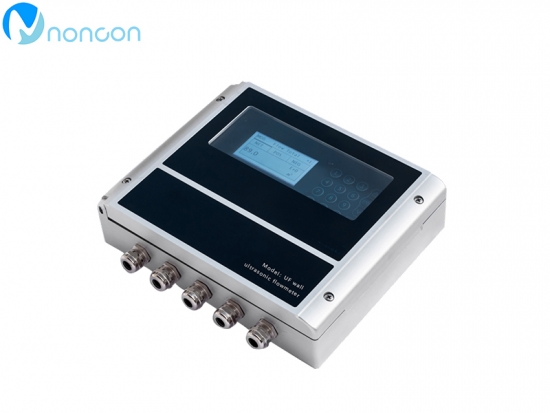

UF 500 Wall Mounted Ultrasonic Flow Meter

UF500 is a high-precision industrial-grade moveout type ultrasonic flow meter. It USES the latest industrial-grade PFGA chip of 700,000 gate array, which greatly improves the signal sampling frequency and bubble tolerance rate. The self-developed TGA technology enables it to process more complex logic and calculation, and realize more accurate and faster measurement.The flow meter can withstand discontinuous bubbles or impurities for 5 seconds.At the same time, it has the characteristics of simple installation and convenient use of ultrasonic flowmeter, which can be completed without breaking the pipe or stopping the water supply.

  • Product Origin:

    China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    3~5 Working Days
  • MOQ:

    1
Product Details

Product features

■Easy installation, high flexibility, a pair of sensors can be used for general pipe diameter.

■High accuracy (±0.5%), high reaction speed (sampling speed up to 300 times/s), low velocity measurement (maximum velocity up to 0.03 m/s).

■Single medium can be measured, can be widely used in water treatment, pure water, ultra-pure water, petroleum and chemical industry, air conditioning energy saving and other fields.

■Ordinary standard plug-in sensor cap a temperature of 130 ℃, and the upper limit of temperature 180 ℃ high temperature sensors.

■It can be extended to energy meter to measure energy consumption.


Measuring principle

Ultrasonic time difference measurement method refers to the measurement method of the fluid flow in the same stroke of the flowing fluid, which determines the average flow velocity along the flow direction by using the time difference of the propagation time of two ultrasonic signals traveling forward and backward.

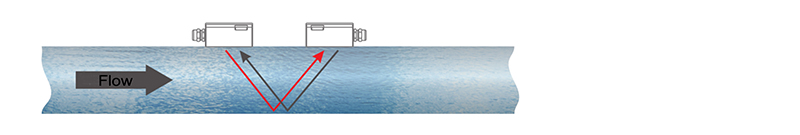

Measuring principle of ultrasonic flowmeter

Product parameters

Measuring medium

Single medium sound guiding liquid

Measuring range

±0.01m/s~±12m/s

Precision

±0.5%

Repeatability

0.1%

Measuring pipe diameter

25mm to 5000mm (25mm or less is a customized product, please contact us)

Output

Analog output :4~20mA, maximum load 7500.

Pulse output:0~9999Hz,OCT,(min.and max.frequency is adjustable)

Relay output: SPST, maximum 1Hz, (1A@125VACor2A@30VDC)

Communication

RS232RS485

Storage

TF card (which can be extended to 8G), note: data sent every 60S can be used for 12 years

Power supply

90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC

Display

240*128 LCD

Working temperature

Transmitter: - 40OF % ~ 140OF (- 40~ 60)

Sensors: - 40OF to 176OF (- 40~ 80, standard)

32OF to 356OF (0 ~ 180, the high temperature type)

Measuring environment

Relative humidity 0-99%

Protection grade

Transmitter IP65, sensor IP68

Cable

Double stranded shielded cable, standard length 9 m, can be extended to 274 m

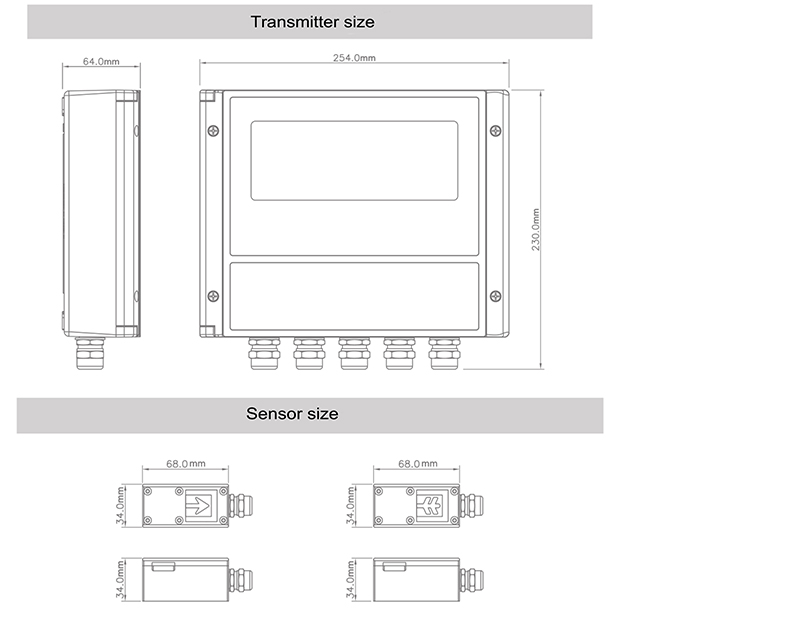

Product size

Ultrasonic flowmeter size

Selection information

Model

Transmitter

UF 500

Ultrasonic flowmeter

Wall-mounted

Flow rate range: ±0.01m/s~±12m/s

Accuracy: ±0.5%(within the measurement range)

Repeatability: 0.1%(within measurement range)

Display: 240*128LCD

Power supply: 90-250VAC,48-63Hz or 10-35VDC

Output: 4-20mA,OCT, relay output

Communications: RS232 / RS485, Modbus

Coding

Output

1

OCT, relay output, RS232/485 , 4-20mA

2

OCT, relay output, RS232/485 , 4-20mA,RTD

Coding

Sensor

C1

IP68 external pinch sensor

Working temperature: - 40OF ~ + 176OF (-40~ + 80)

C2

IP68 external pinch sensor

Working temperature: 32OF ~ + 356OF (0~ + 180)

W1

Plug-in sensor IP68

Working temperature:-40OF ~ + 266OF (-40~ + 130)

W2

Plug-in sensor IP68

Working temperature:32OF ~ + 356OF (0~ + 180)

XXX

Cable length

030

Standard length is 9 meters

XXX

The maximum length can be extended to 274 meters

Coding

Temperature sensor

PT 1000

PT 1000 temperature sensor

Standard products: UF 500-2-C1-030 ultrasonic external clip sensor 4-20mA, OCT, relay output RS485, cable length is 9 m.
