Ⅰ.General

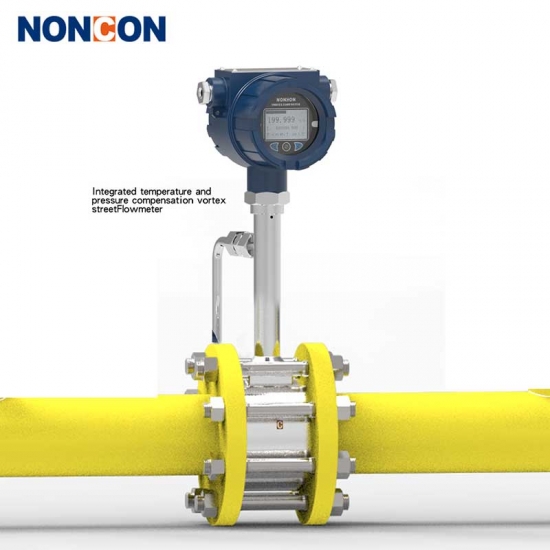

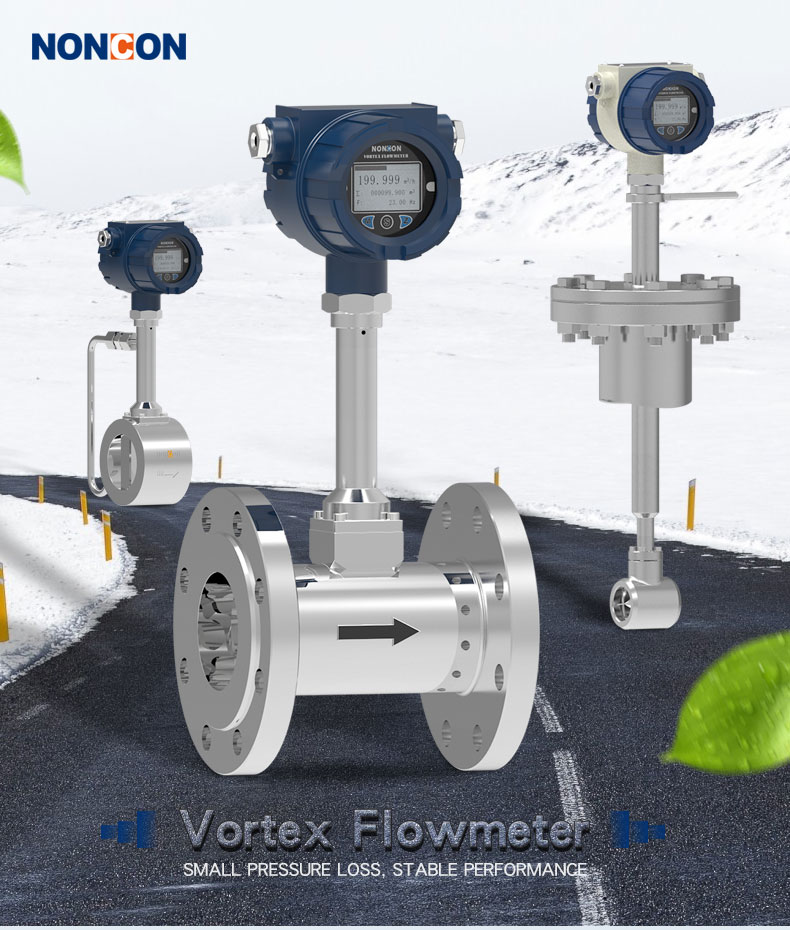

The vortex flowmeter is a speed type flow instrument which has a wide range of uses. It is
suitable for flow metering, measurement and control of liquids, steam and most gases.Product Origin:
ChinaItem NO.:
LUGB-1-4-05-F-C1-1.5Shipping Port:
Huangpu PortColor:
BlueLead Time:
7~10 daysPayment:
TTMOQ:
1Price:
$596.5/setMarket Price:
$664Price Range:
1-5/596.5$Vortex Flowmeter is a fluid oscillatory flow meter based on the principle of Carmen Vortex. When a non-streamlined cylinder is inserted into the flowing fluid, two rows of staggered vortices will be generated at the back of the cylinder.
III. Features
Vortex flow meter is without moving components, long-term stabilization, structure is simple for easy installation and maintenance. pulse frequency output of the sensor, its frequency is linear with the actual flow rate of the fluid measured and has no zero drift, the performance is very stable.

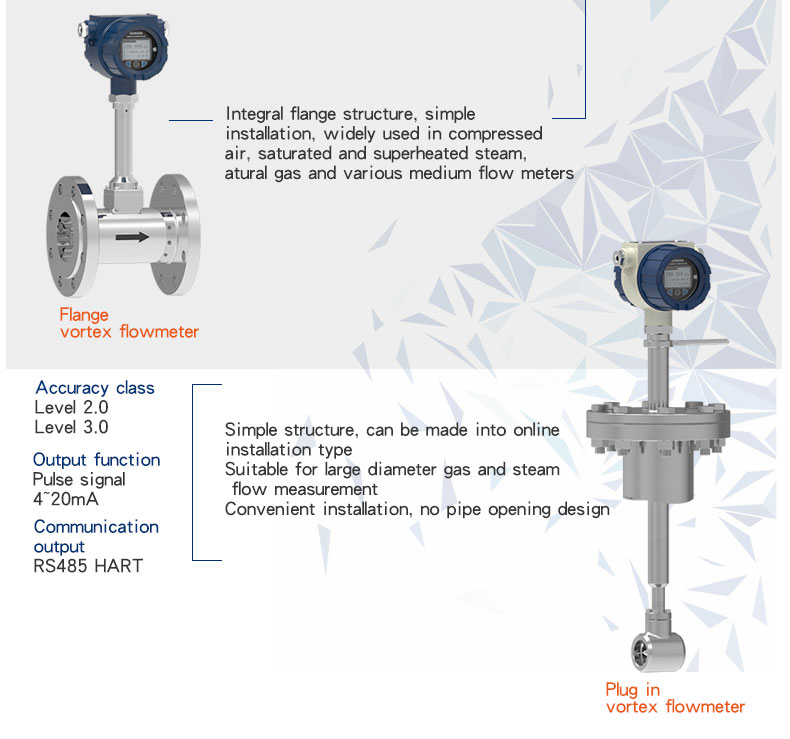

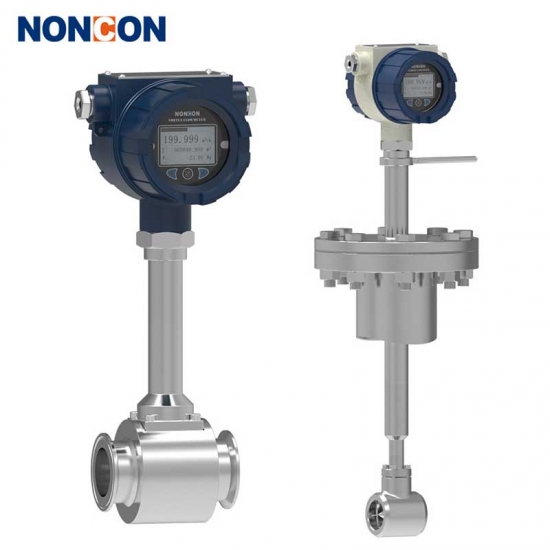

The structure is various in the form of pipeline and plug-in type flow sensors. High accuracy , the accuracy of measuring liquid is usually 11.0%, and the accuracy of measuring gas is ±1.5%. Wide measurement rang, and in the range of Reynolds number is 2×10 4~7×106, it can reach 1:20;
It has Low pressure loss（about 1 /4-1 /2 of the orifice flowmeter）, which belongs to the energy-saving flow instrument. various ways of installation method. It can be installed horizontally, vertically and at different angles according to different process pipelines. It adopts interference
cancellation circuit and anti-vibration sensor head, so it has certain anti-environmental vibration performance. Also it adopts ultra-low-power single-chip microcomputer technology. For one 3V10Ah battery, can be used for more than 5 years. The nonlinearity of the meter coefficient is corrected
by software to improve the measurement accuracy. Vortex flow meter Adopts EPROM to conduct power fail safeguard to the accumulative flow, and the effective protection time is more than 10 years.

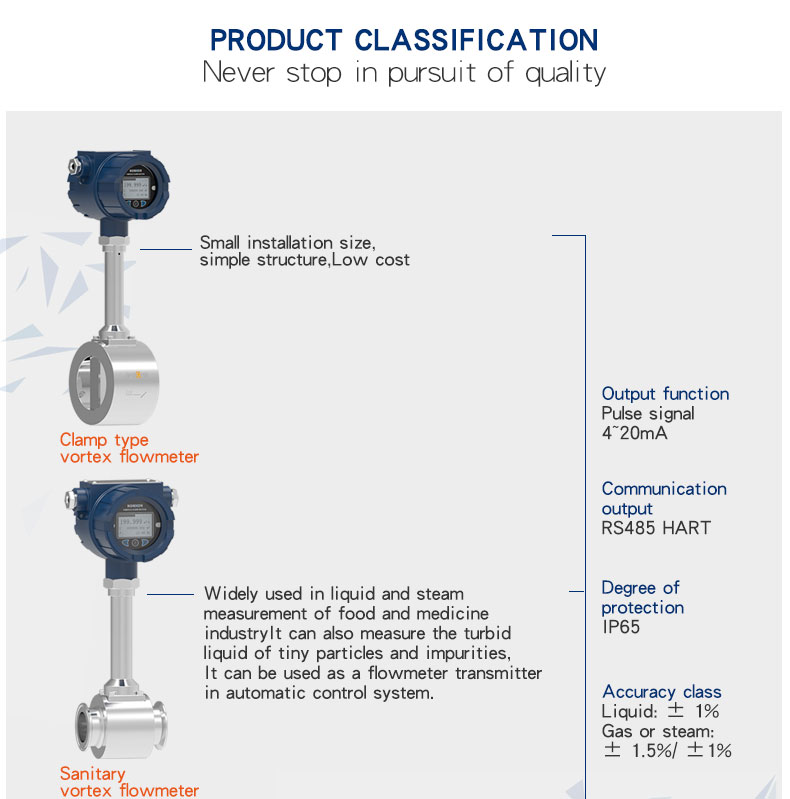

Ⅳ.Product Classification

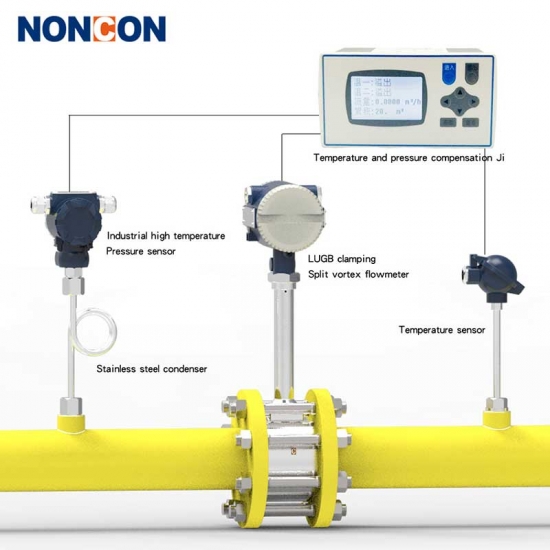

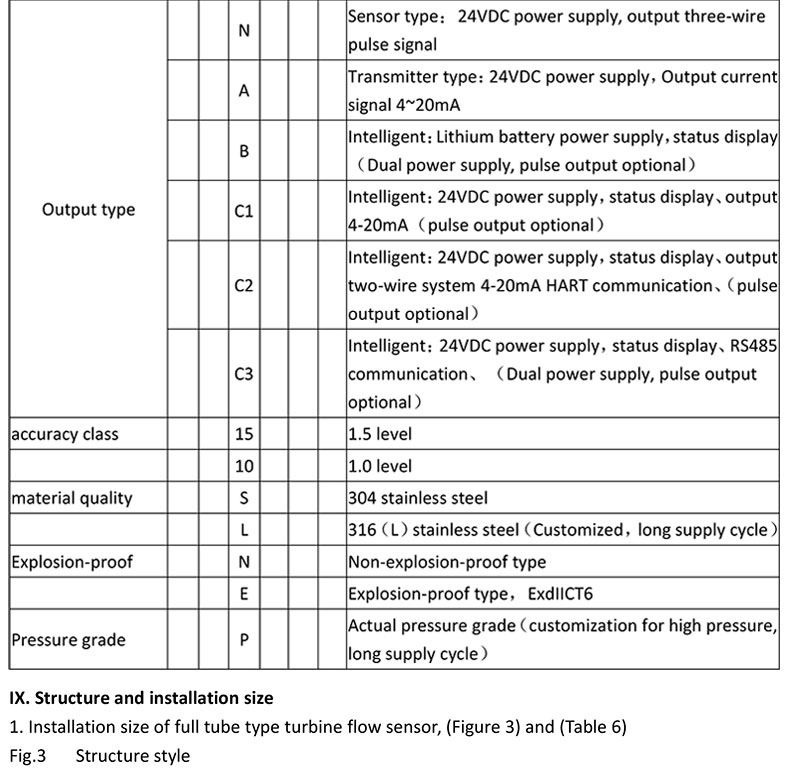

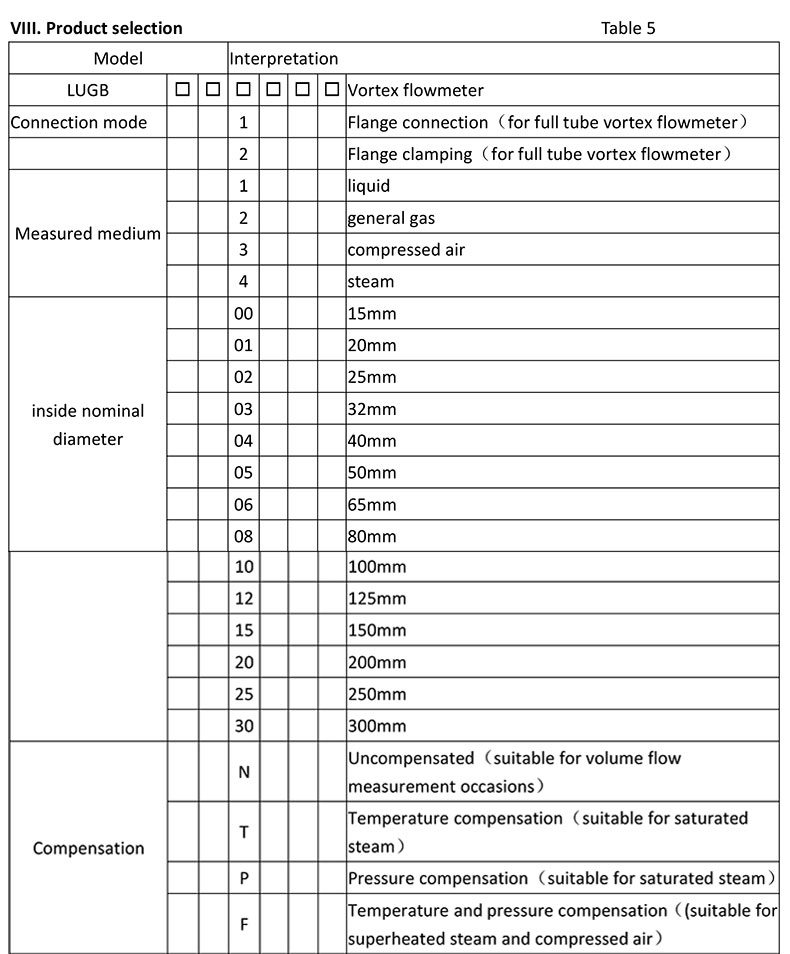

Instrument model: LUGB-N, LUGB-A, LUGB-B, LUGB-C, LUGB-D.
V. Technical parameter
Execution standard: Vortex Flowmeter(JJG1029-2007)
Nominal pressure:（M Pa） 1.6MPa、2.5MPa、4.0MPa（other high pressure customizable).
Accuracy class: Liquid：±1%
Gases or steam：±1.5%，±1%
Range ratio 1：10；1：20；
Sensor material quality: 304 stainless steel: 316(L) stainless steel.
Service condition:
Medium temperature: -40℃~+250℃、-40℃~+320℃
Ambient temperature：-20℃~+60℃
Relative humidity：5~95%
Atmospheric pressure：86KPa~106KPa
Signal output: Pulse signal、4~20mA signal
Communication output: RS485 communication、 HART communication.
Working power supply: External power: 24VDC ±15, ripple ≤ ±5, suitable for 4~20mA output, pulse output, RS485 communication output and other internal power sources: 1 group of 3.1V10AH lithium battery, the battery voltage in 2.0V~3.0V can work normally.
Signal line interface: Basic type: Hausmann connector or with its own three-core cable; Explosion-proof type：Internal thread M20×1.5.
Explosion-proof degree: ExiaⅡCT5 or ExdⅡBT6
Protection degree: IP65 or higher (customizable)

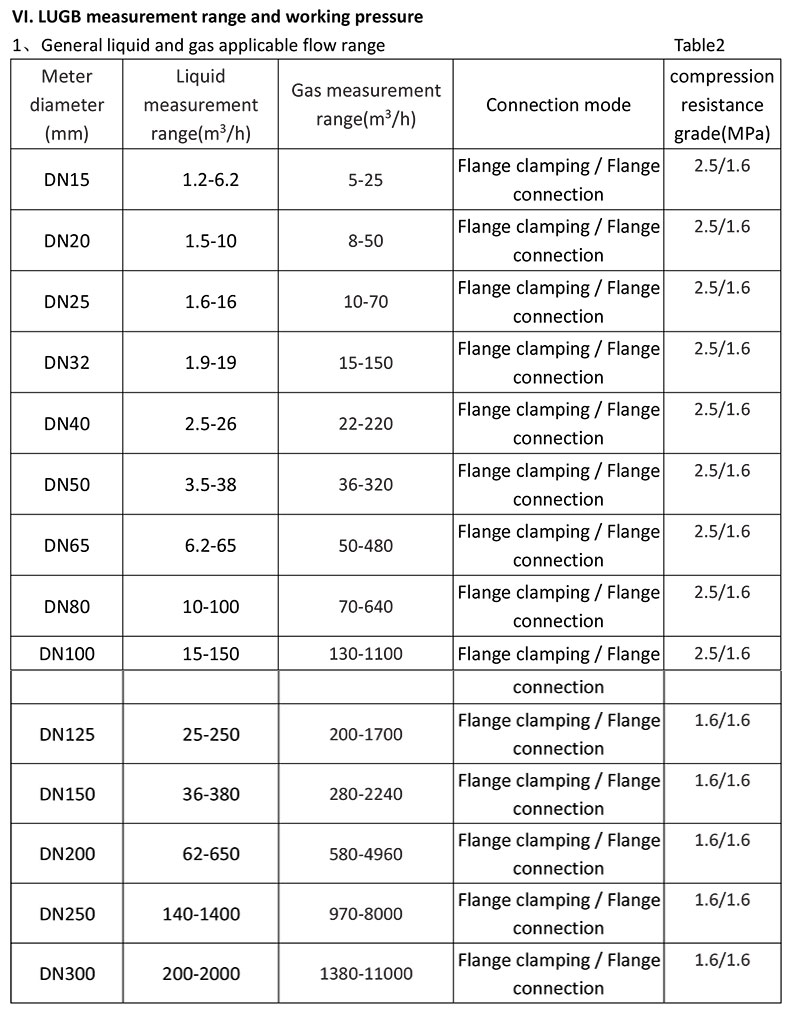

VII. Plug - in vortex flowmeter flow range
2. Installation and dimensions of plug - in vortex flowmeter
