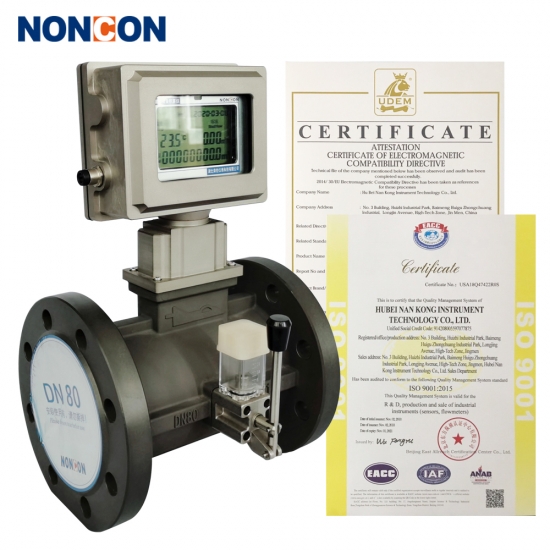

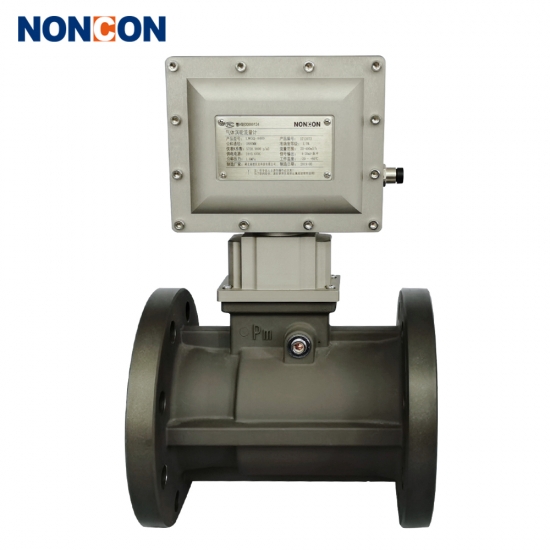

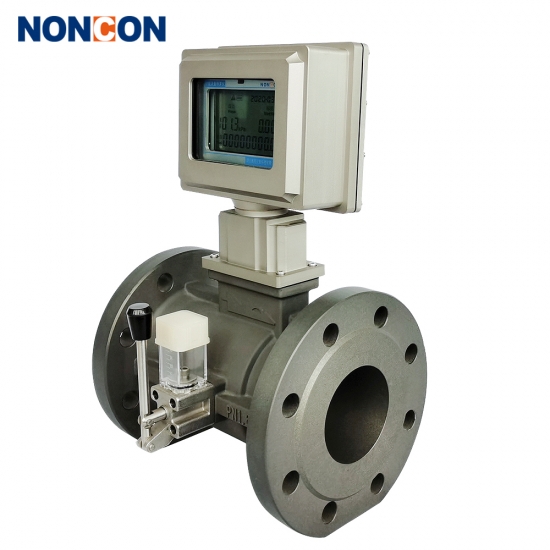

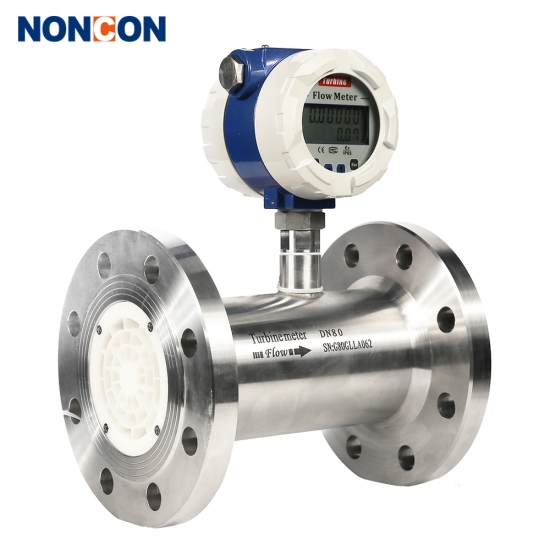

LWGQ Natural Compressed Gas Turbine Flowmeter Explosion-proof IP65

Features

■ High precision, good repeatability and wide range ratio,up to 1:20 (or wider);

■ Using new sensors, low starting flow, small pressure loss, anti-vibration and anti-pulsating flow performance is good, not easy to corrosion, good reliability, long service life.

■ Use a carefully designed dust-proof structure to ensure the reliability of long-term bearing operation;

■ Designed with a unique fueling system to ensure reliable fueling, easy maintenance and beautiful appearance;

■ The technical indicators meet the requirements of IS09951-1993, the length of the body is 3DN, and the whole machine has reached the international advanced level;

■ The volume corrector of the flowmeter can be rotated freely by about 350 degrees, which can be easily read in various installation modes.

■ Low speed, high life, low pressure loss, high precision; Adopt advanced micro - power technology, low power consumption. It can be operated by internal battery for a long time and by external power supply.

■ It integrates high-precision temperature, pressure, flow sensor and volume corrector, which can detect the temperature, pressure and flow of the measured gas, and automatically track

 and compensate the flow and correct the compression coefficient. The meter has real-time database and communicates via RS485 interface and meter reading network to facilitate centralized

data collection and real-time management;

■ Use high-performance microprocessor and modern digital filtering technology, with powerful software functions and superior performance;

■ High accuracy, generally up to ±1.5%R, ±0.5%R.

■ Use micro-power high-tech, with internal and external power supply, and low power consumption;

■ Local display flow value with multiple signal output functions;

■ Use a high-contrast three-line LCD display, it can display standard cumulative flow, standard volume flow, working volume flow, medium temperature, pressure value and battery capacity percentage

 with Chinese prompt;

■ With real-time data storage function,  it can prevent data loss when battery is replaced or suddenly power down. In the power-off condition, internal parameters can be permanently saved.

■ With explosion-proof function, the explosion-proof mark is ExdIIC6;

Product Classification

According to the meter function classification, the LWGQ series gas turbine flowmeter can be divided into two categories: 1.LWGQ type gas turbine flowmeter, 2. LWGZ type gas turbine flowmeter.

1.LWGQ Type Gas Turbine Flowmeter

（1）General

The LWGQ type gas turbine flowmeter integrates a turbine flow sensor and a flow totalizer.

It can measure gas temperature and pressure, working condition flow, standard condition flow and total amount,which can be used for gas flow and volume measurement and detection in industrial industries

such as petroleum, chemical, electric power, metallurgy.

（2）Features

■ It integrates the flow sensor and the volume corrector, which can automatically track and correct the temperature, pressure and compression factor of the measured gas, and directly detect or measure the

 standard working condition volume flow and total amount of the gas.

■ Use imported meter precision bearings, high accuracy and good stability.

■ Well-designed flow channel structure avoids the airflow between the bearings and improves the medium adaptability of the turbine flowmeter.

■ Unique anti-push structure and sealing structure design ensure reliable long-term operation of bearings.

■ Use a magnetoresistive sensor, it has the advantages of high sensitivity, good reliability and low starting flow.

■ Independent movement design, good interchangeability and easy maintenance.

■ Well-designed rectifiers with excellent rectification performance,  low requirements for straight pipe sections.

■ The network communication system is formed by RS 485 communication interface, which can facilitate automatic management. The RS485 communication protocol complies with the MODBUS specification.

■ The correcto can rotate freely at 350 degrees and is easy to install.

2. LWGZ Type Gas Turbine Flowmeter

General

LWGZ type gas turbine flowmeter integrates gas turbine flow sensor and electronic volume corrector. It can detect and display the working condition flow and total volume. The technical

 performance is at the domestic advanced level, complies with GB/T18940/IS09951 standard, which is widely used in gas metering and testing in industries such as steam and compressed air.

Product Modeling

                                                                                                                                                             Table 1

Dimensions

The dimensions of the flowmeter are shown in Fig.1 and Fig.2. The dimensions not marked in the figure are listed in Table 2. The flowmeter uses flange connection.

The unmarked dimensions in the figure are listed in Table 2

Installation

◇There must be no strong external magnetic field interference and strong mechanical vibration near the flowmeter. Before installation, the ambient condition shall be checked according to

 its requirements for normal use.

◇The flowmeter shall not be used in applications where the flow rate is frequently changing and there are strong pulsating flow or pressure pulsation.

◇ When the flowmeter is installed outdoors, the upper part shall be covered to prevent the rainwater from entering and the sun exposure to affect the service life of the flowmeter;

◇The helium flowmeter is applicable for horizontal installation, and the fluid flow direction is consistent with the direction indicated on the housing; and the length of the straight pipe section

 of 5DN and 3DN shall be ensured respectively on the upstream and downstream of the flowmeter;

◇ In order not to affect the normal  fluid flow, the bypass pipe can be installed as shown in Fig.3, and the bypass pipe valve must be locked during normal use;

◇At the upstream of the flowmeter (≥5DN), it must install the filter of the corresponding specification(the company can match);

◇ When installing the flowmeter and measuring pipe, is shall consider installing telescopic pipe or bellows, and according to the actual dimension of the flowmeter, properly lay the upstream and

 downstream pipes to minimize the deformation of the flowmeter caused by pipe stress;

◇ The flowmeter shall be installed coaxially with the pipe and prevent the gasket and grease from entering the pipe cavity;

◇ The flowmeter must be reliably grounded as specified, but it must not share the ground wire with the high-power system; when the pipe is installed or repaired, the ground wire of the welding system

 must not be overlapped with the flowmeter;

◇ In the process of use, the user shall not change the connection mode of the explosion-proof system and arbitrarily change the lead interface. If necessary, it shall be operated in strict accordance with

 the relevant requirements of GB3836.12;

◇ When the flowmeter is in operation,it shall open the valve slowly(opening time is not less than 15s), and the flow rate shall be gradually increased to avoid instantaneous airflow impact and damage the turbine.
