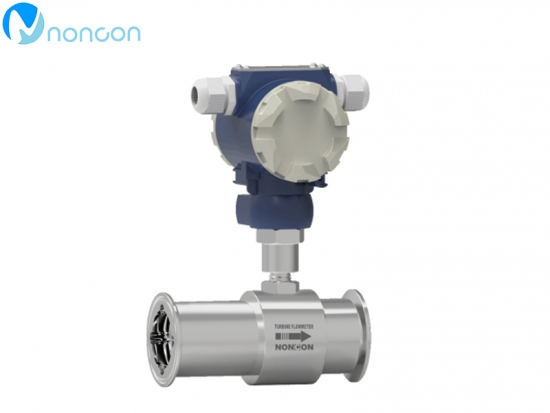

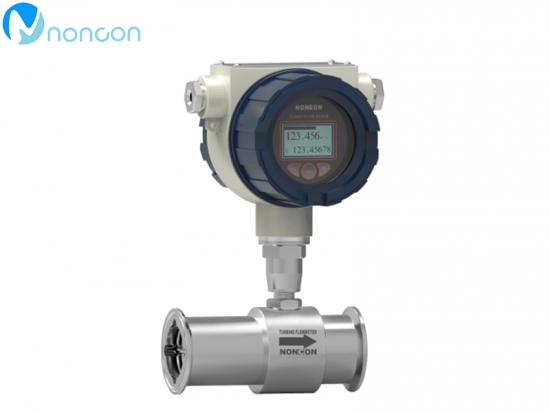

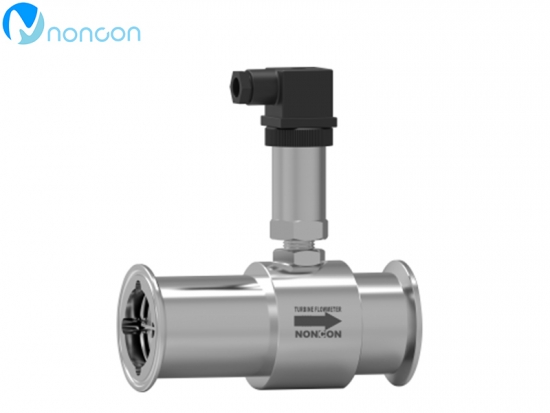

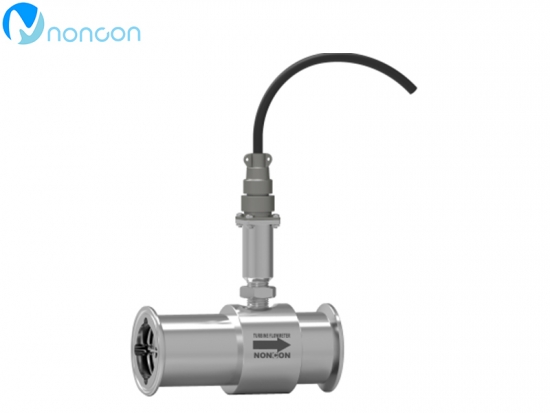

LWGS series sanitary type turbine flowmeter is a flowmeter meter that can be widely used in pharmaceutical, food, beverage and other industries for applications of metering, batching, control, finished product filling.
Product Origin:
ChinaShipping Port:
Huangpu portLead Time:
SpotMOQ:
1Features
■ International standards is used and the product can replace similar imported products
■ Anti-corrosion and anti-rust material are used, suitable for the sanitary industry
■ Quick-connect structure is used, easy to install and maintain
■High precision and good repeatability
■High quality turbine, beyond the conventional range

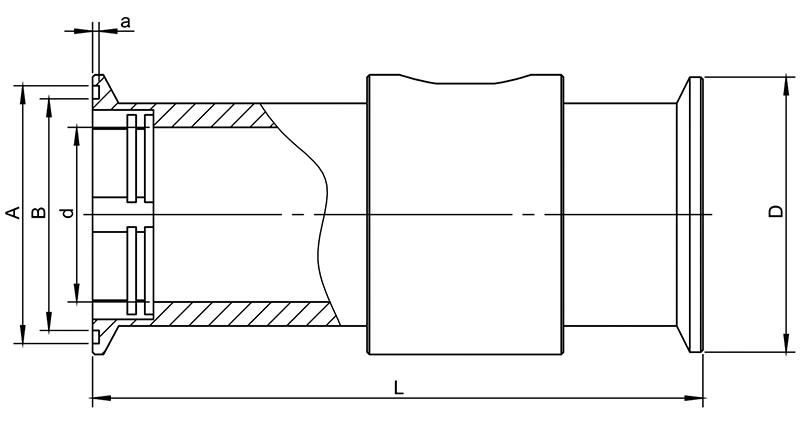

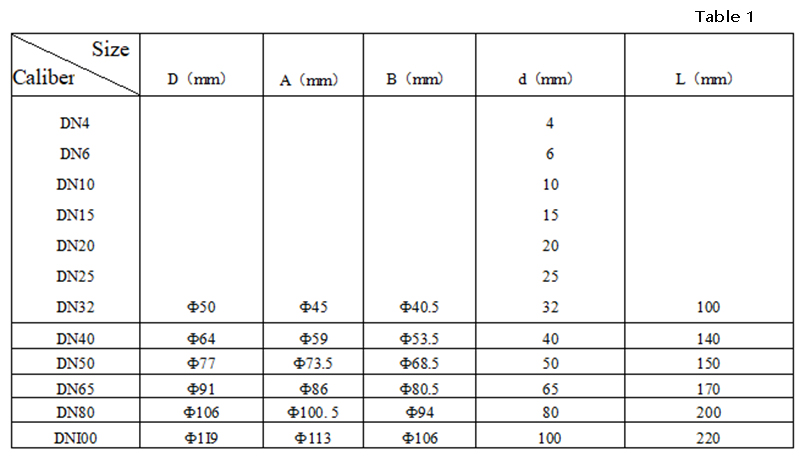

Dimensional drawing

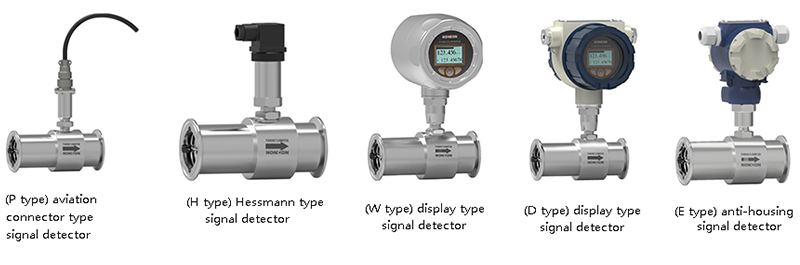

Detector Type
Meter Selection
Table 2
|
Model |
Description |
|||||
|
LWGS- |
¨ |
/¨ |
/¨ |
/¨ |
/¨ |
|
|
Nominal diameter |
4 |
DN4mm |
||||
|
6 |
DN6mm |
|||||
|
10 |
DN10mm |
|||||
|
15 |
DN15mm |
|||||
|
20 |
DN20mm |
|||||
|
25 |
DN25mm |
|||||
|
32 |
DN32mm |
|||||
|
40 |
DN40mm |
|||||
|
50 |
DN50mm |
|||||
|
Signal output type |
P H E D W |
Normal aviation connector with 4 m cable (for N-type output type) Hessmann connector (for N, A type output signal type) Explosion-proof housing type (for N, A type output type) Display type housing (for B and C type output types) All stainless steel sanitary display type housing (for B and C type output types) |
||||
|
H |
Hessmann connector (for N, A type output signal type)
|
|||||
|
E |
Explosion-proof housing type (for N, A type output type)
|
|||||
|
D |
Display type housing (for B and C type output types)
|
|||||
|
W |
All stainless steel sanitary display type housing (for B and C type output types) |
|||||
|
Output type |
N A B
Cl
C2
C3
|
Sensor type: 24VDC power supply, output three-wire pulse signal Transmitter type: 24VDC power supply, output two-wire 4 ~ 20mA Intelligent type : Lithium battery power supply, on-site display (dual power supply, pulse output can be optional) Intelligent type: 24VDC power supply, on-site display, output 4 ~ 20mA (pulse output can be optional) Intelligent type: 24VDC power supply, on-site display, output two-wire 4 ~ 20mA ,HART communication (pulse output can be optional) Intelligent type: 24VDC power supply, on-site display, RS485 communication (dual power supply,pulse output can be optional) |
||||
|
A |
Transmitter type: 24VDC power supply, output two-wire 4 ~ 20mA |
|||||
|
B |
Intelligent type : Lithium battery power supply, on-site display (dual power supply, pulse output can be optional)
|
|||||
|
C1 |
Intelligent type: 24VDC power supply, on-site display, output 4 ~ 20mA (pulse output can be optional)
|
|||||
|
C2 |
Intelligent type: 24VDC power supply, on-site display, output two-wire 4 ~ 20mA ,HART communication (pulse output can be optional)
|
|||||
|
C3 |
Intelligent type: 24VDC power supply, on-site display, RS485 communication (dual power supply,pulse output can be optional) |
|||||
|
Accuracy grade |
05 |
Accuracy grade 0.5 |
||||
|
10 |
Accuracy grade 1.0 |
|||||
|
Material Type |
W |
304 stainless steel |
||||
|
S |
316L stainless steel (customized, long production time) |
|||||
|
Explosion proof |
N |
Unmarked, non-explosion-proof |
||||
|
E |
Explosion-proof type (ExdIICT6) |
|||||
