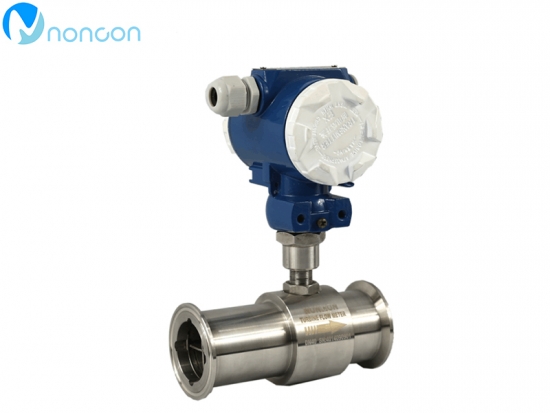

LWGS Food Hygiene Turbine Flow Meter

Food hygiene turbine Flow meter suitable for: pharmaceutical industry: physiological saline, glucose water and other infusion products filling and metering; Food and beverage industry: vegetable juice, beer, refined oil and other liquid food filling and metering.

Product Origin:
China
Shipping Port:
Huangpu port
Lead Time:
Spot
MOQ:
1

Product Details

Features

■International standards is used and the product can replace similar imported products;

■Anti-corrosion and anti-rust material are used, suitable for the sanitary industry;

■Quick-connect structure is used, easy to install and maintain;

■High precision and good repeatability;

■High quality turbine, beyond the conventional range.

Dimensional drawing Tabke 1

Caliber Size	D（mm）	A（mm）	B（mm）	d（mm）	L（mm）
DN4	Ф50	Ф45	Ф40.5	4	100
DN6				6
DN10				10
DN15				15
DN20				20
DN25				25
DN32				32
DN40	Ф64	Ф59	Ф53.5	40	140
DN50	Ф77	Ф73.5	Ф68.5	50	150
DN65	Ф91	Ф86	Ф80.5	65	170
DN80	Ф106	Ф100. 5	Ф94	80	200
DN100	Ф1I9	Ф113	Ф106	100	220

Note: D dimension is the size of matching clamps.

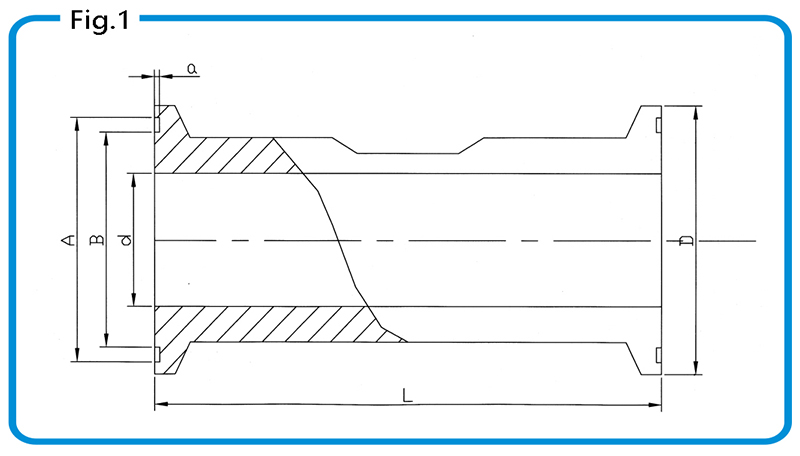

Flowmeter outline dimension drawing

Meter Selection Table 2

Model								Description
LWGS-	□	/□	/□	/□	/□	/□	/□	Description
Nominal diameter	4							4mm
	6							6mm
	10							10mm
	15							15mm
	20							20mm
	25							25mm
	32							32mm
	40							40mm
	50							50mm
	65							65mm
	80							80mm
Type		N						Sensor type: +12V or +24V power supply, output three-wire pulse signal
		A						Transmitter type: +24VDC power supply, output two-wire 4 ~ 20mA
		B						Intelligent type: lithium battery power, no signal output field display
		C						Intelligent type: +24V power supply, field display and output 2-wire system 4~20mA
		C1						Intelligent type: +24V power supply, field display and RS485 communication protocol
		C2						Intelligent type: +24V power supply, field display and HART communication protocol
Accuracy grade			05					0.5 grade
			10					1.0 grade
			02					0.2 grade (need to negotiate orders, production cycle is longer)
Turbine type				W				Extended measurement range
Turbine type				S				Standard measurement range
Explosion proof					N			Non-explosion proof type
Explosion proof					E			Explosion-proof tyoe，EXDIICT 6
