MF4600 Series Gas Flow Meters


MF4600 series gas mass flowmeters are produced by microelectromechanical system (MEMS) flow sensor chip independently developed by the company.Suitable for all kinds of clean and dry gases.MF4600 has a rotameter-like air circuit structure, but the flow meter has a clear and intuitive LED display screen, which can display the flow and cumulative total flow in real time.


  • Product Origin:

    China
  • Item NO.:

    MF4600
  • Shipping Port:

    Huangpu port
  • Color:

    Silver & dark blue
  • Lead Time:

    3~5 Working Days
  • Payment:

    TT
  • MOQ:

    1
  • Price:

    $328.6/set
  • Market Price:

    $368
  • Price Range:

    1-5/328.6$
Product Details

Product features

The sensor chip adopts heat mass flow measurement without compensation of temperature and pressure, which ensures the high-precision measurement of the flowmeter

Multiple sensor integration is implemented on a single chip with a range ratio of 50:1 or higher

The output mode is flexible, which can either automatically upload data through communication interface ,or a linear analog voltage can be output through the analog interface.

LED displays instantaneous flow rate and cumulative flow rate, allowing field button configuration of flow meter parameters.

It can record the maximum and minimum values of instantaneous flow since power on, and it has the function of over range

RS485 communication module is provided to facilitate centralized control and remote transmission.

The same air connection as the traditional rotor flow meter

Mechanical size and flow range can be customized according to customer needs

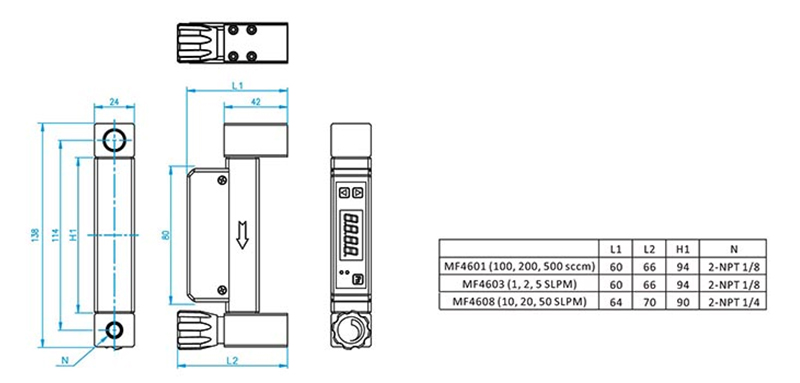

Mechanical dimensions

Gas Flow Meters Size

Remark:Please contact the manufacturer for mechanical dimensions of other flow ranges.


Technical parameters

Parameters

MF4600

MF4603

MF4608

Unit

Flow range

0~100,200,500

sccm

0~1,2,5,10

SLPM

Measuring proportion

50:1

Precision

±(2.5+0.5FS)

%

Repetitive

0.8

%

Zero stability

0.1

%FS

Output drift

±0.12

%/°C

The response time

10(default,20,50,100,200,500,1000 can be set up)

ms

Working power

8~24VDC,50mA

Output way

Linear:RS232/RS485analog voltage0.5~4.5VDC

Display way

4-7 segment LED digital tube display, 2 indicator lights

Indicate the unit

 Instantaneous flow:SLPM:Cumulative flow:SL

Display resolution

Can set 0.001,0.01,0.1or 1

Maximum flow pressure loss

100

Pa

Maximum working pressure

0.5

MPa

Working temperature

-10~+55

°C

Storage temperature

-20~+65

°C

Working humidity

<95%RH(no ice,no frost)

Mechanical interface

NPT-F 1/8

 Keyboard

Tthree keys

Lead²

Five needle socket,CDR-5

Calibration mode

Air(20°C,101.325kPa)

Remark:

1. Please contact the manufacturer for other flow ranges.

2. The plug of the wiring SN5-50 is CDH-5.

3. The above parameters at 20 ° C, 101.325 kPa measured.

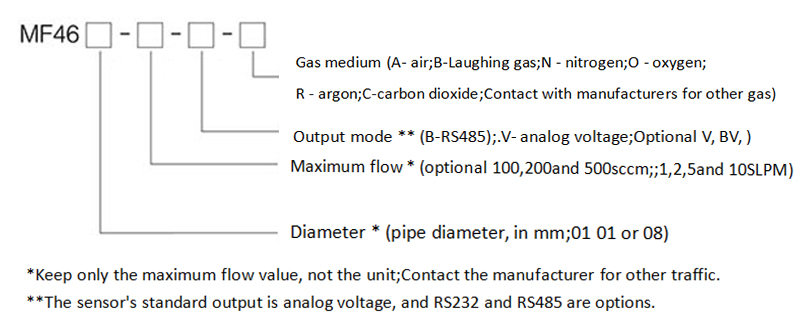

Product selection

Selection of gas flowmeter

A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
