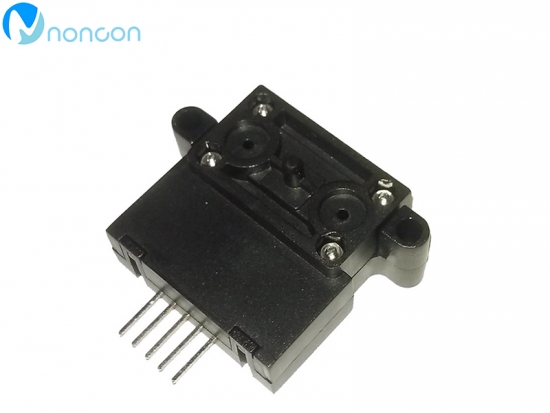

FS5001B series gas mass flow sensor is specially designed for the measurement and process control of various types of low-flow gas. All of these sensors are made by the microcomputer point system (MEMS) flow sensor chip developed by our company, which is applicable to various clean and dry gases.The sensor adopts label installation, which makes the installation size more compact, and can easily realize multi-sensor integration in small space.
Product Origin:
ChinaItem NO.:
FS5001LShipping Port:
Huangpu portColor:
blackLead Time:
3~5 Working DaysPayment:
TTMOQ:
1Price:
$151.7/setMarket Price:
$190Price Range:
1-5/151.7$Product features
The sensor is highly sensitive and has minimal initial flow.
Label type installation, compact structure.
Multiple output.
The sensor has high zero stability.
All measuring ranges are high stability ,accuracy and excellent repeatability.
Low power consumption, low pressure loss.

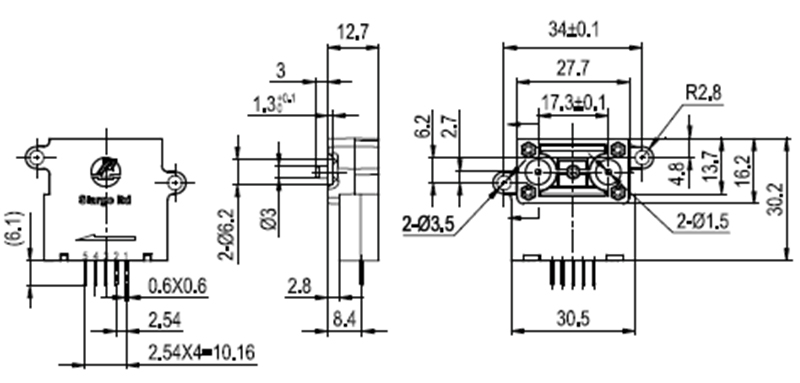

Mechanical dimensions
Technical parameters
Parameters
FS5001L
Unit
Flow range
200,500,1000
4000,6000
sccm
Measuring proportion
100:1
Precision
±(2.0+0.5FS)
%
Repetitive
0.5
%
Zero output drift
±30
mV
Output drift
±0.12
%/°C
The response time
10(default,5,10,20,50,100,200,500,1000 can be set up)
ms
Working power
8~24VDC,50mA
Output way
Linear:1²Canalog voltage0.5~4.5VDC
Maximum working pressure
≤0.5
MPa
Working temperature
-10+55
°C
Storage temperature
-20+65
°C
Working humidity
<95%RH(no ice,no frost)
Calibration mode
Air(20°C,101.325kPa)
Maximum allowable flow
3
18
SLPM
Maximum allowable flow change
500
3000
Sccm/sec
Remark:The above parameters at 20 ° C, 101.325 kPa measured.

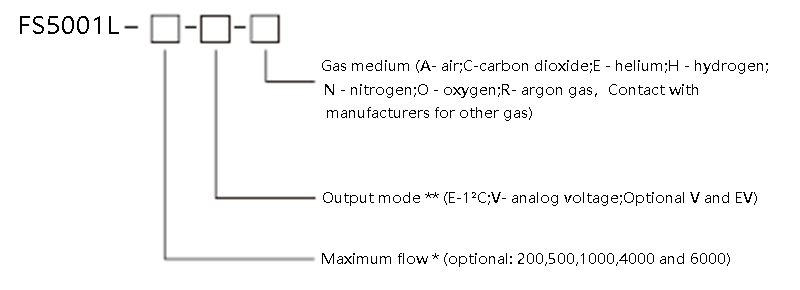

Product selection
*The unit of maximum flow is SCCM,for example 500 represents maximum flow of 500SCCM;
For carbon dioxide, the maximum flow can be 200,500,750 (no option 1000) and 4000 (no option 6000).
**.The standard output of the sensor is analog voltage, and 1²C is the option.
