LZ Metal Tube Float Flow Meter

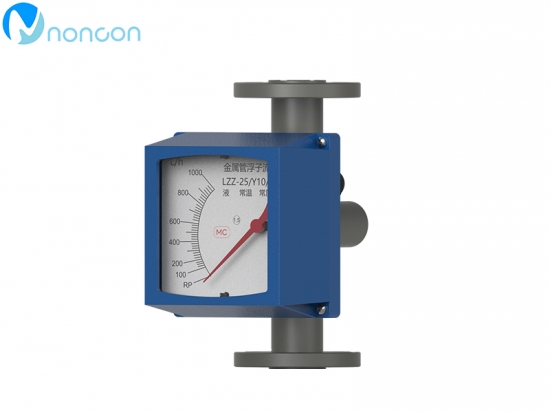

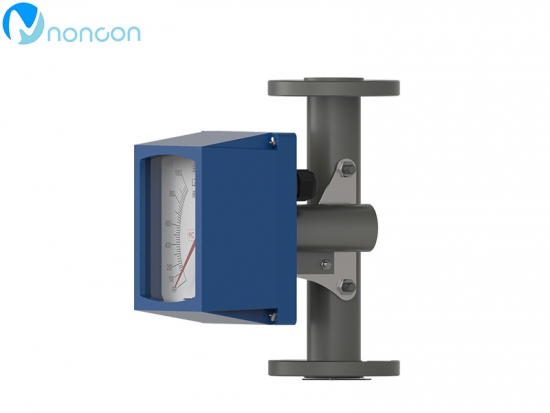

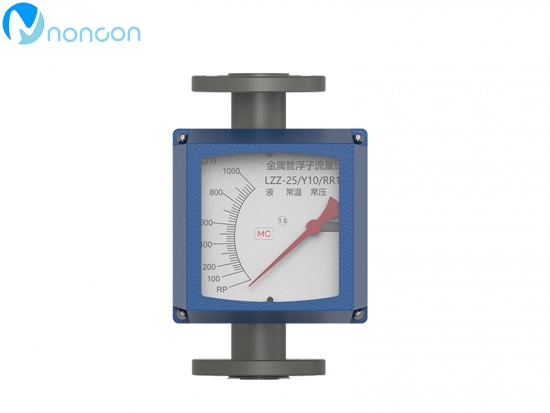

LZ series of metal tube float flowmeter is based on the float position measuring a variable area flow meter, adopts full metal structure, the concept of Modular design, because of its small size small pressure loss, large range than (10:1), installation, maintenance is convenient wait for a characteristic, therefore widely used in various industries are complex, bad environment, low for small flow velocity, the conditions of all kinds of harsh medium flow measurement and process control.

  • Product Origin:

    China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    3~5 Working Days
  • MOQ:

    1
Product Details

Product features

Modular combination design, easy maintenance, normal use without maintenance

Uniaxial non-contact new magnetic coupling structure, more stable signal transmission

Double lines, large screen LCD display instantaneous, cumulative flow, with backlight

Intelligent with power down protection, data backup and recovery functions

All metal structure, anti - seismic, pressure - resistant, temperature - resistant, anti - corrosion

Short stroke, total height 250mm, more convenient design and installation


Technical parameters

Measuring range

Water (2.5-10000L/h)

Air (0.07-3000m3/h

Range ratio

10:1 (special type 20:1)

Precision grade

1.5 (special type 1.0)

Work pressure

DN15~DN50  PN4.0MPaspecial type 25MPa

DN80~DN100  PN1.6MPaspecial type 16MPa

Jacket pressure class: 1.6MPa

Medium temperature

Standard -8~+220

High temperature type 300

Lining PTFE type 85

Environment temperature

-40~+120(electric remote transmission type 6)

Medium viscosity

DN15 5mPa.s(H15.1~H15.3)

 30mPa.s(H15.4~H15.9)

DN25250mPa.s

DN50~DN150300mPa.s

LCD

Instantaneous flow display value range 0~50000

Cumulative flow display value range: 0~99999999

Output

Standard two-wire system 4 ~ 20mA

Minimum pulse interval is 50ms

Alarm signal: open collector, MAX100mA@30VDC

Power supply

Standard 4VDC(10.8VDC ~ 36VDC)

AC 220VAC(85 ~ 265VAC)

Battery: 3.6@4AH NiMH battery

Connection method

Standard DIN2501 flange

Special type: flange standard provided by customer

Threaded connection type: DIN1851 or user specified

Electrical interface

M20×1.5PG111/2NPT

Overall height

Standard type: 250mm (except for other installation methods)

Protection level

IP65

Explosion-proof mark

Intrinsic Safety  ExiaIICT 3 6

Flameproof

ExdIIBT4


Installation instructions

(1) During the installation of the flowmeter, the perpendicularity of the measuring pipe should be guaranteed to be greater than 5%, and a bypass should be installed to facilitate maintenance and cleaning without affecting production.

(2) The position where the flowmeter is installed shall ensure that there is a straight pipe section with an inlet value of 5DN and an outlet value of 250mm;If the medium contains ferromagnetic material, the magnetic filter should be installed before the flow meter.(see the figure of magnetic filter and straight pipe).

(3) The control valve in the measurement and control system should be installed downstream of the flow meter.For gas measurement, the working pressure shall not be less than 5 times of the pressure loss, so as to make the flow meter work stably.

(4) Before installing the flow meter, the welding slag in the pipeline should be blown clean;Remove stop elements from the flow meter during installation;After installation, the control valve should be opened slowly to avoid impact damage to the flow meter.

(5) For the LZ1 0 standard type, LZ15 horizontal installation of metal tube float meter can choose the built-in magnetic filter.The total height of the LZ10 standard with built-in magnetic filter is 350mm.

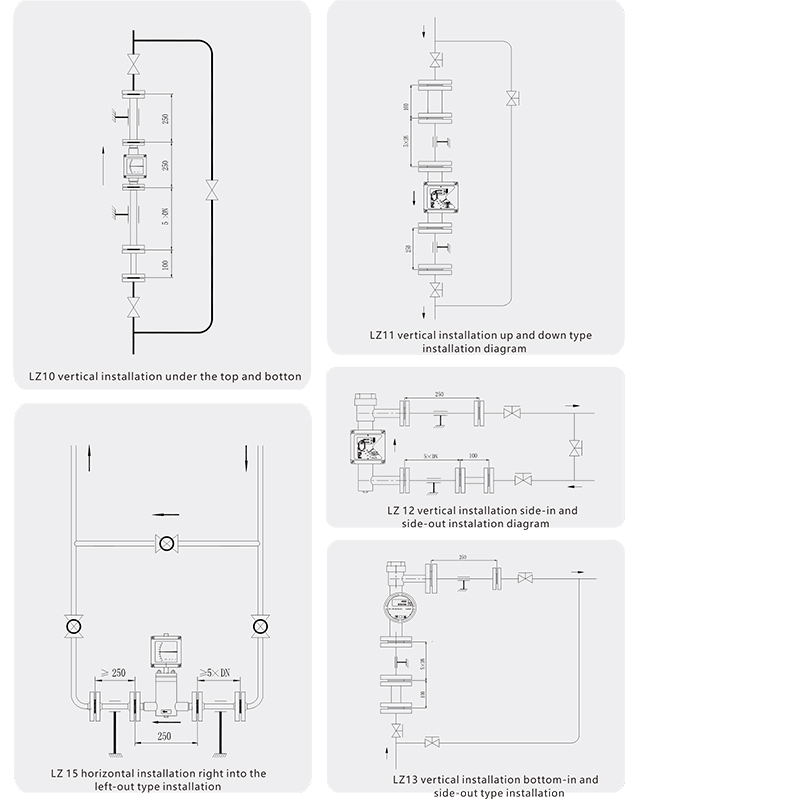

(6)Flow meter installation diagram

Flow meter installation diagram
