The LF2600 series liquid flow sensor adopts the MEMS flow sensor technology and sensor packaging technology of Guangzhou Nan Kong Automation Equipment Co.,Ltd., which integrates the thermal flight time (TOF) and thermal sensing principles.
Product Origin:
ChinaItem NO.:
LF2600Shipping Port:
Huangpu portColor:
SilverLead Time:
3~5 Working DaysPayment:
TTMOQ:
1Price:
$495/setMarket Price:
$550Price Range:
1-10/495$Product features
The shell material of the sensor is polycarbonate with stable chemical performance. The unique MEMS sensor chip structure and special packaging technology enable the maximum working pressure of the sensor to reach 0.5MPa.
The liquid velocity reached 400mL/min.
High precision(±5%).
Fast response time(40ms).
Super large volume ratio(100:1).
Excellent reliability.
Low cost application.

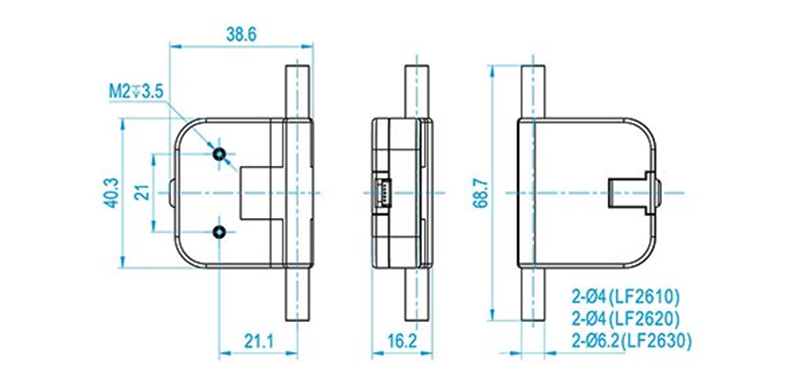

Mechanical dimensions
Technical parameters
Parameter
LF2610
LF2620
LF2630
Unit
Maximum flow
±200
uL/min
±25 ±400
mL/min
Range than
100:1
Precision
±5%or±0.5%FS(Larger)
Repetitive
±0.5
%
Zero output drift
±0.3
Working pressure
5~15
Vdc
Power dissipation
60
mW
Working current
12
mA
Response time T63
40
ms
Output way
Linear,I2C/analog voltage 0.5~4.5VDC
Maximum working pressure
1.0
MPa
Working temperature
5~50
℃
Electrical interface
SM05B-SRSS-TB(JST)
Calibration mode
Deionized water(20℃,101.325kPa)
Packaging materials
Polycarbonate
Mechanical dimensions
68.7×38.6×16.2
mm3
Weight
15
g
Storage temperature
-10~+60
℃
Storage humidity
<95%RH(No icing or condensation)

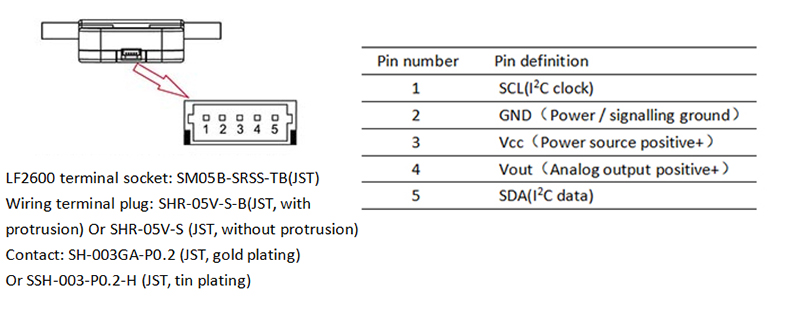

Electrical interface
