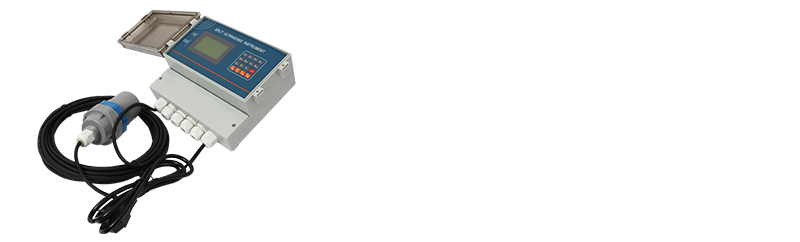

Wall-mounted ultrasonic open channel flow meter is a kind of high precision using the ultrasonic measurement of venturi canal or groove bashir's flow meter.
■High precision operation, the machine is powerful
■Low requirement for fluid state and low pressure loss
■Able to adapt to harsh environment, safe and explosion-proof
Product Origin:
ChinaItem NO.:
YI2000-integrated-8MShipping Port:
Huangpu portColor:
silver and blueLead Time:
3~5 Working DaysPayment:
TTMOQ:
1Price:
$202.5/setMarket Price:
$265Price Range:
1-5/202.5$Product categories
1.Wall - mounted ultrasonic open channel flowmeter
MH - MF/MP wall-mounted ultrasonic open channel flow meter is a kind of high precision using the ultrasonic measurement of venturi channel or trough bashir's flow meters, its measuring sound waves bounce back after channels of access to the surface of the time, and then according to the formula to calculate the channel flow, it can provide flow output, according to the velocity and display the total flow, water level, this instrument and measuring weir trough with, mainly used to measure the free stream conditions within the channels of sewage flow, instrumentation, sensors and not be flow body contact, avoid the canal sewage contamination and corrosion, used to measure sewage flow, can be better than other forms of the instrument,With higher reliability.
1.1 Technical indicators Table 1
Performance indicators |
|
Flow measurement range |
0 ~ 93m3/s(related to the specification of weir slot for determining the range) |
Cumulative flow range |
9999999999 Km3 |
Suitable groove type |
Triangular weir, rectangular weir, equal width weir, bacher trough |
Display precision |
Depending on the input signal |
Use triangular weir |
1 ~ 2% with rectangular weir: 1 ~ 4% with bascher tank: 3% |
Calibration |
Factory calibration, field calibration |
Display |
Chinese and English large screen LCD, color TFT (optional) |
Display screen |
Liquid level height, instantaneous flow, cumulative flow, hourly flow, daily flow, weekly flow, monthly flow, year/month/day, battery power (can be set arbitrarily) |
Signal input (selected when ordering) |
|
Digital signal |
RS485(support Modbus protocol) |
Current signal |
4-20mA |
Transducer signal |
Voltage |
Signal output (selected when ordering) DC12V or 24V |
|
Voltage output |
0 ~ 20mA; 4 ~ 20mA load > 300Ω; 0 ~ 5V; |
Analog output signal |
0~10V |
Digital output |
RS485 (support Modbus);USB, memory card 8G |
Wireless transmission |
Built-in GPRS wireless communication optional SMS data prompt (collection system can be customized) |
Switch output |
Two-channel NPN/3 relay (AC:5A 250V DC:10A 24V) |
Power supply |
|
Operating Voltage |
DC12-24V or AC160V~250V |
Normal power consumption |
<5W |
Physical characteristics |
|
Main frame dimensions |
240mm×184mm×110mm/185mm×256mm×60mm |
Shell material |
ABS engineering plastics/cast aluminum |
Installation method |
Wall mount |
keyboard |
16-bit tile button |
Environmental performance |
|
Working temperature |
0~65℃ |
Environmental humidity |
≤85RH |
Pressure |
Atmospheric pressure |
Data storage |
|
Past 168 hours of traffic, past 31 days of traffic, past 14 weeks of traffic, past 36 months of traffic, past 10 years of traffic |
|
Sensor performance index parameters |
|
Range |
2m、5m、8m、10m、12m、15m、20m、25m、30m(selected when ordering) |
Blind area |
<0.25-1.5m (different depending on the range) |
Launch Angle |
less than 12°(different by sensor) |
Precision |
±0.25%F.S |
Temperature compensation |
Automatic temperature compensation |
Frequency |
20 KHz~43.0KHz |
Physical characteristics |
|
Overall dimensions |
Φ55mm×119mm×G1 1/2 (2m range) |
Φ92mm×198mm×M60 (5m-15m range) |
|
Φ92mm×270mm×DN80 non-standard flange (20m-30m range) |
|
Shell material |
ABS engineering plastics, nylon |
Button |
16-bit keyboard |
Incoming cable |
10m(optional arbitrary length) |
Installation interface |
G1 1/2 or ¢50mm round hole (2 m range) |
|
M60 x 2 or ¢61mm round hole (5 m to 15 m range) |
DN80 non-standard flange (20m-30m range) |
|
Environmental performance |
|
Protection level: |
IP65 (higher protection grade can be customized) |
Explosion-proof grade: |
EXiaII BT4Gb(selected when ordering) |
Working temperature |
-10℃~60℃ |
Work pressure |
Atmospheric pressure |
Storage humidity: |
≤80%RH without condensation |
Product selection
Table 2
Model |
¨¨¨¨¨¨¨¨¨ |
Description |
YI3000 |
|
Ultrasonic open channel flowmeter |
Explosion-proof grade |
E0 |
Standard type (no explosion protection) |
E1 |
Intrinsically safe type: ExiaIICT4 |
|
E2 |
Flameproof type: ExdIIBT4 |
|
Corrosion resistance |
P0 |
Normal type |
P1 |
Acid and alkali resistant anticorrosive type |
|
Connection method |
F0 |
2"G thread connection |
F1 |
Flange connection |
|
Signal output
|
B0 |
4~20mA |
B1 |
1~5V three-wire system |
|
Control output |
T0 |
|
T1 |
|
|
Measuring range |
G1 |
|
G2 |
|
|
G3 |
|
|
G4 |
|
|
Power supply |
V0 |
220VAC |
V1 |
|
