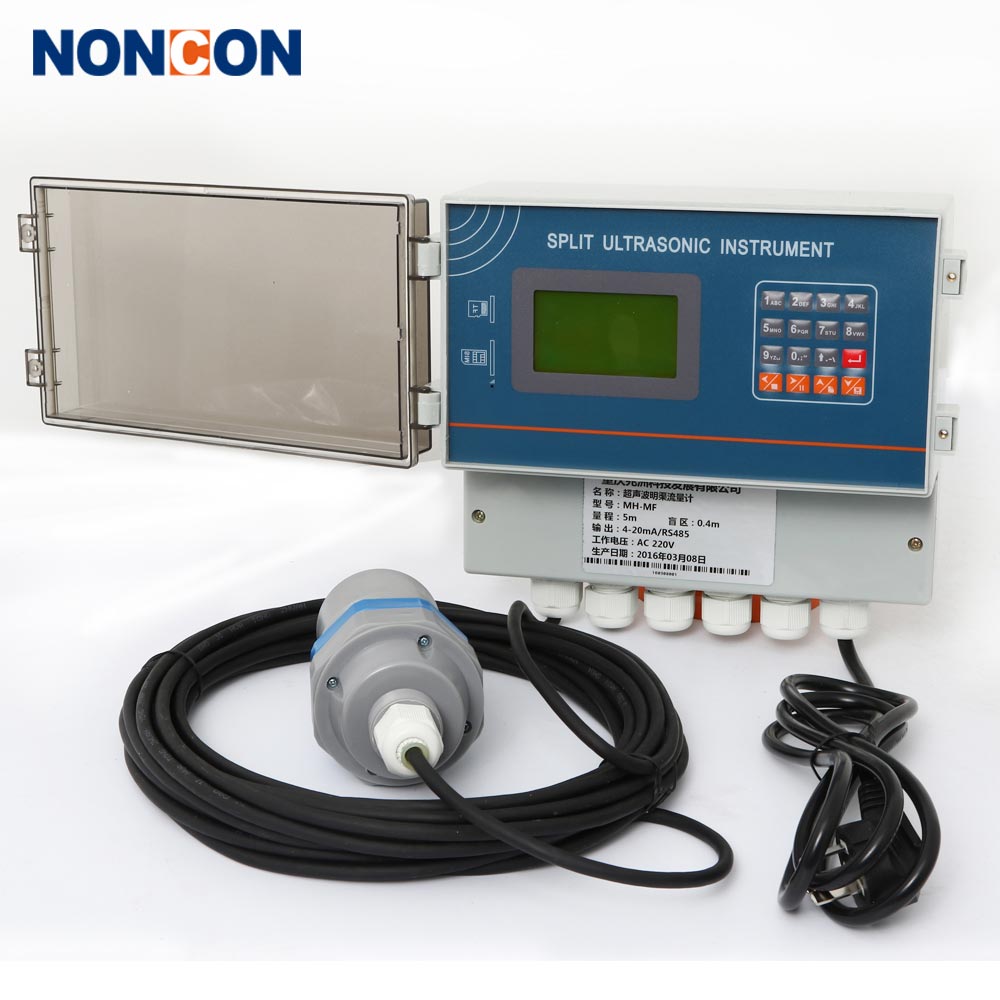

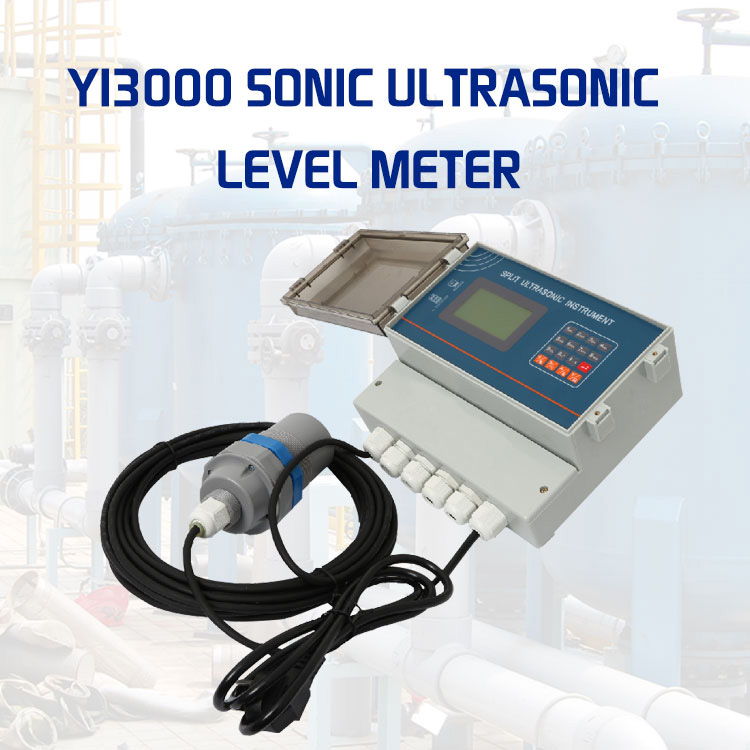

Ⅰ. .Overview
The split-type ultrasonic material (liquid) level meter is a kind of convenient and applicable
split-type ultrasonic material level meter developed by our company after years of production
experience and drawing on the advantages of many similar products. It has the advantages of
accurate measurement, reliable work and generous appearance.
Product Origin:
ChinaItem NO.:
YI-3000Shipping Port:
Huangpu PortColor:
Blue silverLead Time:
5~7 working daysPayment:
TTMOQ:
1Price:
$376.8/setMarket Price:
$376.8Price Range:

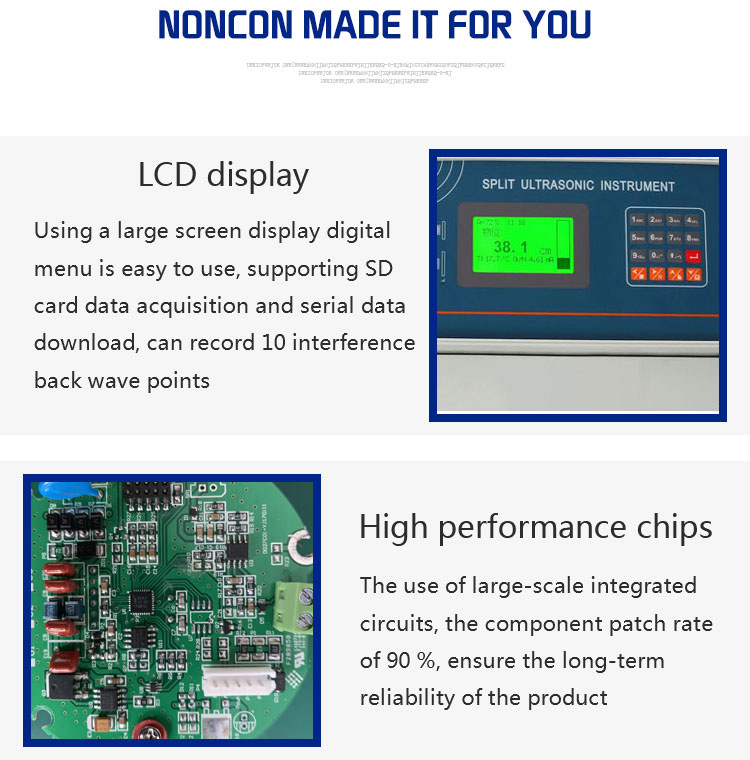

1-5/0$The adoption of large-scale integrated circuit, component patch rate up to 90%, to ensure the long-term reliability of the product.At the same time,
its power consumption is reduced to a very low level. It USES a large screen to display the all-Chinese menu, which is easy to use. It supports SD
card data collection and serial data download, and can record ten interference echo points.
Ⅱ.Product features

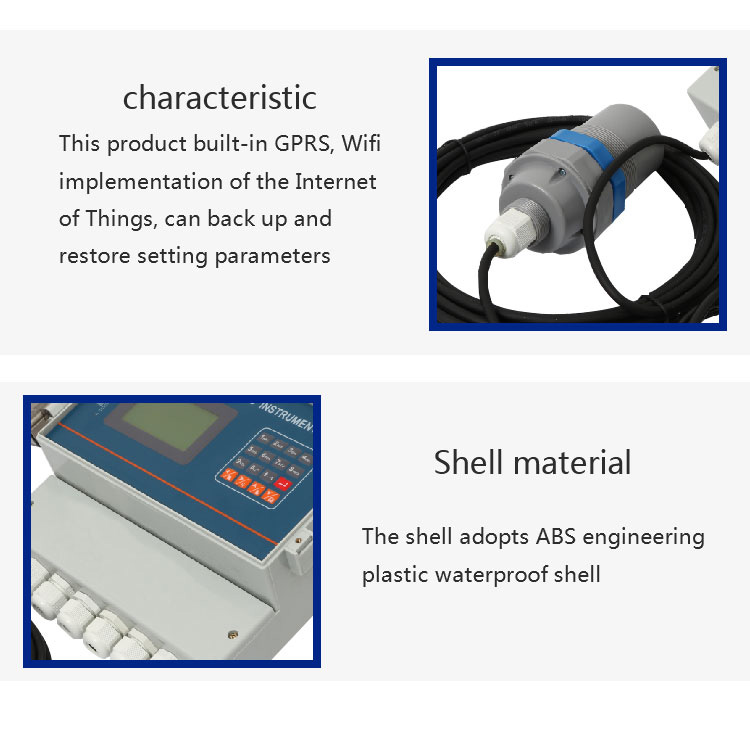

■ This product has built-in GPRS and Wifi to realize the Internet of things
■ Backup and restore setup parameters
■ It can measure object level, liquid level, volume, weight and so on
■ Analog output can be arbitrarily adjusted
■ With digital filtering and echo recognition function
■ The fixed interference filtering function can be set manually
■ Support bluetooth, GPRS communication, etc. (selected when ordering)
■ Support custom serial data format (selected when ordering)
■ Support for custom mathematical function operations
■ Support for custom sound velocity (special material measurement)
■ Support MiniSD card data collection (selected on ordering)
■ Support USB output (selected when ordering)
■ Support micro printer (selected when ordering)
Ⅲ.Technical indicators
Technical parameters
Performance indicators
Range: 2 m、5 m、8 m、10 m、12 m、15 m、20 m、25 m、30 m(selected when
ordering)
Blind area: 0.3-1.5 m (different depending on the range)
Launch Angle: less than 12°(different by sensor)
Ranging accuracy: ±0.3%F.S
Display: Chinese and English large screen LCD, color TFT (optional)
Minimum display resolution: 1mm
Temperature compensation: Automatic temperature compensation
working frequency: 20 KHz ~ 200 KHz (different depending on model specifications)
Site setting: Local key completion
Calibration: Factory calibration, on-site calibration
Can automatically switch between Chinese and English
Output (selected when ordering)
Analog output signal: 4~20 mA(standard)、0~20 mA、0~5V、0~10V load > 300 Ω
Digital communication: RS485, HART agreement, GPRS, MiniSD card data collection, USB
(optional when ordering)
4 channel relay output: Relay contact capacity :AC: 5A 250V DC: 10A 120V
Power supply
Operating voltage: AC220V or DC12-24V
Power consumption: <5W
Physical characteristics

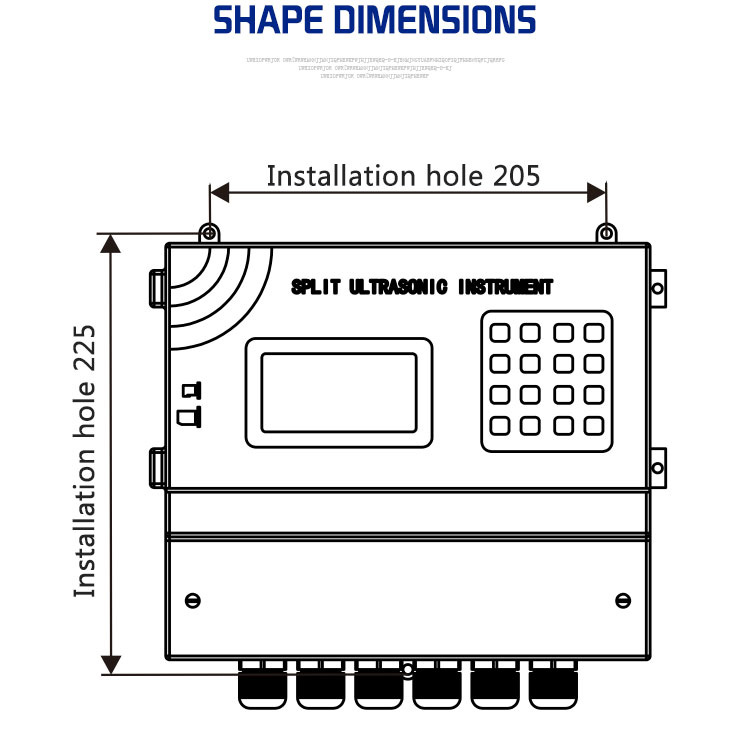

Main frame dimensions: 240 mm×184 mm×110 mm
256 mm×175 mm×110 mm
Host material: ABS engineering plastics/cast aluminum
Sensor cable: 10m shielded cable (any length can be customized)
Transducer material: ABS engineering plastics, nylon

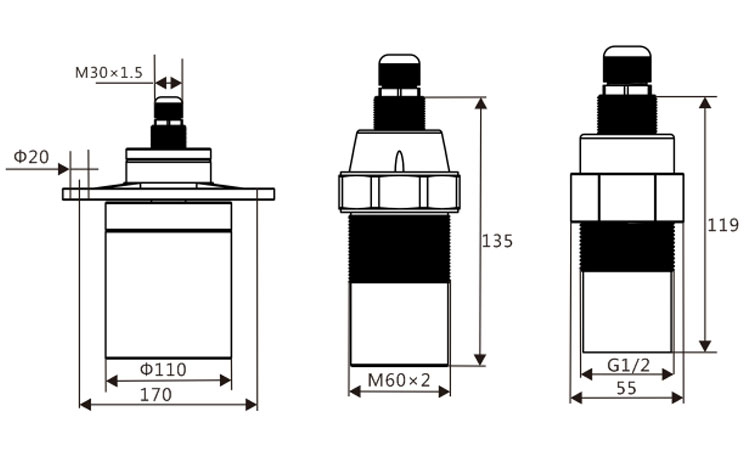

Sensor dimensions Φ 65 mm×119 mm×G1 1/2 (2m range)
Φ74 mm×137 mm×M 60 (5m-15m range)
Φ110 mm×194 mm×M30 (20m-30m range)
Sensor installation interface: G1 1/2(2m range)
M 60×2(5m-15m range)
M 30 x1.5 or DN80 non-standard flange (20m-30m range)
Environmental performance
Protection level: IP65 (higher protection grade can be customized)
Explosion-proof grade: EXiaII BT4Gb(selected when ordering)
Working environment: Normal temperature/pressure
Storage humidity: ≤80%RH without condensation
Dear thank you for your reading. Would you please reply me more details about demand and parameters such as medium, temperature, pressure ,flow range, diameter
