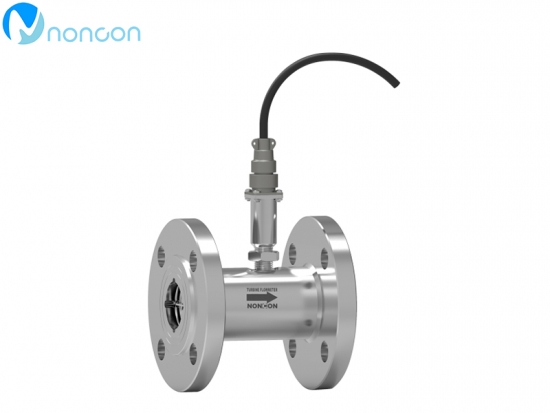

Water turbine flowmeter sensors applied in the measurement of clean water or without impurities and corrosive liquid pipe filled with liquid in pipe flow, can distinguish from the installation thread or the flange, the output mode can distinguish between the output pulse current or communication, on the spot can be with or without display, 24 VDC power supply optional battery or dc power supply.For further information, please contact us.

Installation notes:

1. The instrument shall be installed with flange connection or threaded connection or clamped;

2. During installation, the liquid flow direction is the same as the arrow direction indicating the flow direction of the sensor, and the upstream straight pipe segment should be ≥20DN, while the downstream straight pipe segment should be ≥5DN (DN is the inner diameter of the pipe).

3, the sensor should be away from external interference sources;

4. In order not to affect the normal delivery of liquid during maintenance, a bypass pipe shall be installed outside the straight pipe section at both ends of the sensor

5. When the sensor is installed in the open air, please do waterproof treatment;

6. Pay attention to the electrical requirements of the instrument

7. For other matters needing attention, please refer to the instructions

Power supply: Voltage: 24VDC or lithium battery

Output: pulse or current or communication (call)

Transmission: Wired or wireless (call)

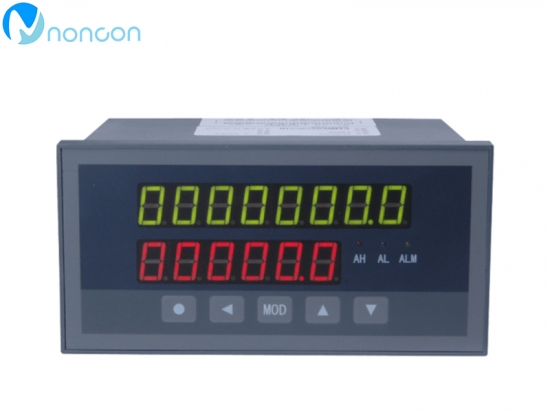

Optional instrument: flow integrator quantitative controller, flow second display instrument
