Feature of porous orifice flowmeter

  • December 28,2020.

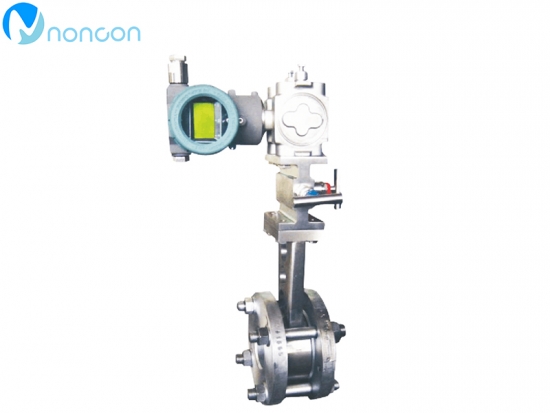

The porous balance flowmeter is a great improvement on the traditional orifice flow meter and has the remarkable characteristics of balanced rectifier.The traditional throttling device has only one flow aperture, which makes the fluid lose its ideal state after throttling.The balance flowmeter has a number of function aperture, zUI can largely rectify the flow field balance into an ideal fluid, so as to play the advantages of differential pressure flowmeter incisively and vividly.The balance flowmeter is applicable to almost all fluid measurement, which is a revolution of fluid measurement technology. At present, the balance flowmeter has been widely used in petroleum, chemical industry, metallurgy, electric power, natural gas, water treatment and other industries.

The characteristics of

The multi-hole balance flowmeter has the advantages of simple, reliable, safe and wide application of standard throttling device, high precision, low requirement of straight pipe section, wide range ratio, low pressure loss and so on.To sum up, it has the following characteristics as follows:

1. Wide range of flow measurement

According to the test results, we know that the performance of the porous flowmeter enables it to flow from zUI to the speed of sound.Its ZUI small Reynolds number can be less than 200, zUI large Reynolds number is greater than 107;The value is optional 0.25 ~ 0.90.

2. Measurable high temperature and high pressure medium

Like orifice plate and other throttling devices, the working temperature and pressure depends on the material and grade of pipe and flange. The working temperature and pressure can reach 850℃ and 42MPa.

3. Low requirements for straight pipe section

Due to the stable flow field and the pressure recovery twice as fast as the orifet, the balanced flow sensor has greatly shortened the requirements for straight pipe segments. The front and rear straight pipe segments are generally 3D and 1D respectively, and the ZUI is small and can be less than 0.5d, thus saving a large number of straight pipe segments, especially pipes with special expensive materials.


4. Media in complex working conditions can be measured

Because of its special structural design, the porous balance flowmeter has special properties and can be used for gas-liquid two-phase, mud, and even solid particle measurement.Balanced flow can be measured in both directions.

5. Good long-term stability

Due to the obvious reduction of turbulent shear force, the direct friction between the medium and the throttle body is greatly reduced, the value remains unchanged for a long time, and the whole instrument has no moving parts, so the stability can be maintained for a long time.

6. Orifice plate can be directly replaced

The balance flow sensor and orifice plate have the same use method and shape, so it can be directly replaced without any changes in piping and related instruments. It is very suitable to change orifice plate into balance flow meter in energy metering transformation of the whole plant.

7. Reduce pressure loss

The balanced design of porous symmetry reduces the formation of turbulent shear force and eddy current, and reduces the loss of kinetic energy. In the same measuring condition, the pressure loss is reduced by 2.5 times compared with the orifice plate, thus saving considerable operating energy cost. It is an energy saving instrument.

8, dirt resistance is not easy to block

The symmetrical balance design of the porous balance flowmeter reduces the formation of turbulent shear force and eddy currents, thus greatly reducing the formation of dead zone, ensuring the smooth passage of dirty medium through multiple holes and reducing the chance of fluid holes being blocked.

9. High linearity and good repeatability

Porous balance meter balance flow sensor with symmetrical structure, able to balance the flow field, reduce the eddy current, vibration and noise signal, the flow field greatly improve the stability and the linearity than orifice increased 5 ~ 10 times, repetitive increased by 54%, to 0.15%, from the point of its comprehensive performance, balance meter belongs to high-grade flowmeter.

10. Can be measured in complex working conditions

Because of its special structural design, make its have special performance, it can undertake gas-liquid two phase, all sorts of mixed gases (such as gas, methane gas, coal gas, etc.), all kinds of low temperature gas (such as LNG, liquid nitrogen, liquid oxygen, liquid argon, liquid hydrogen, liquefied ethylene, liquefied petroleum gas, etc.), gas liquid two phase medium, such as moisture, pulp, multiphase flow, vibration, electromagnetic interference and two-way flow of medium flow (because the meter or so completely symmetrical)
