There are several methods to measure the flow rate of medium through pipelines, but the most widely used and common one is differential pressure flow meter.It is composed of the throttle device and the differential pressure gauge or the throttle device and the differential pressure transmitter together with the secondary table.Typical application of flow throttling device: medium and high velocity gas such as steam and compressed air.
Product Origin:
ChinaShipping Port:
Huangpu portLead Time:
SpotMOQ:

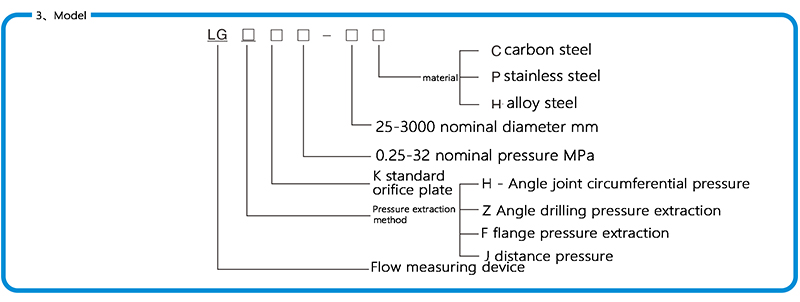

1Orifice flowmeter
1、Characteristic
It has the characteristics of high measurement accuracy, convenient installation, wide application range and low cost.Widely used in various media flow range.
2、Specifications
Dn20~3000mm

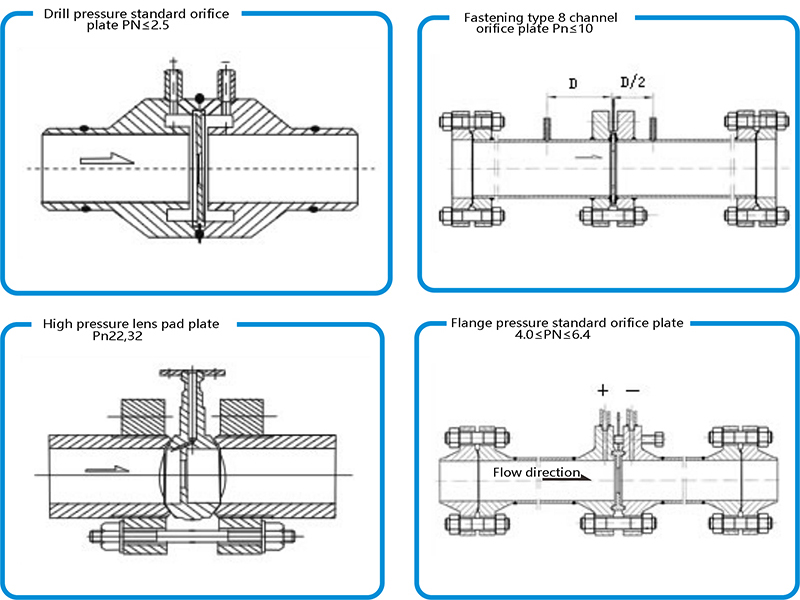

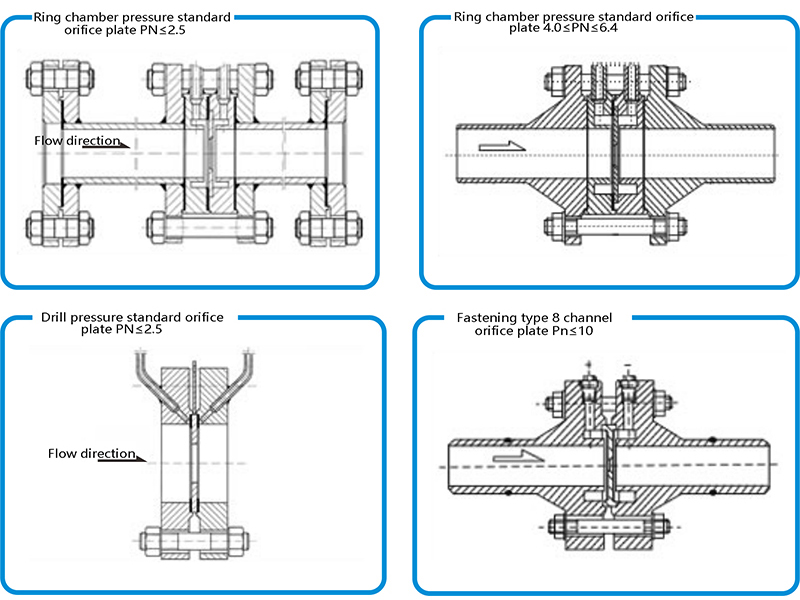

4、Product schematic diagram

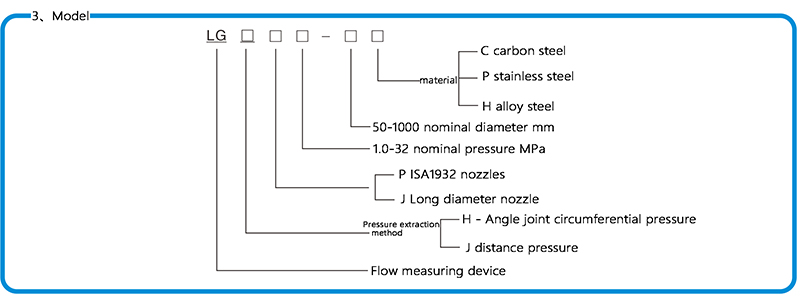

Standard nozzle
1、Characteristic
High temperature and pressure resistance, impact resistance, long service life, large range of measurement, high measurement accuracy. Suitable for power plant high temperature and high pressure steam flow, hot network pipeline, high velocity fluid flow measurement.

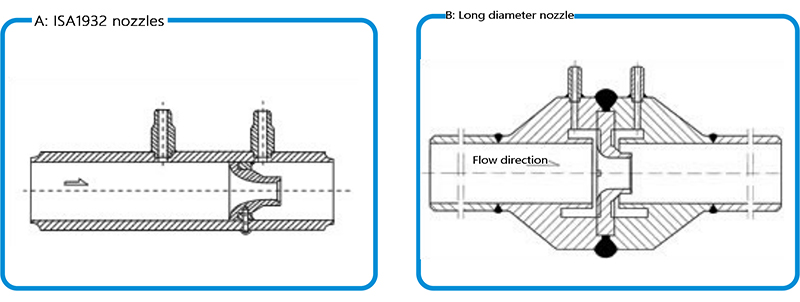

Has two forms:A: ISA1932 nozzles (standard nozzles)
B:Long diameter nozzle
2、Specifications
DN<1000mm
4、Product schematic diagram

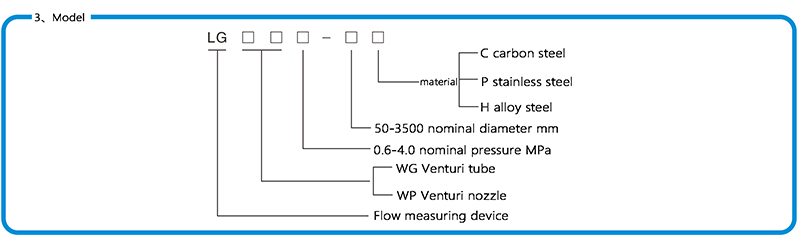

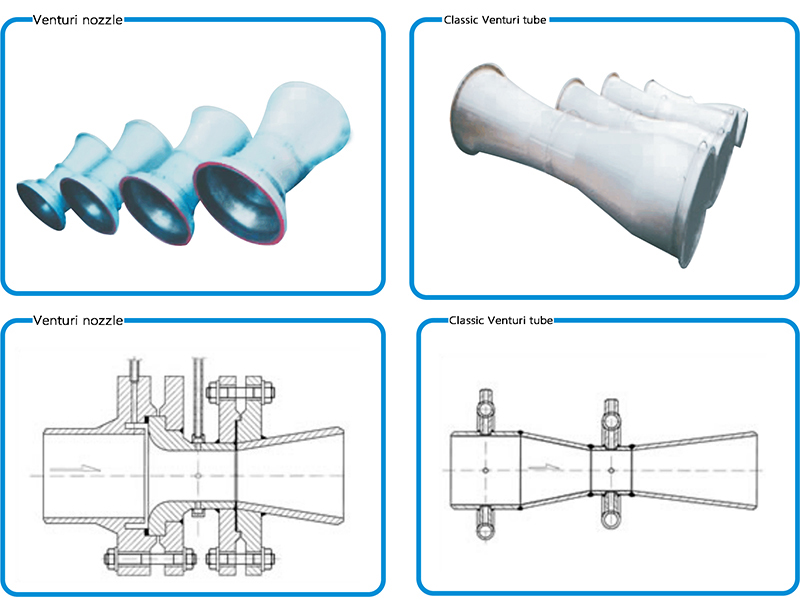

Classic Venturi tube / Venturi nozzle
1、Characteristic
It has the characteristics of small pressure loss, high measuring accuracy, short front and back straight pipe length and long service life.Suitable for water and gas flow measurement.
2、Specifications
50<DN<3500mm
4、Product schematic diagram

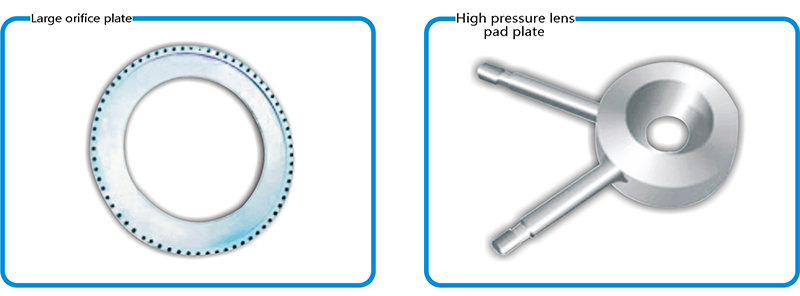

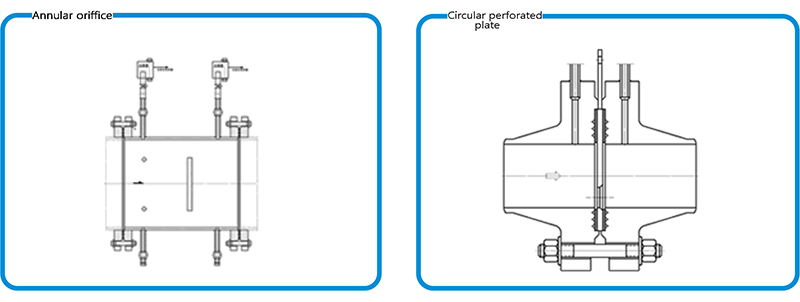

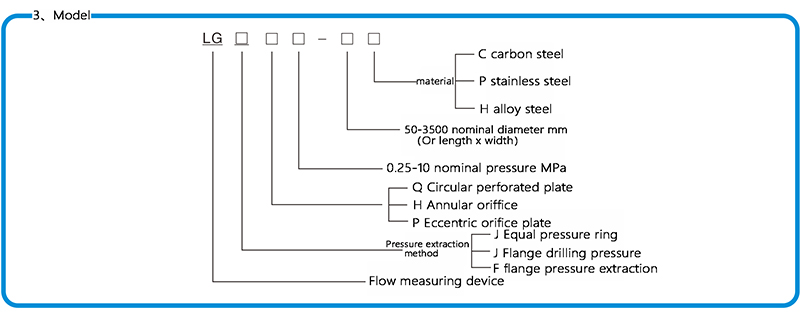

Annular orifice plate、round orifice plate、 eccentric orifice plate
1、Characteristic
It is difficult to plug and has short front and back straight pipe.It is suitable for the measurement of gas and liquid containing dust and impurity in blast furnace gas and coke oven gas.
2、Specifications
DN50-3500mm
4、Product schematic diagram
