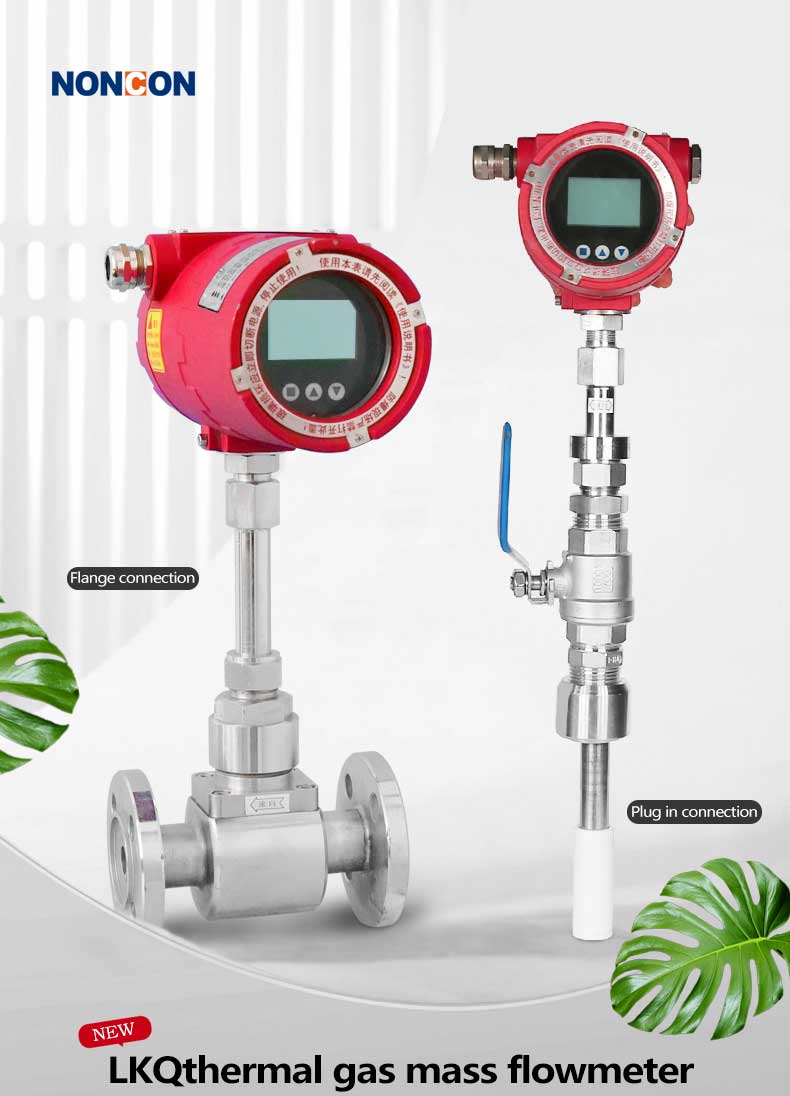

The LKQ series thermal gas mass flow mete provide a reliable solution for gas mass flow detection. Low flow sensitivity, fast response and wide range ratio make this model of meter the first choice for many important gas applications. The Steel-Trak sensor automatically corrects the effects of temperature and pressure, making the mass flow output more stable and reliable. Its advantages in gas measurement are particularly pronounced, especially in the case of low pressures and complex gas compositions.
Product Origin:
ChinaItem NO.:
LKQ-A2-B2-C1-D3-E2-FShipping Port:
Huangpu Port of GuangzhouColor:
redLead Time:
7-10 daysPayment:
TTMOQ:
1Price:
$737.6/setMarket Price:
$915Price Range:
1-5/737.6$
Compared with other flow meters, the thermal type gas mass flow meter has the advantages of small pressure loss, wider range ratio and high sensitivity of small range segments, which is more conducive to energy saving and procurement costs.
Typical applications
■Flow measurement of steel plant,coking plant gas;
■Boiler air flow,secondary air flow measurement;
■Smoke flow measurement from the chimney;
■Aeration flow measurement in water treatment;
■Cement,cigarette,glass flow measurement during production;
■Compressed air flow measurement;
■Measurement of mixed gas low of various natural gas, coal gas, liquefied gas, flare gas,ammonia gas, carbon dioxide, etc.

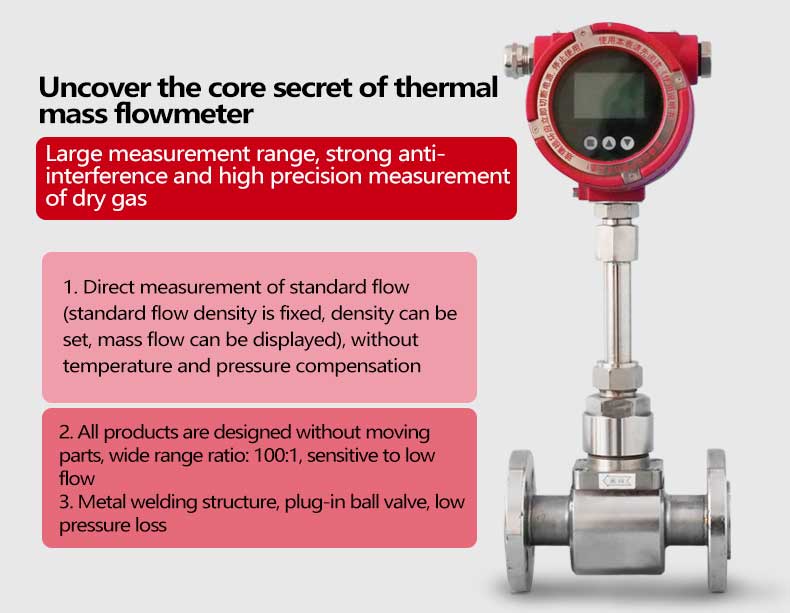

Advantages:

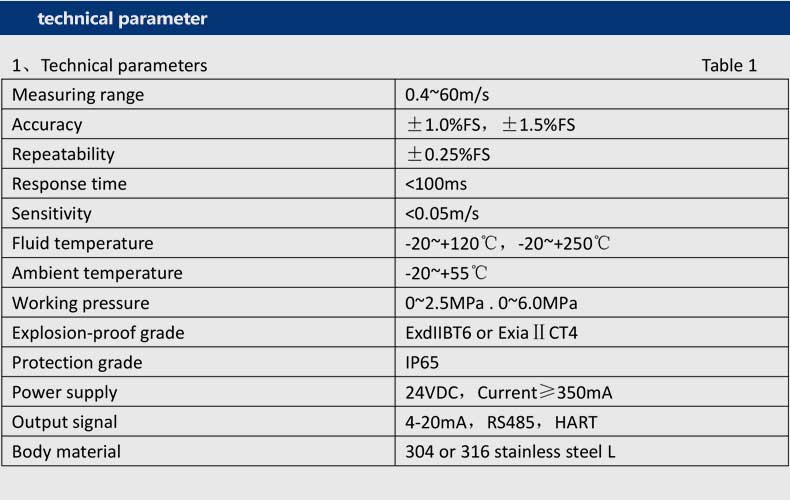

Main technical parameters:

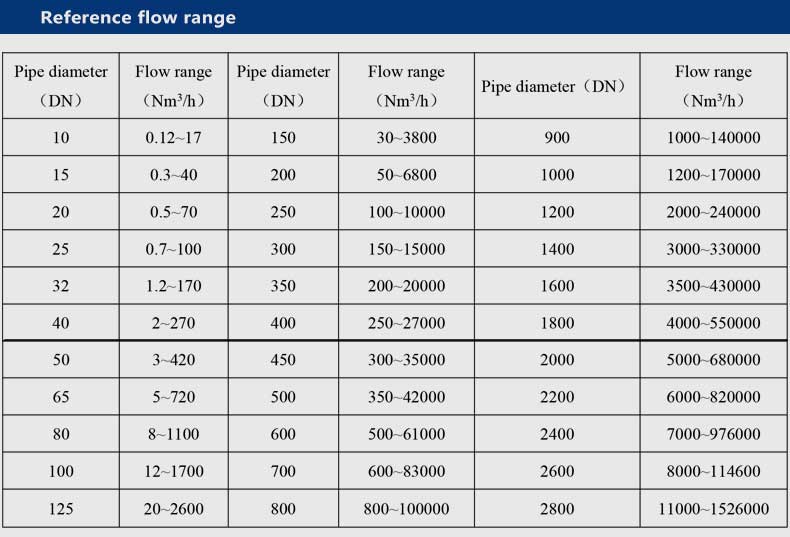

2、Reference flow range:
Product Classification:

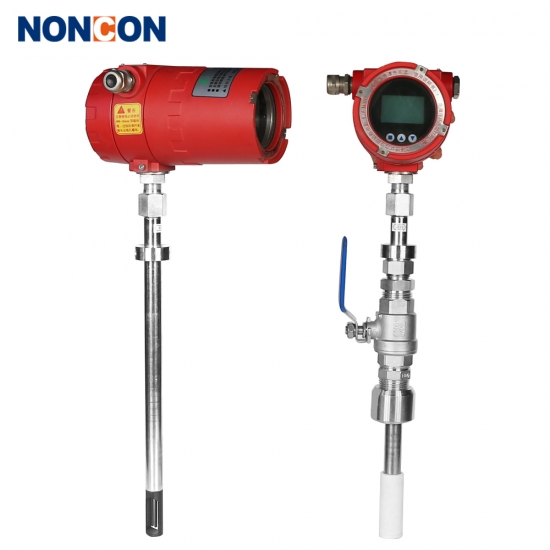

LKQ-A1 plug-in type: Applicable to gas mass flow measurement with pipe diameter greater than DN80. The meter has features such as high precision, good repeatability, high reliability, wide range ratio, fast response, simple and convenient installation, basic free of maintenance, almost no pressure loss, pipe diameter has a very small influence on the price. It has become more and more widely used in the field of gas measurement. Especially after the design with the ball valve installation, it breaks the history that the gas must be shut down when installing the flow meter on site,which greatly facilitates the use.
LKQ-A2 pipe mounting type: Applicable to gas mass flow measurement with pipe diameter less than DN65. It uses a more beautiful design, with double circlip, ten-layer V-type PTFE gasket, and flange with concave and convex surface, so that the meter will not leak under high pressure, which is more convenient for use, disassembly and maintenance.
LKQ-A2 F3 anti-corrosion type: The anti-corrosion type thermal gas mass flow meter has all the features of the conventional thermal mass flow meter and the sheath of the sensor is made of special metal material tantalum with good acid corrosion resistance, and in the concent ration of 28~29% hydrochloric acid (atthis concentration, hydrochloric acid is the most corrosive to metals.) the wall thickness will be corroded by 4u every year. If the wall thickness of the sheath is to be completely corroded, it takes more than ten years, moreover, the corrosive properties of chlorine, phosgene and other gases actually used arenotas corrosive asthe concentration of 28, 29% hydrochloric acid solution, and the PBF probe and the pipe to be tested are reliably sealed.

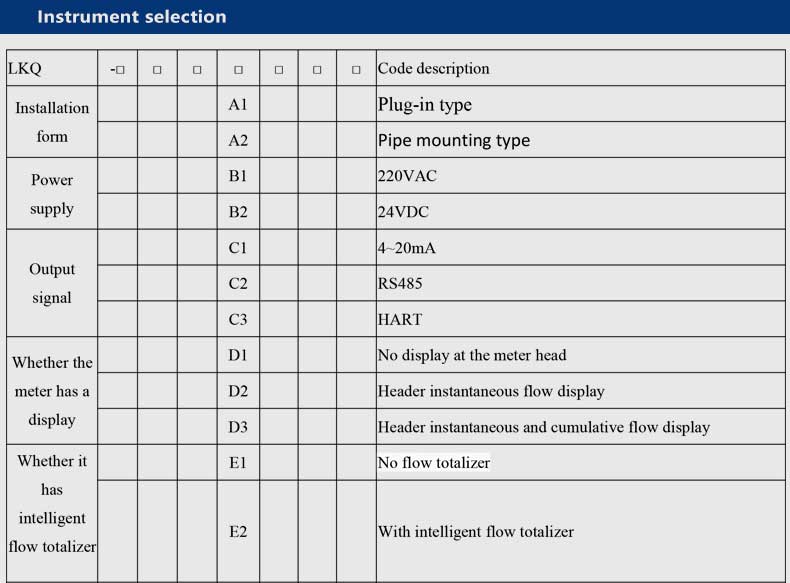

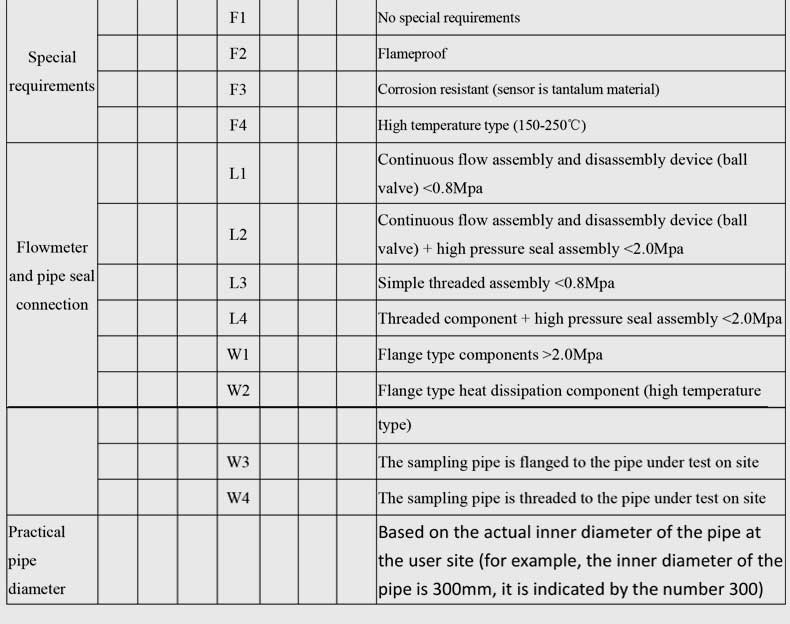

Instrument selection:

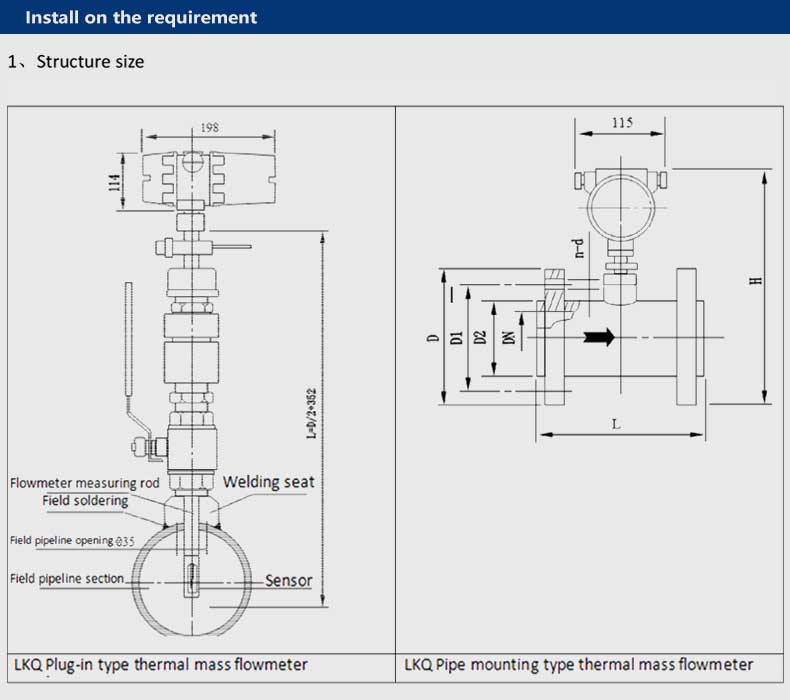

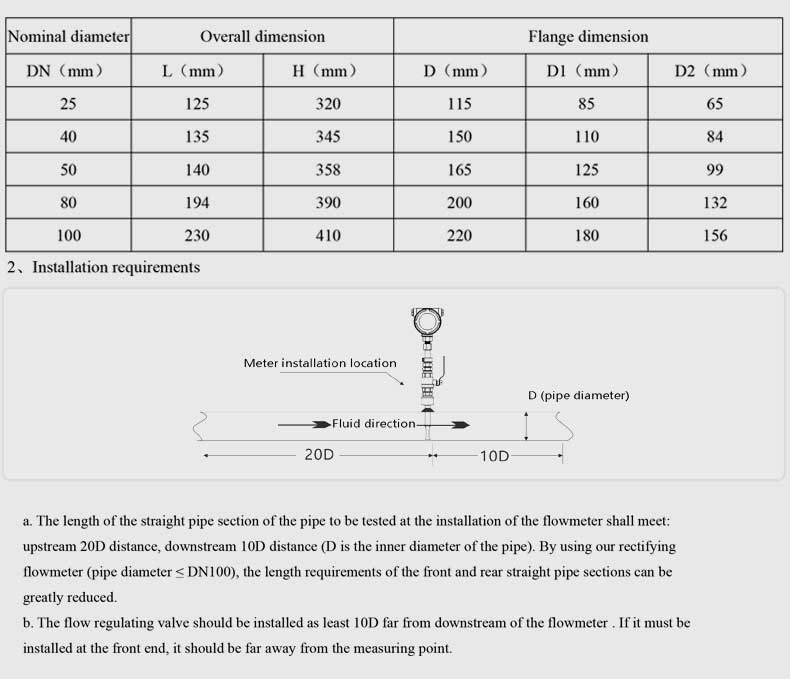

Product structure size and installation:
