UF2200 is a functional handle transfer time ultrasonic flow meter. It is suitable for online calibration and inspection
measurement of liquid flow in various industrial sites.

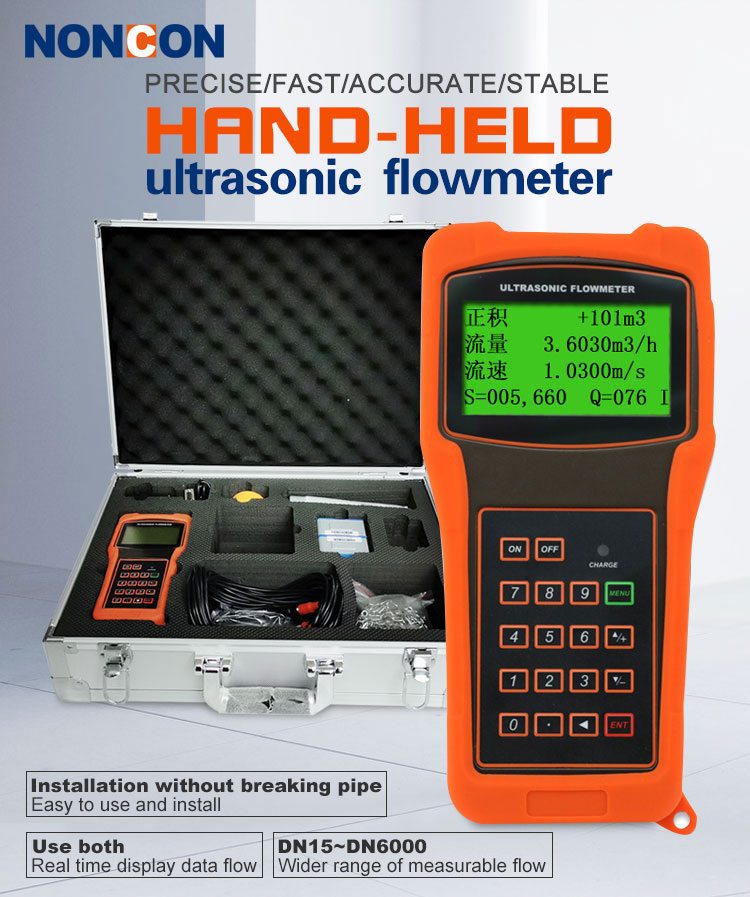

The handheld ultrasonic flow meter is with high precision, high consistency, battery power supply, simple operation.
It's easy to carry, small size, light weight, the true sense of portable ultrasonic flow meter.
Product Origin:
ChinaItem NO.:
UF2200Shipping Port:
HuangPu PortColor:
OrangeLead Time:
7 daysPayment:
TTMOQ:
1Price:
$650/setMarket Price:
$608.7Price Range:
1-10/650$Feature:
1. It's easy to install, it can reduce the installation time and cost.
2. No pressure head loss, no moving parts to maintain or replace.
3. Powerful data storage and also support the data sheet analysis software.
Application

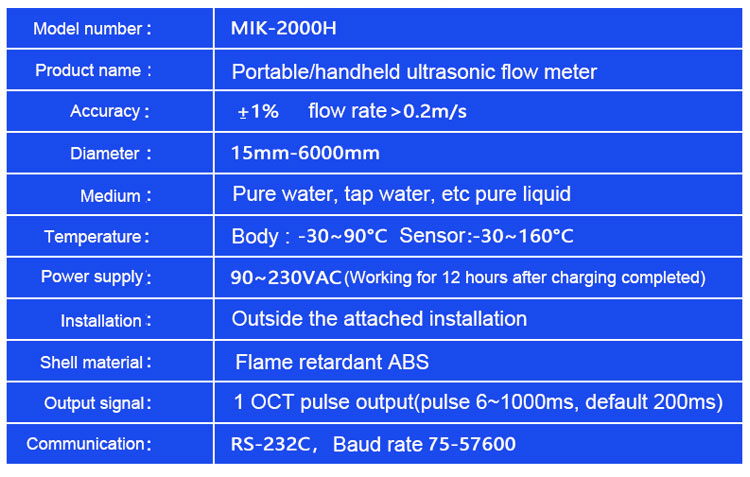

Parameters

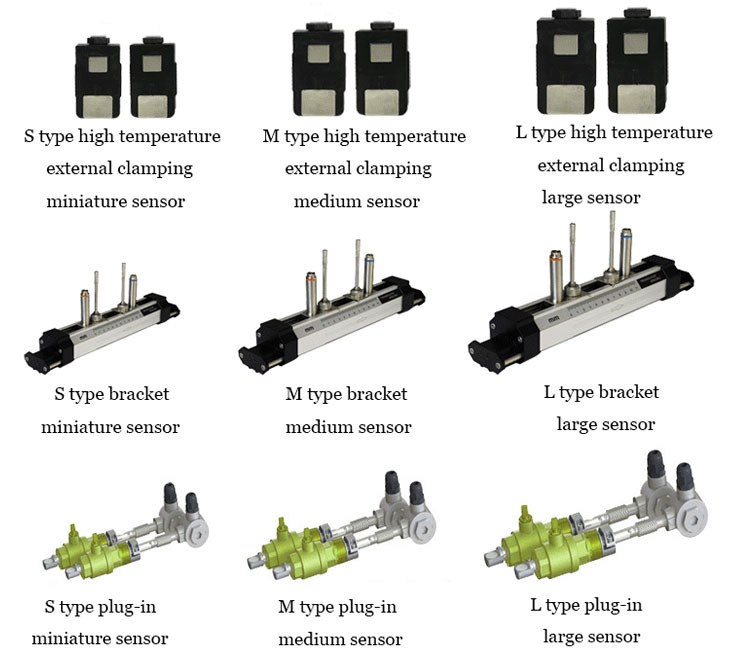

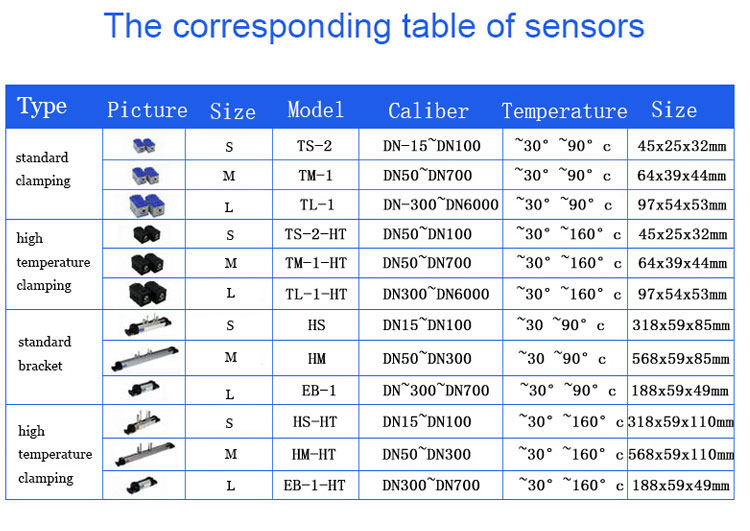

Sensors paired with a portable host
Matched with portable hosts use sensors can be divided into external clip-on (hereinafter referred to as carrying clip-on) and scaffolding, it is
transformed to electrical signal and the ultrasonic signals of accessories, different types of sensors can achieve DN15 ~ 6000 mm, the fluid flow
measurement of temperature - 30 ~ 160 ℃.

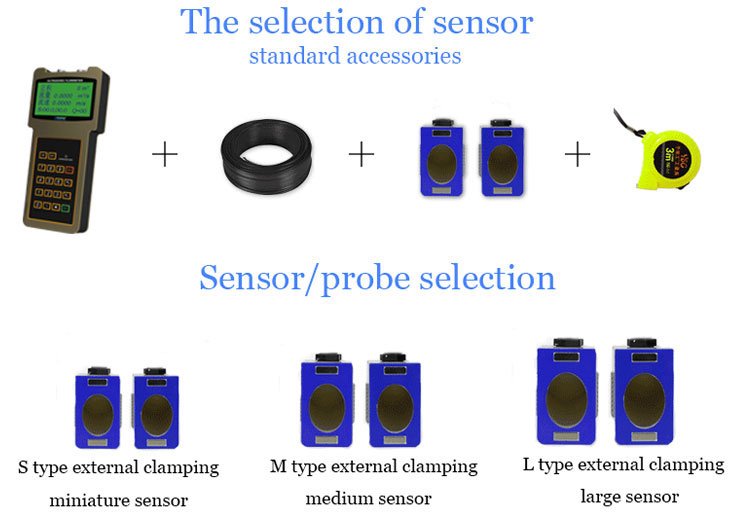

The external clamping sensor is divided into a standard carrying external clamping sensor and ahigh temperature external clamping sensor.
Feature
■The fixing device and slide are made of aluminum, light weight and strong structure.
■Sensor accessories are made of stainless steel 304, corrosion resistant.
■With metric scale, improve installation accuracy.
■The sensor adopts detachable design and is easy to disassemble. After the sensor is
disassembled, the installation of V method and Z method can be completed, and the extension
bracket can be connected. The installation of Z method can measure the pipe diameter exceeding
DN700mm.
■Stent sensor complete kinds, including: medium stents sensors, small sensors, high temperature,
high temperature medium small stents lengthened sensors, stents, high temperature, can
measure the diameter from DN15 ~ DN700, can measure the temperature from -30~160℃.
■There are many ways to fix the bracket sensor, including: with strong magnet fixed, magic belt
fixed, steel belt fixed, tension belt fixed.
Bracket sensor
Support type sensor is designed to facilitate the installation of ultrasonic flow meter sensor, it simplifies the installation process of ultrasonic
flow meter sensor, shorten the installation time, improve the installation accuracy, it contains strong magnets, easy to adsorb in the pipeline
outside, also has a variety of fixed ways, easy to use.

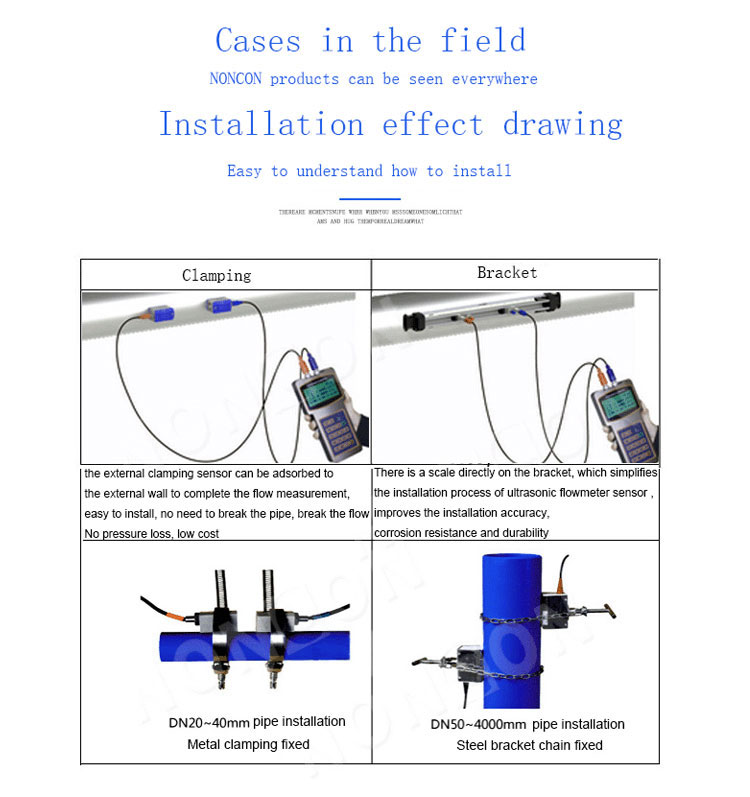

Practical using.

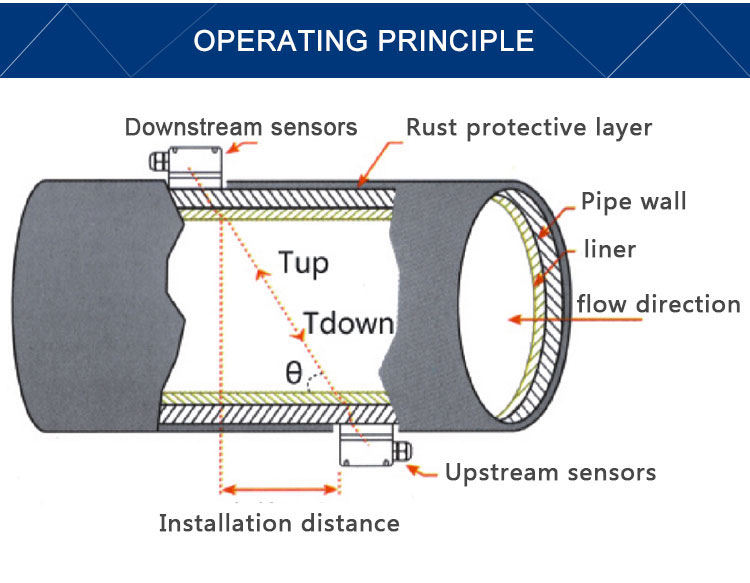

Operating Principle:

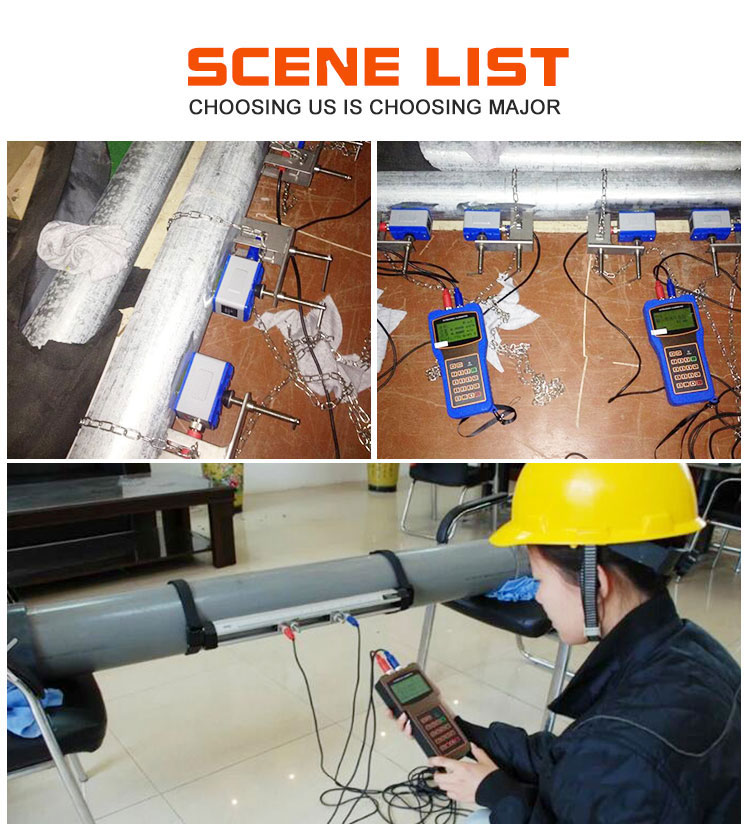

Scene List On Site:
Dear friends, if you were interested in this product, I kindly suggest you reply me more details about demand and parameters such
as medium, temperature, pressure ,flow range, diameter etc., so that I will provide you accurate offer and solutions.
