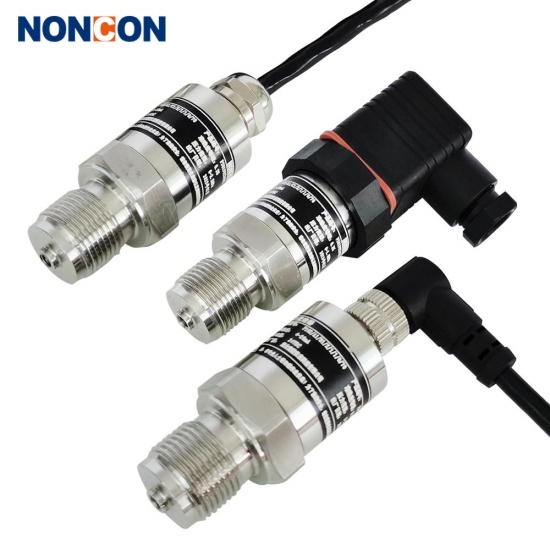

PT Series Pressure Sensor And Pressure Differential Transducer

PT pressure or differential pressure transducer adopts advanced technology, safe and reliable, high precision and pulse transmission;It is widely used in the measurement of pressure parameters of industrial pipelines.

It has high reliability, no pollution, stable performance, don't have to contact industrial media can meet the requirements of most of the material level measurement, so as to thoroughly solve the pressure type, capacitance type, float type of traditional measurement methods such as winding, jam, leaking, corrosion medium, safeguard the disadvantages such as inconvenience, thus can be widely used in water and sewage pump room, collecting well, biochemical reaction tank, tank, electric power, coal mine slurry pool, the slurry pool, butter, tanks, stocking yard or part of a mobile device control wineries, food industry, grain, food material containing tank, etc.

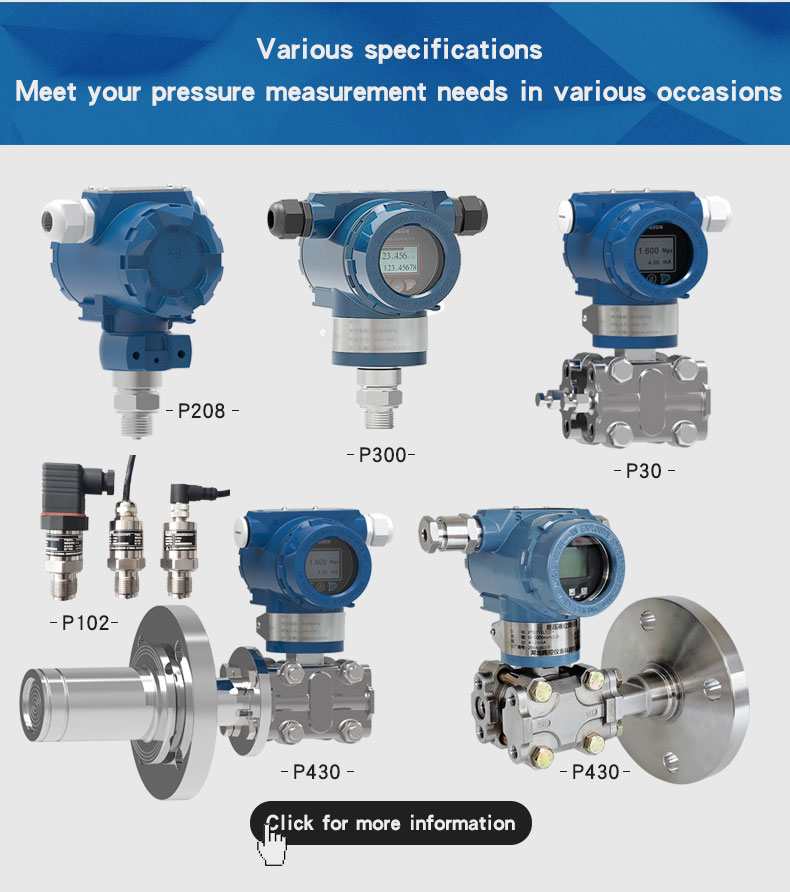

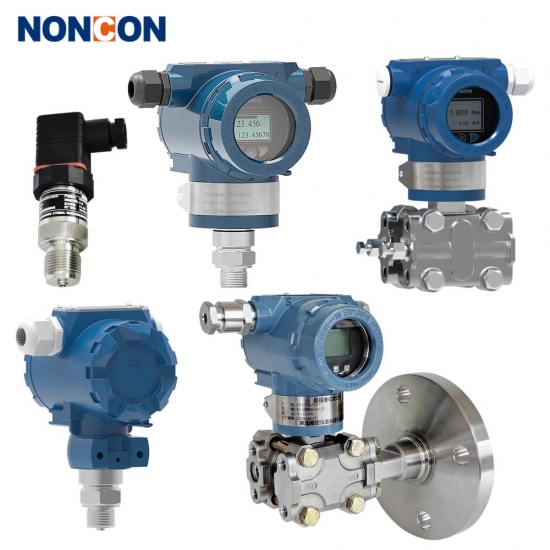

P30 series pressure/differential pressure transmitters are available in a variety of structural forms and are designed with full isolation circuit technology, which can accurately measure pressure, absolute pressure, differential pressure, flow rate, vacuum degree and liquid level .This product has been widely used in petroleum, chemical industry, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, scientific experiment and aviation military industry pressure measurement. The P30 series transmitter has been designed with full isolation circuit technology to isolate the power supply and sensor signals, which greatly improves the stability and anti-interference ability of the whole machine.In addition to the three basic functions of adjusting zero position, measuring range and zero pressure fine adjustment of the previous intelligent transmitter, the paper also designs three key combinations on the display to complete online passive migration, set display unit of work, linear/square conversion, set damping time and fixed current output. P30 series transmitters also have the function of parameter data backup and recovery. When data data is damaged, the damaged data can be restored online through three buttons, and the modified data can be immediately backed up.The key function of transmitter can be realized by the communication software or manual operator produced by the company.

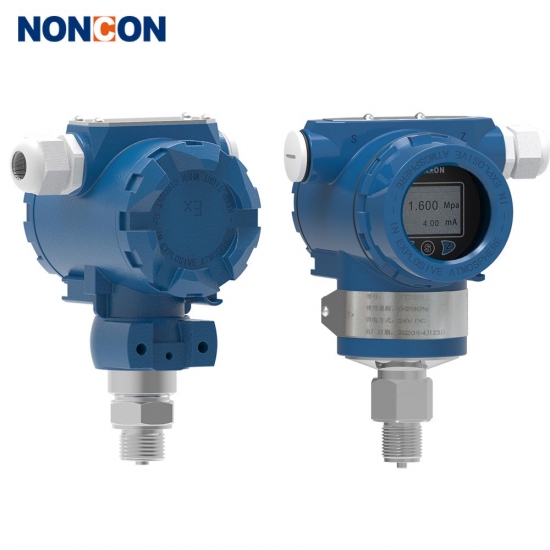

P208 type pressure transmitter sensor adopted the advanced technology of microprocessor automatic linear error and temperature compensation, to ensure the long-term reliability of the product and quality, the circuit part in die casting aluminum shell external coating (blue) of epoxy resin, the signal transmitting module using the transient voltage protection circuit, ensure the harsh surge voltage can work normally in the environment, as well as the mechanical load is large in use for a long time also has long service life. Widely used in process control; Liquid level measurement; Boiler control; Environmental control;Metallurgy; Petrochemicals; Hydroelectric power; Process pressure measurement in medicine and food industry and process control pressure measurement in flameproof industry.

The LWGM series micro type liquid turbine flowmeter is a special flowmeter designed to measure small flows using the principle of turbines.It is extremely accurate, especially under high temperature and high pressure conditions. It is also integrated with a electronic pulse generator to maintain ±1% accuracy and ±0., 25% repeatability under long-term continuous operation. Due to the dexterous structural design, no precipitation is formed during operation, so the operation of the meter is “clean”.

Lky mass flow meter, a patented product developed by our factory, is an advanced high-precision mass flow measuring instrument.Due to its excellent performance, it has high measurement accuracy, low requirements on fluid state and small pressure loss.Coriolis force ( coriolis force ) meters of various specifications can directly obtain the mass, volumetric flow rate, density and temperature of the liquid or slurry to be measured without manual calculation or estimation.

■Microelectromechanical chip processing technology ■Large range ratio, high sensitivity, high precision ■Multiple structures, multiple signal outputs

LWGC (tangential) and LWCB (axial) plug-in type turbine flow sensors are matched with display meters to form a plug-in type turbine flow meter, which can be widely used for measurement of large caliber pipeline source water, circulating water, clean water and other liquid flows and total amount.

The LDB intelligent type electromagnetic flow meter consists of a sensor and a converter. It is based on Faraday's law of electromagnetic induction, which is used to measure the volume flow of conductive liquid with conductivity greater than 5μs/cm. It is an inductive meter for measuring the volume flow of conductive medium. In addition to measuring the volume flow of general conductive liquid, it can also be used to measure the volume flow of strong corrosive liquids such as strong acid and alkali and uniform liquid-solid two phase suspension liquid such as slurry,pulp and paper pulp. It is widely used for flow measurement of petroleum,chemical,metallurgy,textile,paper making,environmental protection,food and other industrial sectors and municipal management,water conservancy construction, rivers and other fields.

FS6122 series medical CPAP sensor module is designed for the CPAP system of domestic ventilator (continuous positive pressure ventilation system).The sensor integrates MEMS mass flow chip and MEMS pressure chip, thus providing the necessary output signal for CPAP system.

LWGS series sanitary type turbine flowmeter is a flowmeter meter that can be widely used in pharmaceutical, food, beverage and other industries for applications of metering, batching, control, finished product filling.

Guided wave radar level gauge can be used in a variety of complex conditions due to the advanced microprocessor and unique choDiscovery echo processing technology. A variety of process connections and the types of detection components make the 60X series guided wave radar level gauge suitable for a variety of complex conditions and applications.Such as: high temperature, high pressure and small dielectric constant medium. The work mode of pulse is adopted, and the radar level of guided wave is extremely low in transmitting power, which can be installed in various metal and non-metal containers, which is harmful to human body and environment.
