MF2000 Serise Mass Flow Meters

MF2000 series gas mass flowmeter is designed for all kinds of industrial gases for a variety of low cost management and control and design, the series of instrument can provide direct mass flow information, friendly user interface design (RS485/4 ~ 20 mA) can be easily for data processing.

  • Product Origin:

    China
  • Item NO.:

    MF2000
  • Shipping Port:

    Huangpu port
  • Color:

    Silver
  • Lead Time:

    3~5 Working Days
  • Payment:

    TT
  • MOQ:

    1
  • Price:

    $1011/set
  • Market Price:

    $1200
  • Price Range:

    1-5/1011$
Product Details

Product features

The world's leading MEMS micropower flow chip patent technology.

Direct mass measurement, without temperature and pressure compensation, easy installation.

LED display,Clear intuitive.

Large data storage, easy to download and analyze historical data.

RS485 communication function can easily realize network management.

Standard current output of 4~20mA can be selected.

The aluminum alloy tube body is greatly reduced in weight and can be used for various gas measurements.

The grade of protection is IP65.

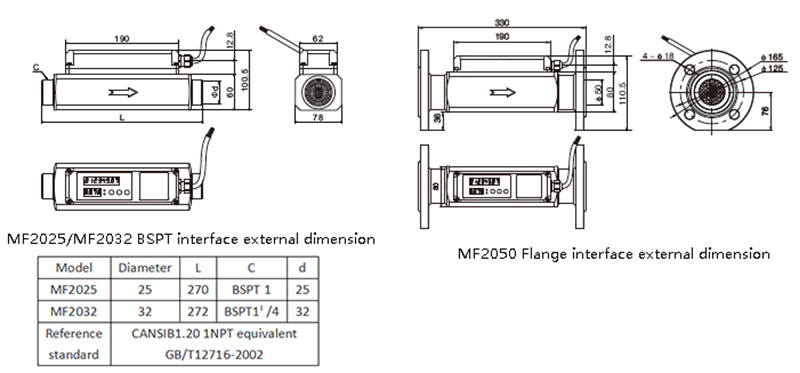

Mechanical dimensions

Gas mass flowmeter size


Technical parameters

Production license number of this series of products:CHUAN produce No.00000360

Model

Diameter(mm)

Maximum flow(Nm³/h)

Minimum flow(Nm³/h)

Begining flow(Nm³/h)

MF2025

25

100

2

0.2

MF2032

32

160

3

0.3

MF2050

50

400

10

1.0


Parameter

Valve/Unit

Flow signal

Precision

±(2.0+0.5FS)%

Mearsuring proportion

50:1

Pressure signal

Pressure range

15~700kPa

Precision

±2.5%

The maxi working pressure

1.0mPa(suggest working in 0.5mPa)

Environment temperature

-20~+60

Medium temperature

-10~+55

Humidity

10~90%RH(no ice,no frost)

The power supply mode

12~24Vdc

LED display

4digits for Instantaneous flow rate,8 digits for accumulative flow rate)

Output way

RS485,4~20mA

The main body material

Aluminum alloy, stainless steel (customized)

Shell material

Aluminum alloy

Mechanical connection

BSPTthread or flange

Calibration conditions

Air (20°C,101.325kPa)

Protection grade

IP65

Remark:The above parameters at 20 ° C, 101.325 kPa measured.

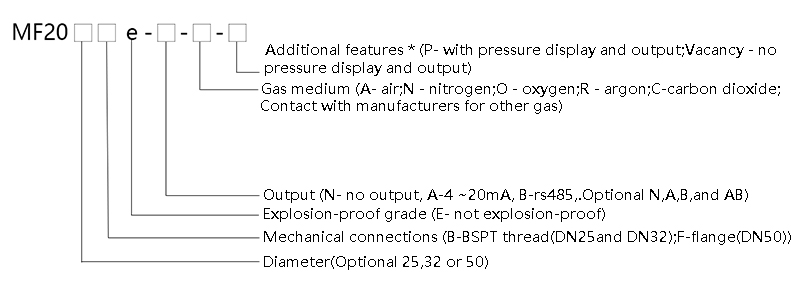

Product selection

Liquid flow sensor selection
