NONCON Gear Flow Meter

Gear flow meter belongs to a kins of volumetric flow meter and can be used for measuring volume and flow precisely.

  • Product Origin:

    China
  • Item NO.:

    GF
  • Shipping Port:

    Guangzhou
  • Color:

    Read
  • Lead Time:

    7-10 working days
  • Payment:

    TT
  • MOQ:

    1
  • Price:

    $635.6/set
  • Market Price:

    $635.6
  • Price Range:

    1-5/635.6$
Product Details

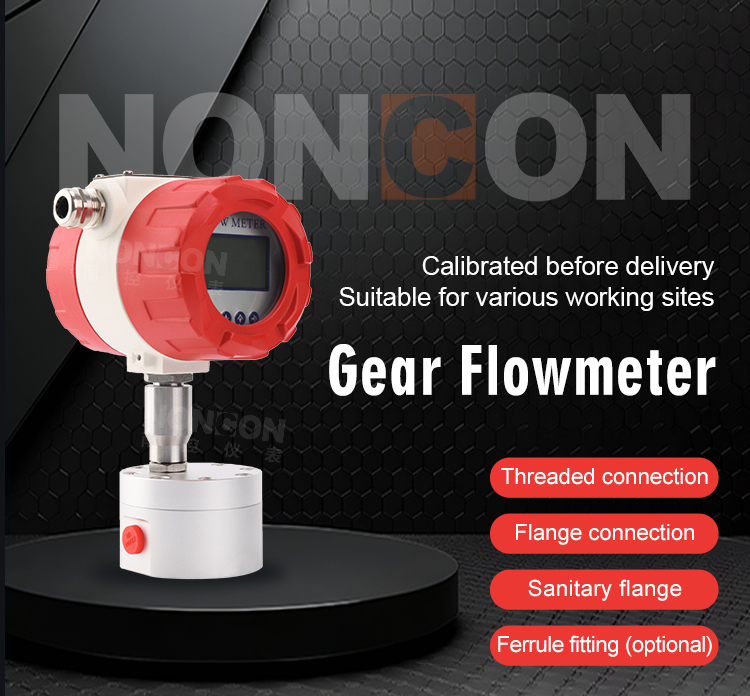

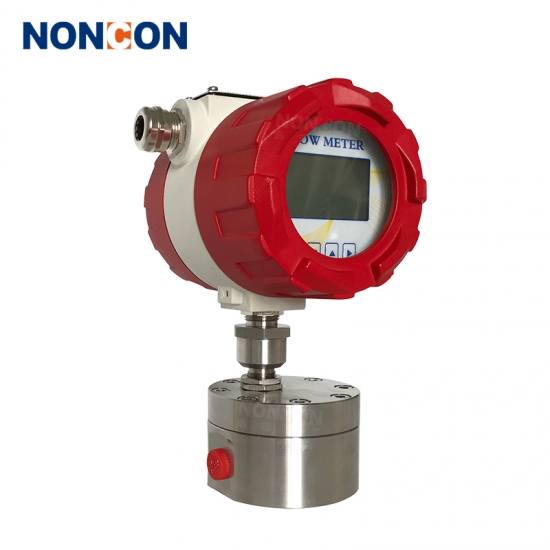

NONCON Gear Flow Meter

As a kind of new volumetric flow transmitter, the round gear flow meter transmitter is used for measuring the flow or instantaneous flow of the

 liquid inside pipeline precisely, either in a continuous or discontinuous manner.

Introduction of gear flow meter

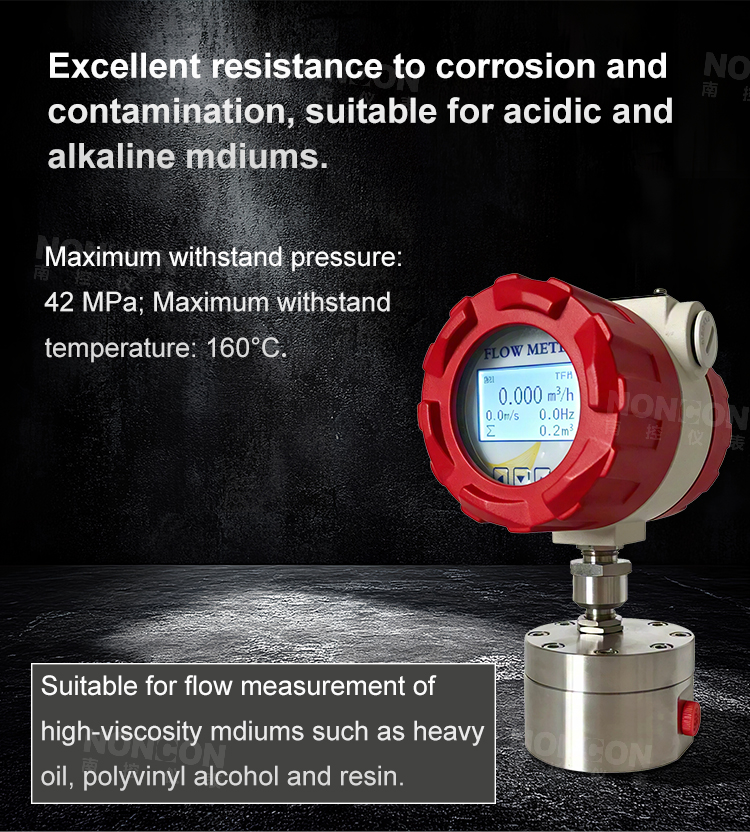

Suitable mediums of gear flow meter

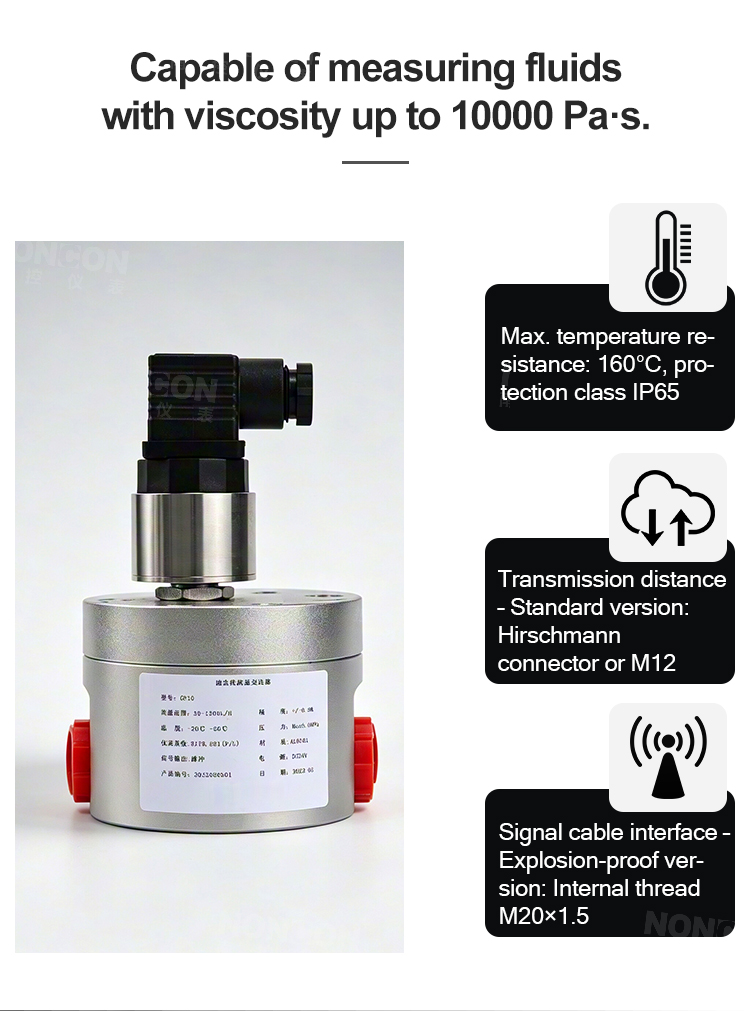

Advantages of gear flow meter

Features of gear flow meter

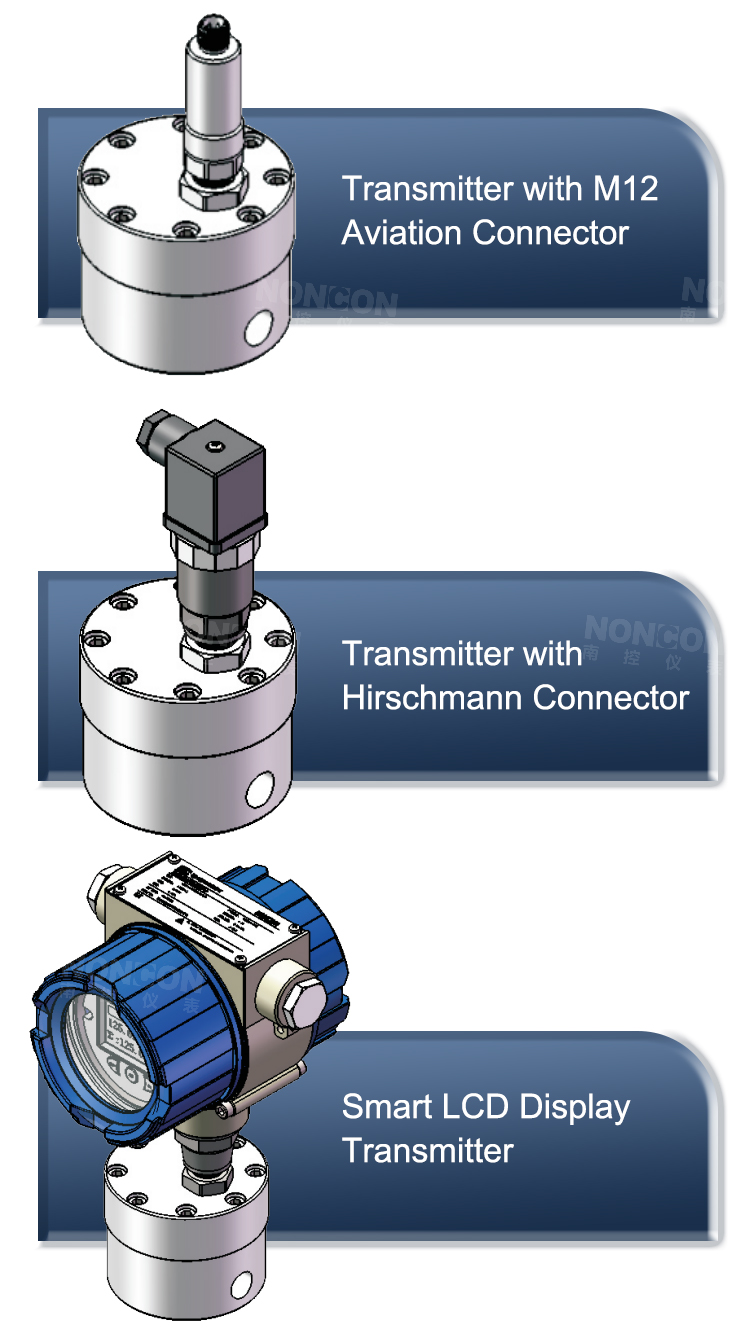

Transmitters of gear flow meter

Technical Parameters

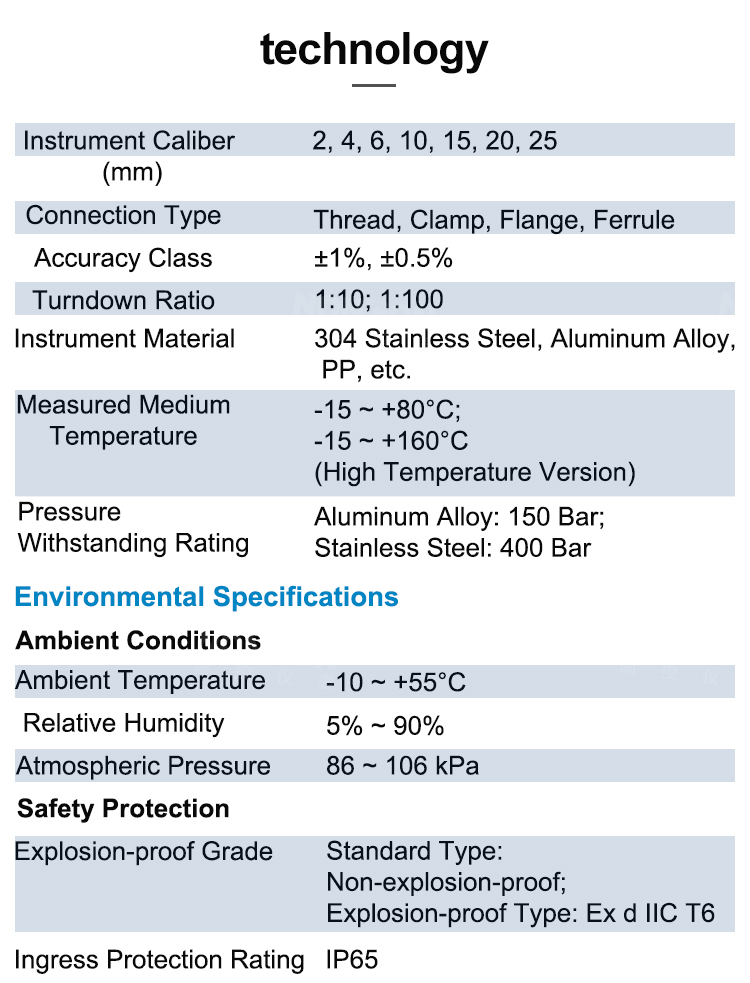

Parameters of gear flow meter

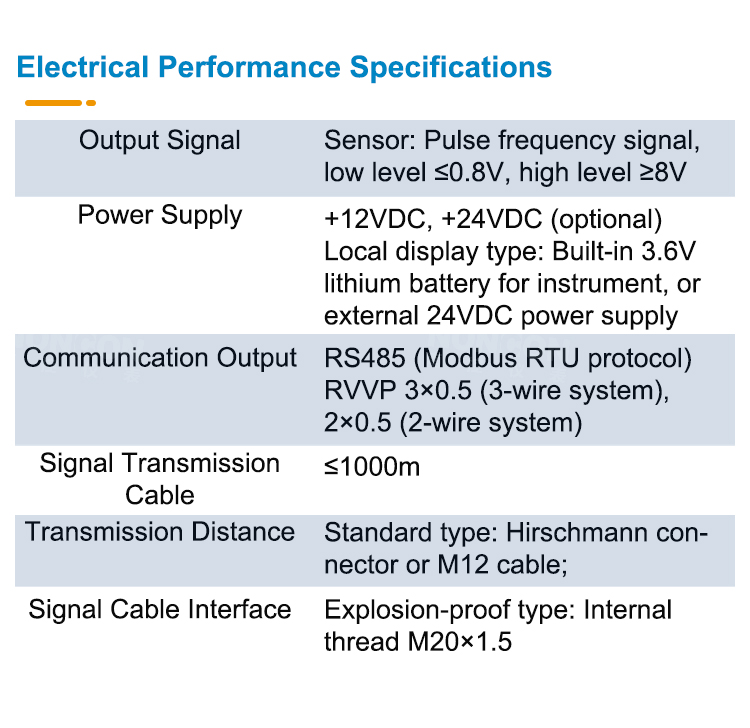

Electrical performance of gear flow meter

Dimension drawings.

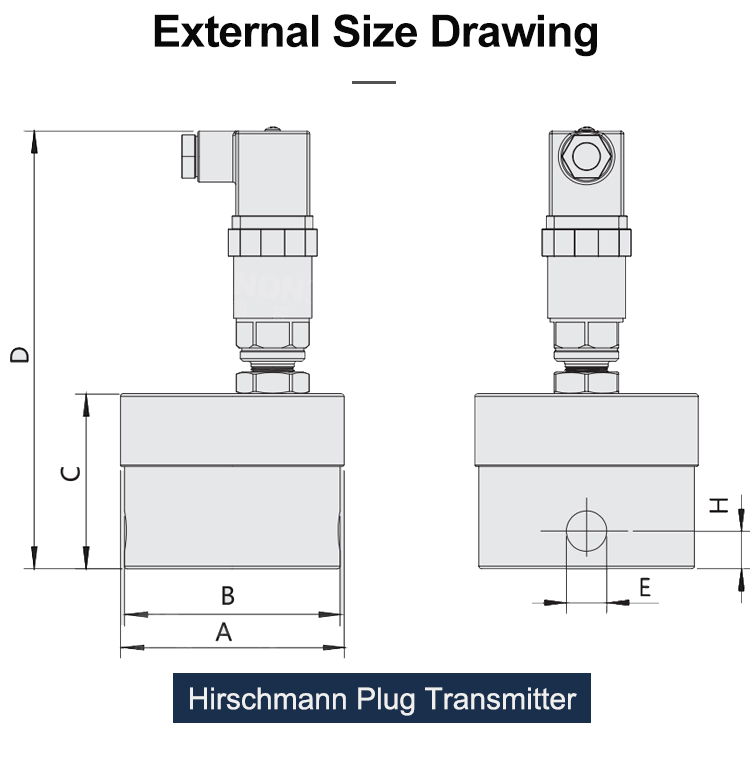

External size drawing of gear flow meter

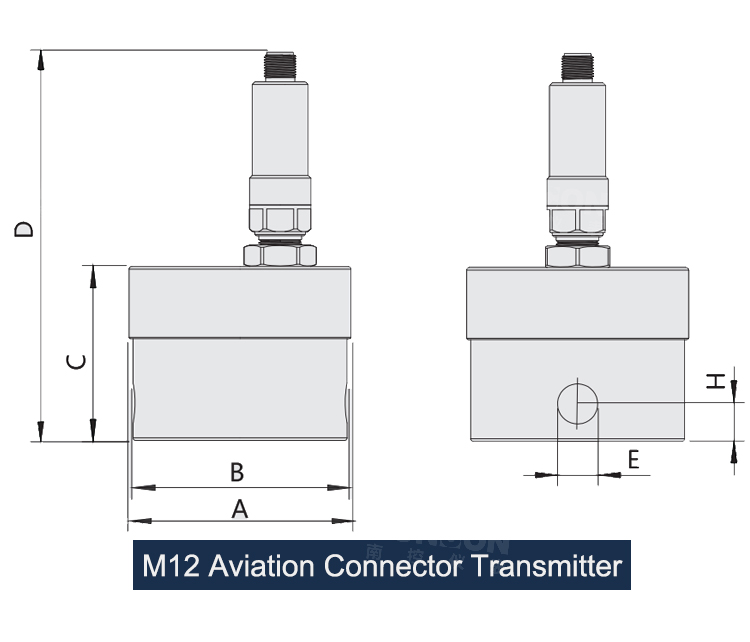

M12 connector drawing of gear flow meter

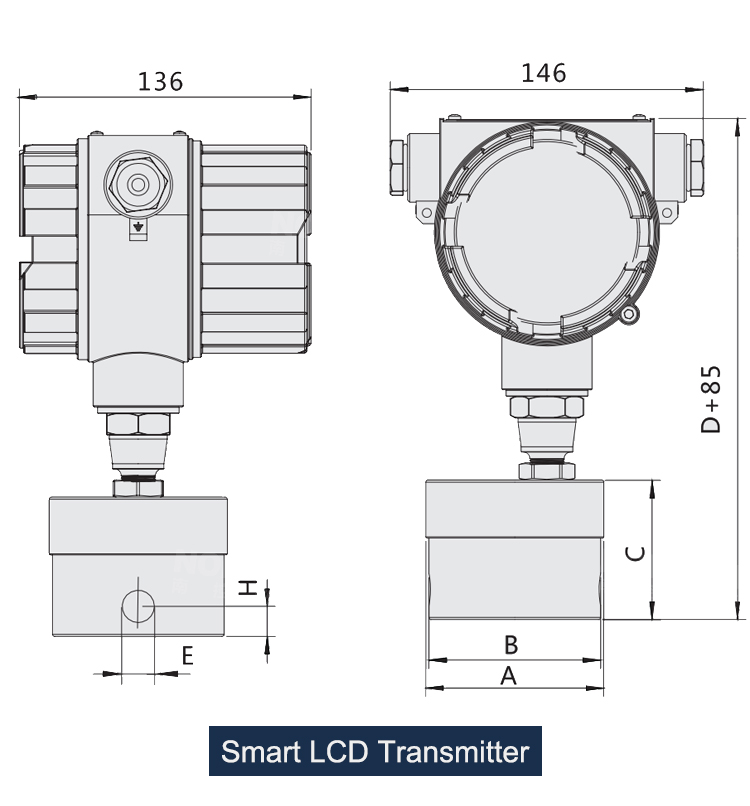

LCD Display transmitter drawing of gear flow meter

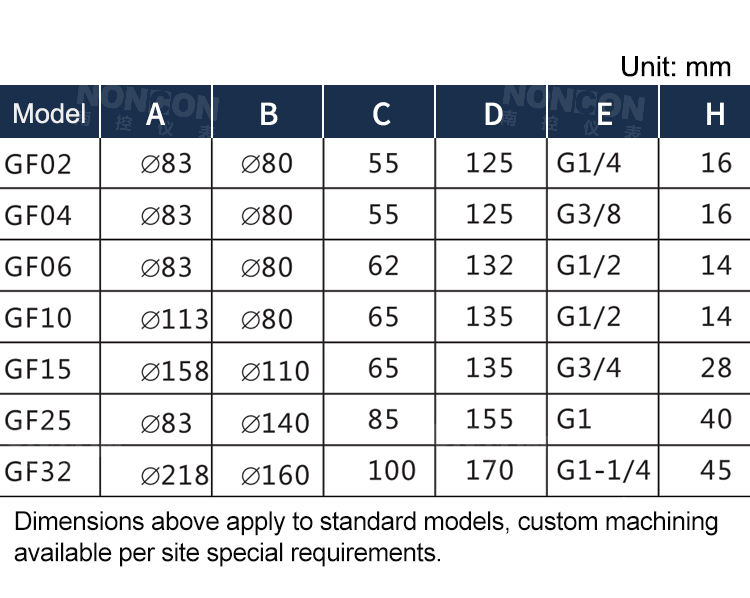

Dimension of different models of gear flow meter

Type Selection Guide

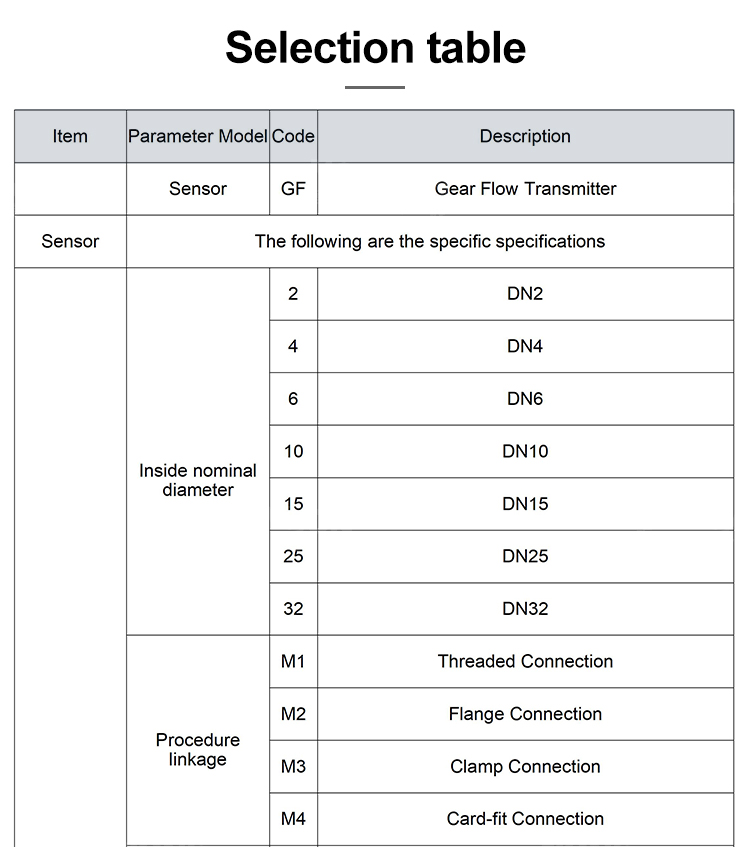

Type Selection Guide 1 of gear flow meter

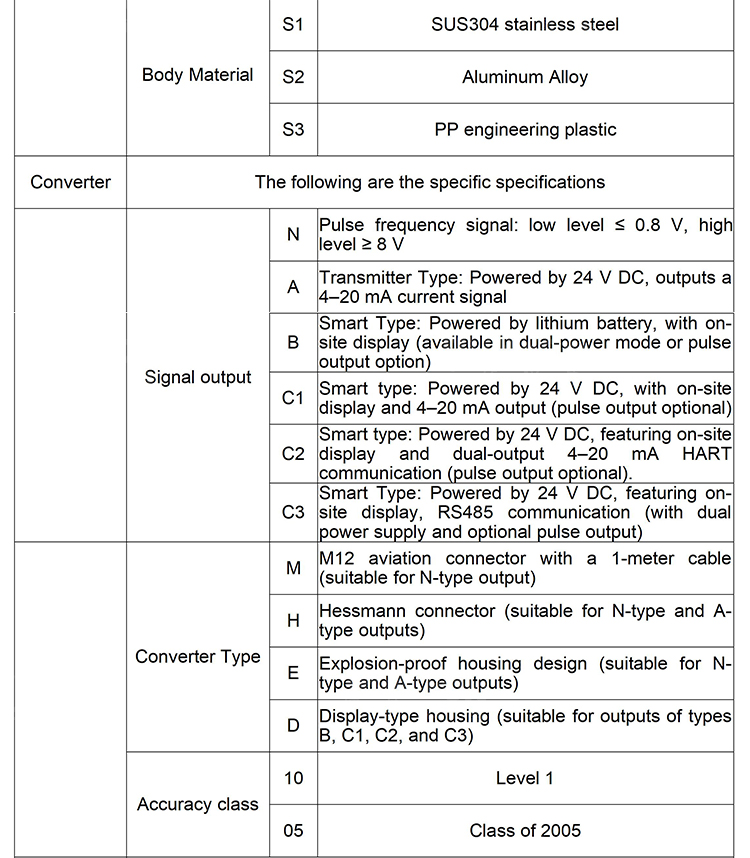

Type Selection Guide 2 of gear flow meter

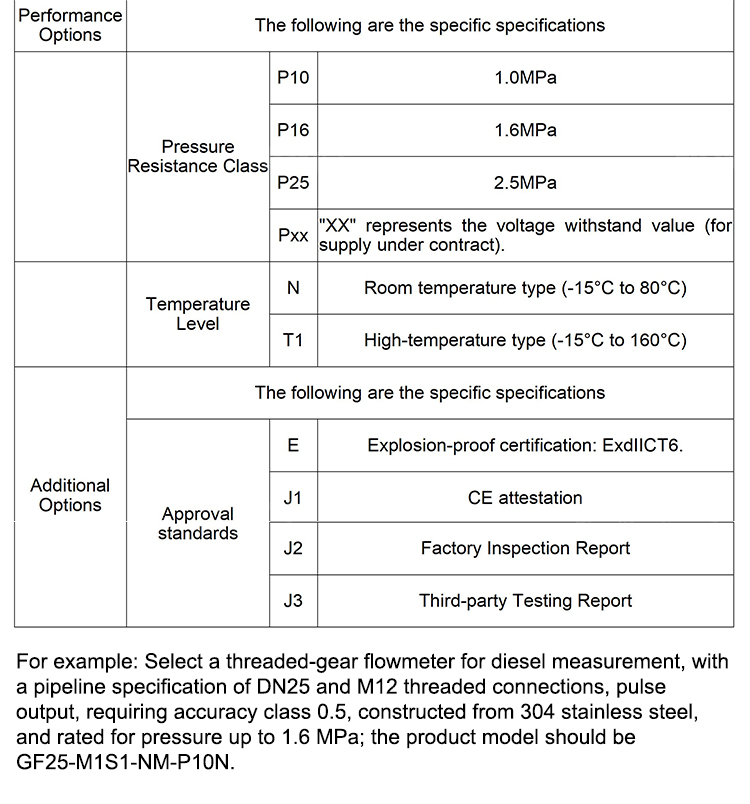

Type Selection Guide 3 of gear flow meter

Thank you for your reading. We are NONCON flow meter who have worked in this industrial flow metering for 20 years. Will provide you good solution, product and service!

Would you please tell us more information about your site, so we will be able to provide accurate offer. Thanks again!
