LC Digital Oval Gear Flow Meter

LC series oval gear flow meter is a direct reading accumulative meter. It is a volumetric Flow meter that measures the summation of liquid flow through the pipeline. Can be widely used in petroleum, chemical, medical and health departments of the flow measurement.

Product Origin:
China
Shipping Port:
Huangpu port
Lead Time:
Spot
MOQ:
1

Product Details

Instrument characteristics

▪High accuracy, wide flow range and good repeatability;

▪The spiral rotor has uniform rotation, small vibration and long life;

▪It is not sensitive to the change of the viscosity of the tested liquid, especially suitable for the measurement of the liquid with higher viscosity;

▪Simple structure, small size and light weight;

▪Easy to install, no straight pipe segments need to be installed before the table.

Type selection coding

Table 1

Model					Description
LC-	¨/	¨	¨	¨	Description
Diameter	10				10mm
	15				15mm
	20				20mm
	25				25mm
	40				40mm
	50				50mm
	80				80mm
	100				100mm
	150				150mm
	200				200mm
Instrument type		1			Standard type
		2			High temperature type
		3			High viscosity type
Instrument material			1		Cast iron
			2		Cast steel
			3		Stainless steel
Signal output mode				1	No output
				2	Pulse output
				3	4-20mA output
LC-	50/	1	1	1	Selection example

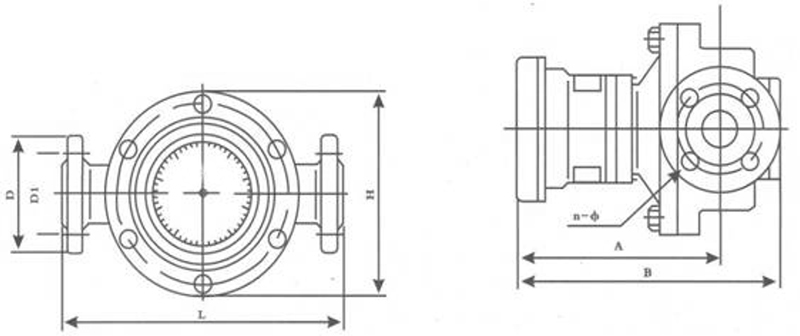

Shape size diagram

Fig.2

Profile dimension of oval gear flowmeter

Table 2

Nominal diameter	Instrument material	L	H	B	A	D	D1	n (number)	ɸ
DN10	Cast iron	150	100	210	165	90	60	4	14
DN15	Cast iron	170	118	226	175	95	65	4	14
	Cast steel	200	138	232	180	105	75	4	14
	Stainless steel	245	120	226	172	95	65	4	14
DN20	Cast iron	200	150	238	180	105	75	4	14
	Cast steel	250	164	220	160	125	90	4	18
	Stainless steel	236	150	238	225	105	75	4	14
DN25	Cast iron	260	180	246	194	115	85	4	14
	Cast steel	300	202	252	185	135	100	4	18
	Stainless steel	287	195	246	232	115	85	4	14
DN40	Cast iron	245	180	271	200	145	110	4	18
	Cast steel	300	202	293	208	165	125	4	23
	Stainless steel	265	178	349	265	145	110	4	18
DN50	Cast iron	340	250	372	285	160	125	4	18
	Cast steel	384	262	394	312	175	135	4	23
	Stainless steel	265	178	349	265	160	125	4	18
DN65	Cast iron	420	325	433	360	195	160	8	18
DN65	Stainless steel	365	260	436	319	180	145	4	18
DN80	Cast iron	420	325	433	360	195	160	8	18
DN80	Cast steel	450	337	452	332	210	170	8	23
DN100	Cast iron	515	418	458	380	220	180	8	18
DN100	Cast steel	555	442	478	310	250	200	8	25
DN150	Cast iron	540	510	557	400	280	240	8	23
DN150	Cast steel	540	510	557	347	300	250	8	26
DN200	Cast iron	700	650	720	476	335	295	12	23
DN200	Cast steel	650	650	720	476	360	310	12	26
